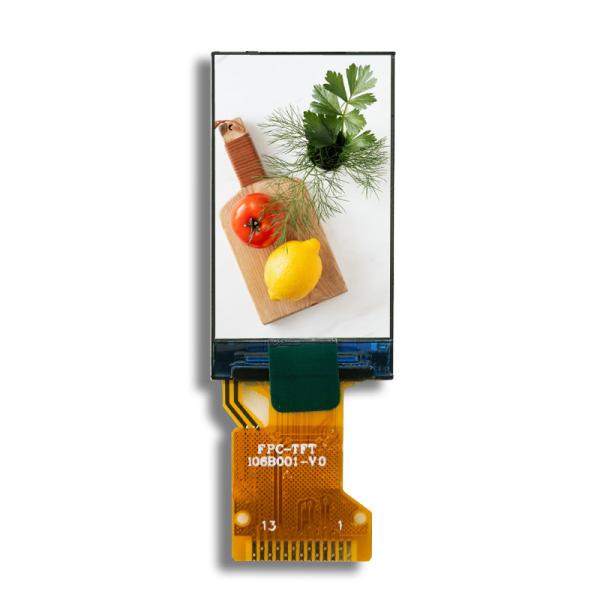

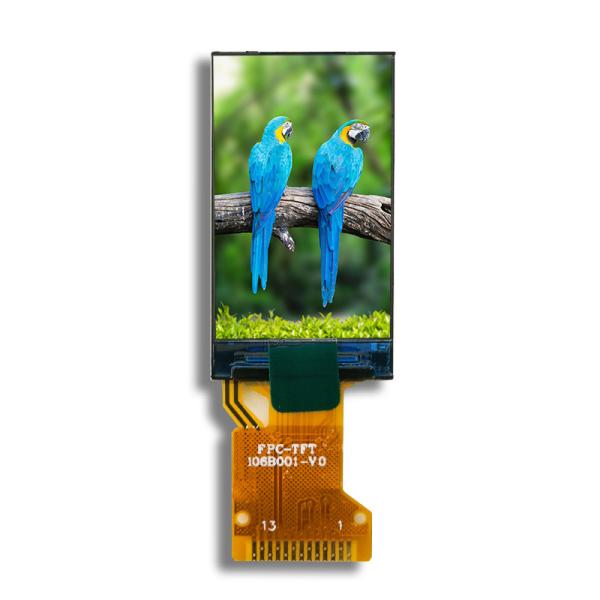

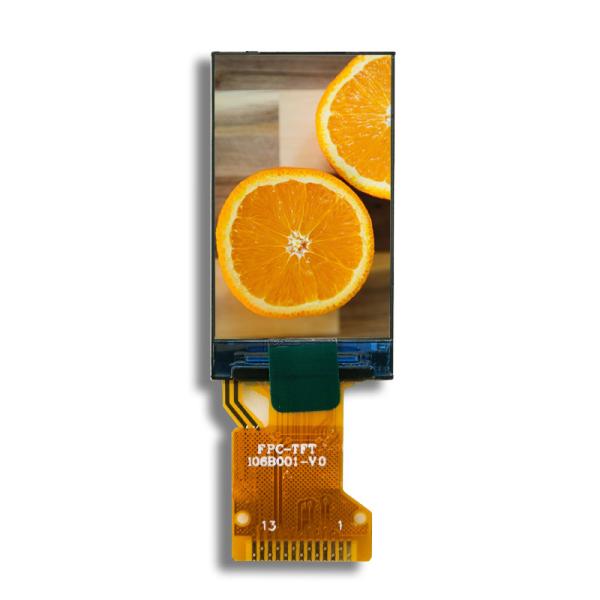

1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface
Specifications
Brand Name :
Genyu
Model Number :
GY-TFT106B001
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
1.06 inch(diagonal)
LCD Resolution :
96x160 dots
Driver IC :
ST7735S
Interface :
4SPI
FPC :
13pin
Description

1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface

1. Display Type:

  • TFT (Thin-Film Transistor) LCD: This type of screen uses thin-film transistors to control each individual pixel, offering better color reproduction, sharper images, and faster refresh rates compared to older passive matrix LCDs. TFT displays are known for their ability to render full-color images with relatively high resolution for small displays.

2. Backlighting:

  • TFT displays usually have LED backlighting to illuminate the screen, making it visible in various lighting conditions. The backlight can be either white or RGB depending on the display.

3. Interface:

  • SPI (Serial Peripheral Interface): Many small TFT displays use SPI to communicate with microcontrollers or processors. This interface allows for fast data transfer while requiring fewer pins.

4. Power Consumption:

  • TFT displays are relatively power-hungry compared to monochrome LCDs, but they offer a good balance between power consumption and visual quality for small devices.

  • Power consumption typically depends on the brightness of the backlight, screen content, and the interface speed.

Basic Parameters:

NO. ITEM SPECIFICATIONS
1 Product Name 1.06 Inch TFT LCD
2 LCD Type TN
3 Resolution
96x160 dots
4 Working Voltage 2.8V (Typ.)
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 13PIN, soldering type
8 Pitch 0.7 mm
9 Driver IC(COG) ST7735S
10 Interface 4 SPI
11 Backlight Type 1-LED, White
12 Power Consumption VF=3.0V, IF=20mA
13 Outline Dimension
16.12(H)*29.76(V)*1.52(D) mm
14 Active Area
13.82*23.04 mm

1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface

TFT Screens ( 0.96 inch~10.1 inch )

We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.

Applications:

  • Wearables: Smartwatches, fitness trackers, or health monitors.

  • Embedded Systems: DIY electronics, handheld devices, Arduino or Raspberry Pi projects, custom display panels for IoT applications.

  • Portable Devices: Small handheld gadgets like digital thermometers, small music players, or status screens for IoT systems.

  • Custom HMI is used in embedded applications to display information or interact with users in a compact form.

1.06 Inch TFT LCD Screen 96x160 Pixels TN Normal White 13pin SPI Interface

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
