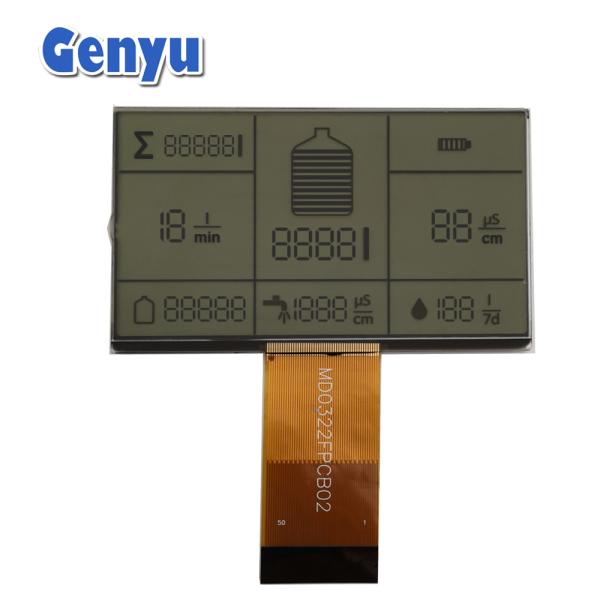

3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect
Specifications
Brand Name :
Genyu
Model Number :
GY8492A-5HPBS-01
Certification :
RoHS, ISO9001:2015
Place of Origin :
China
MOQ :
1200 pieces
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
500K pcs/ Month
Delivery Time :
38-40 days
Packaging Details :
Foam & Carton Boxes
LCD Type :
TN(Gray), positive
Viewing Angle :
12 O'clock
Operating Temperature :
0~+50℃
Connector :
FPC
Voltage :
3.0V
Description
Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect 3.0V

Twisted Nematic Technology:

  • The "Twisted Nematic" part of the name refers to the liquid crystal technology used. In this configuration, the liquid crystals are arranged in a way that, when no voltage is applied, they twist light passing through them.
  • When a voltage is applied, the crystals untwist and alter the light's polarization, effectively turning the segment on or off to create the desired characters or symbols.

Segment-based Display:

  • TN segment LCDs typically consist of individual segments (often 7-segment or 14-segment) arranged to form numbers, letters, or other characters.
  • Each segment can be independently controlled to either be in an "on" (lit) or "off" (unlit) state, allowing for the formation of various alphanumeric characters.

Detailed Parameters:

NO. ITEM SPECIFICATIONS
1 Model Number GY8492A-5HPBS-01
2 LCD Type TN positive, transmissive
3 Viewing Angle 12 O'clock
4 Drive Method
1/4 Duty, 1/3 Bias, 3.0V
5 Operating Temperature 0~+50℃
6 Storage Temperature -10~+60℃
7 Connector FPC, 50 numbers
8 Outline Dimension 93(W)* 56(H)* 2.8(T) mm
9 LCD View Area 90(W)* 50(H) mm

3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect

Common Applications:

  • Wristwatches: Used in inexpensive digital watches.
  • Calculators: Used in basic pocket calculators and other simple devices.
  • Industrial Instruments: Applied in various devices that require simple numeric or alphanumeric displays.
  • Home Appliances: Sometimes used for clocks, timers, or temperature readouts.

3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 3-10 pcs of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-40 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
