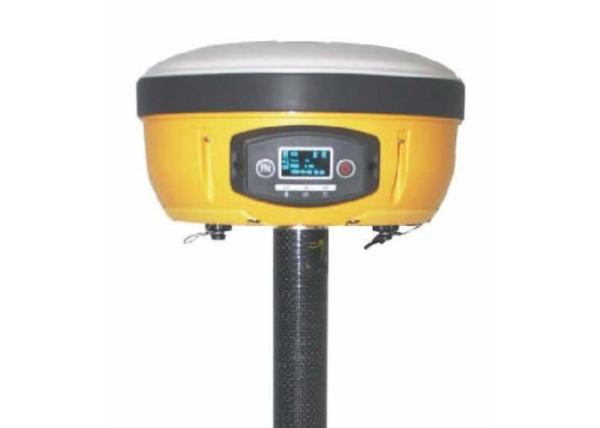

Yellow 372 Channels G9 GNSS RTK Receiver
Yellow 372 Channels G9 GNSS RTK Receiver
Yellow 372 Channels G9 GNSS RTK Receiver
Yellow 372 Channels G9 GNSS RTK Receiver
Specifications
Brand Name :
NO BRAND OR OEM
Model Number :
G9
Certification :
CE CERTIFICATE
Place of Origin :
CHINA
MOQ :
1PC
Price :
USD
Payment Terms :
T/T, L/C
Delivery Time :
15 Working Days
Packaging Details :
Package in carton
Color :
Yellow/Black
Singal received :
GPS/GLONASS/GALILEO/Beidou
Screen :
128*62 OLED Screen
Accuary :
H： 10mm+1ppm RMS ；V：5mm+1ppm RMS
Memory :
256MB internal with up to 32GB
Material :
GE nano material shell
Software :
E-survey
Waterproof :
IP67
Size :
184mm*96mm
Weight :
8kg（include case and battery）
Description

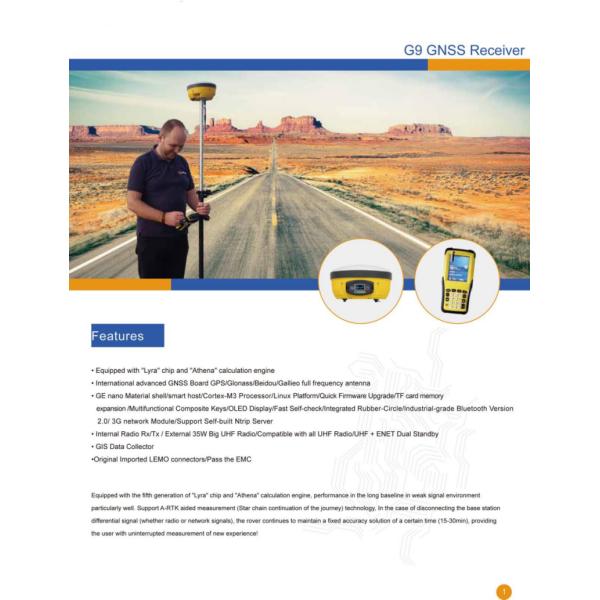

G9 GNSS 372 channels RTK receiver with e-survey software receive GPS/GlONASS/GALILEO/Beidou singals

Specifications

Signal Tracking

372 channels

 Advanced multipath mitigation technology
Low noise carrier phase measurement
Singal received GPS/GLONASS/GALILEO/Beidou
SBAS: WASS/EGNOS/MASAS
Performance Spec. cold start: <50s warm start:<30s
Initialization time:typically<10s
Signal reacquisition:<2s
Postioning Spec. Post Processing Static Horizontal:2.5mm+1ppm RMS
Vercial:5mm+1ppm RMS
Real time kinematic Horizontal:10mm+1ppm RMS
Vercial:20mm+1ppm RMS
SBAS:typically<1 m 3D RMS
Communications 1 serial port (7 pin Lemo)
1 seial port (5 pin Lemo)
2 TNC antenna
Baud rates up to 115,200bps Radio modem Intergrated GSM/GPRS modem
Intergrated Bluetooth V2.0 class 2
Radio modem internal Rx/Tx : 410-470 Mhz
External Tx : 5W 35W adjustable
Communication protocol Transparent, TT450S,South,TrimMask III(19200),South 19200
Position data outputs,5hz Standard,10hz/20hz Optional
Data Format Data inputs/outpus Correction data I/O: RTCM 2.X, 3.X, CMR,CMR+
Position data outputs ACSII: NMEA-0183
Binary update to 50hz
Physical Size( W*H): 184mm*96mm Weight:1.2kg(include battery)
Button:FN + Power Display:128*62 OLED Screen
Environmental Operating temperature: -40℃+65℃(-40°F to 149°F)
Storage temperature: -40℃ to + 75℃(-40°F to 167°F)
Humidity:100% condensation
Waterproof and dust proof:IP67 protected from temproary immersion to depth of 1 meter,floats
Shock:survives a 2 meter drop on to concrete
Electrical Input Voltage:9-18 VDC
Li-ion battery capacity:2 x Rechargeable and Removable 3400mAh Lithium-ion Battery up to 10 hours typically
Memory:256MB internal with up to 32GB pluggeable memory card
Software E-survey field data collection software

Yellow 372 Channels G9 GNSS RTK Receiver

Yellow 372 Channels G9 GNSS RTK Receiver
