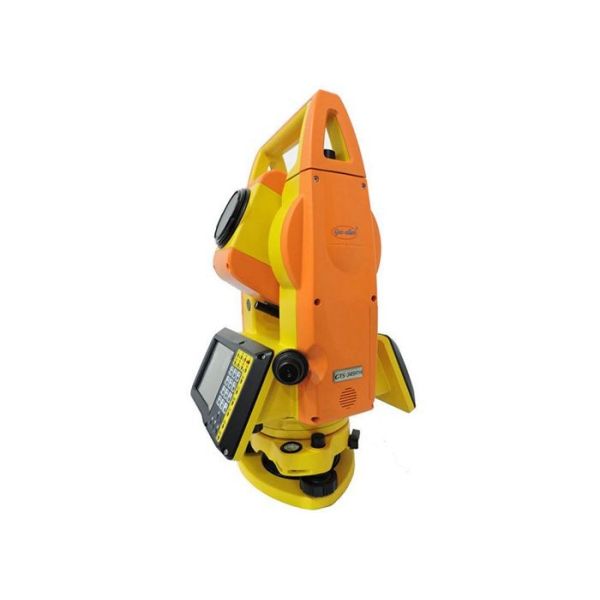

2 Prismless 600m IP54 Total Station Survey Instrument
2 Prismless 600m IP54 Total Station Survey Instrument
Specifications
Brand Name :
GEOALLEN
Model Number :
GTS342R6A
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs
Delivery Time :
5-8 work days
Packaging Details :
Plastic case & carbon box
colour :
orange/yellow
screen :
3.5" colour touch screen with pen
battery :
rechargeable lithium battery
water/dust proof class :
IP54
accuracy :
2"
prismless range :
600m
compensator :
dual axises compensator
special function :
one touch measurement
Description

GTS 342R6A 2" serial prismless 600m total station for survey and construction

Specifications

GTS-342R6A
DISTANCE MEASURING
Max. Distanceone prism3.5KM
(good weather)reflecting paper1KMm (based on different condition)
　prismless600m (based on different condition)
displayMax:999999.99M Min:1MM
accuracy2+2PPM(with prism), ＜100M,3+2PPM,＞100M,5+5PPM(no prism, fine)
measuring timefine: ＜1.5s, tracing: 0.1s,repeat:＜0.3s
wether constance changeautomatic change after input constance
prism constance changeautomatic change after input constance
ANGLE MEASURING
measurment wayabsolute encode
Crosshair plate diam.79MM
Min. Reading1" optional
accuracy2"
VERTICAL COMPENSATOR
systemdual axis liquid-electric sensor
working range+/-4'
precision1"
LEVEL SENSITIVITY
plate level30"/2mm
cicular level8'/2mm
TELESCOPE
imageerect
length of telescope152MM
Diam. of objective len'stelescope:45mm/distance measure:47mm
Magnificant30*
Field of view1° 30'
Min. focus1.3m
DISPLAY
typedual face
POWER
sourcechargeable lithium battery
voltageDC7.4V
continues working time8 H
MEASURMENT AND WEIGHT
dim.L216*W200*H350 MM
weight6.0KG




















2 2
600m reflectorless measurement Laser pointer, Data transfer and storage Flash disk
easy to find target and SD card, Mini USB

2 2
Bluetooth transportation Concentrated ball bearing
BT 4.0, easy connect to data collector, etc Solve axis jam, more stable and reliable

2 2
T-P sensor, automatic correction Totally new design for battery

2
EDM Trigger Key
Quick Measure Key locates on the side cover, which avoids any possible torque during the angle measurement.
