Specifications
Type :
Geomembranes
Warranty :
More than 5 years
After-sale Service :
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability :
3D model design, total solution for projects, Cross Categories Consolidation, Others
Application :
Office Building, Fish Farming Tank
Design Style :
Industrial
Place of Origin :
Shandong, China
Brand Name :
YBYG
Model Number :
Y1
Product Name :
Hdpe Geomembrane Liner
Color :
Black
Thickness :
0.1-4.0mm
Length :
50m-200m/roll (as Request)
Width :
1m~9m
Certification :
ISO9001/ISO14001/BV/SONCAP
MOQ :
1000 Square Meter
Package :
Follow Client's Request
Usage :
landfill
Packaging Details :
STANDARD PACKING (WOVEN PACKING ) OR OEM
Port :
QINGDAO
Supply Ability :
300000 Square Meter/Square Meters per Month
MOQ :
5000 square meters
Price :
$0.30 - $6.00/square meters
Description

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

We are one of the largest firms in industry, involved in manufacturing and exporting a comprehensive range of HDPE Geo Membranes. We use best grade raw materials and sophisticated technologies in fabrication of these membranes, which are procured from genuine and certified vendors of the industry.

Benefits of Polypropylene HDPE:

Flexibility
Resistance to low temperatures
Long term UV stability

Product DescriptionProduct Description

a .the different color geomembrane

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design
b .the smooth surface geomebrane
0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design
c .the point surface geomebrane
0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design
Specification
Specification
Thickness:
1.0~2.5mm,
Width
4m/6m/8m in roll width
length
as per client's request and the engineering design.
Material
100% virgin HDPE
color
black ,white ,OEM
packing
standard packing
0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

Item

Index

Thickness mm

0.75

1.00

1.25

1.50

2.00

2.50

3.00

1

Density g/cm3

>=0.940

2

Tensile yield strength(longitudinal and transverse)N/mm

>=11

>=15

>=18

>=22

>=29

>=37

>=44

3

Tensile strength at break(longitudinal and transverse)N/mm

>=20

>=27

>=33

>=40

>=53

>=67

>=80

4

Yield elongation(longitudinal and transverse)%

>=12

5

Elongation at break(longitudinal and transverse)%

>=700

6

Right angle tear load(longitudinal and transverse)N

>=93

>=125

>=160

>=190

>=250

>=315

>=375

7

Anti puncture strengthN

>=240

>=320

>=400

>=480

>=640

>=800

>=960

8

Tensile load stress cracking(Incision constant load extension method)

300

9

Carbon black content%

2.0~3.0

10

Carbon black dispersion

In 10 dates, level 3 shall no more than 1, level 4 and level 5 is not allowed

11

Oxidation induction time(OIT)min

Oxidation induction time under normal pressure>=100

Oxidation induction time under high pressure>=400

12

85℃ heat aging(OIT Rretention rate after 90 days under normal pressure)%

>=55

13a

Anti-UV(OIT Rretention rate after 1600h Ultraviolet radiation)

>=50

Note: If the thickness specification not listed in the table, its technical index shall be according to interpolation method

You can choose each one to test of OIT Rretention rate under normal pressure or high pressure of No.11 and 13 listed in the table

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

Features:
Easy to install

Water resistant

Durable

Polythene Geomembrane
0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design
Packing & Delivery

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Property

1.Good flexibility.
2.For service temperature range: -60℃--+120℃
3.Corrosion resistance, aging resistance.
4.Excellent environmental stress cracking resistance property.
5.High tensile strength and elongation.
6. It has the larger friction coefficient and good anti-sliding function, and is very suitable for the slopes of landfill or
steeply slope and vertical anti-seepage applications
0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

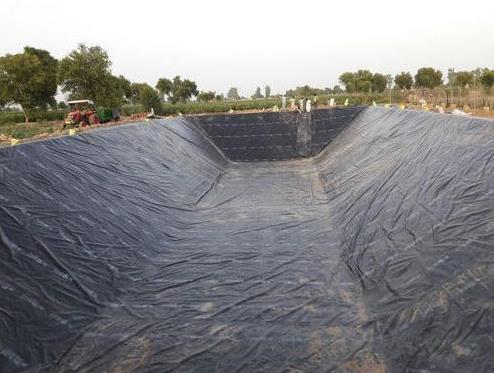

Application:
1. water conservancy projects&Municipal environmental projects ,

2. Landfill

3. Pond liner, tank linings, reservoirs, ponds,

4. Waste water treatment

5. solid waste landfills

6. Mining, coal ash pond, animal waste containment.

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

contact info

0.75mm HDPE PVC Geomembrane Circular Tanks for Fish Farming in Office Building Design

Contact: RUBY
Phone: +8617806228052
Add: Laicheng Area, Jinan city, Shandong Province, China.
Please feel free to contact me in anytime !
