3C Seismic Node Portable system Electronic For Geothermal Exploration
3C Seismic Node Portable system Electronic For Geothermal Exploration
3C Seismic Node Portable system Electronic For Geothermal Exploration
3C Seismic Node Portable system Electronic For Geothermal Exploration
Specifications
Brand Name :
Gold
Model Number :
3C
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1 set per 5 days
Delivery Time :
5-8 work days
Packaging Details :
carton
Product Name :
3C Seismic Node
Power :
Electronic
Weight :
1450g
Working temperature :
-40℃ to 70℃
Battery life @25°C :
40 days
Optional detector :
5Hz
DC resistance :
1850±5%
Natural frequency :
5±7.5%
Description

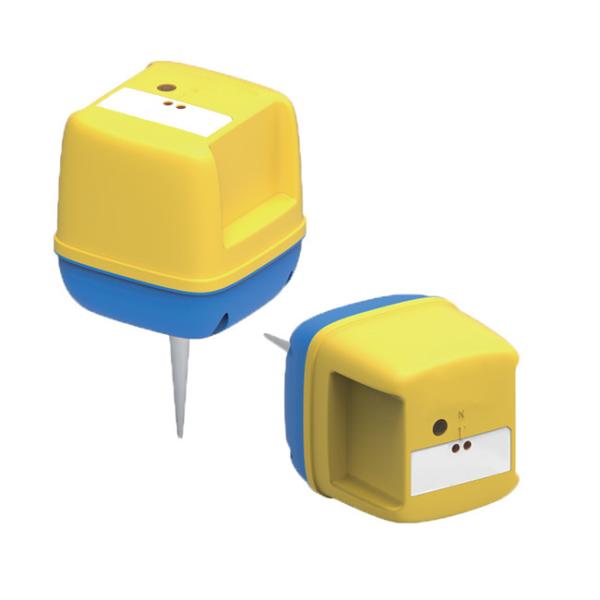

3C Seismic Node For Geothermal Exploration

Features for our seismic node

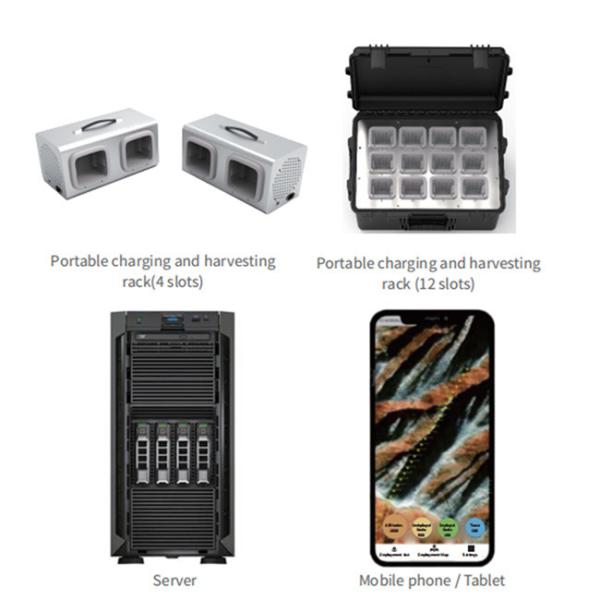

A low-cost and portable seismic node system, capable of managing, charging and harvesting data from up to 30,000 nodes in field. The 3C Seismic Node system has enabled increased productivity, rapid delivery, reduced HSE risk and ease of use while delivering higher-quality results for subsurface imaging.

Ideal item for deep geothermal exploration, and light enough for one person to carry.Cheap enough that we can be very competitive and win more work in particular in the geothermal sector, and with a high accuracy equivalent or superior to other systems.

Application

1. Geothermal exploration

2. CCUS exploration and monitoring,

3. Mining,

4. Archaeology,

5. Civil engineering,

6. Oil & gas,

7. Seismic risk,

8. Passive seismic and microseismic.

Technical Specification

Instrument index
Parameter index
Number of channels 3
Sampling rate 0.25ms,0.5ms,1ms,2ms,4ms
Preamplifier gain 0-24dB(6db step)
Low cut filter 1Hz, go to DC or off
Anti-aliasing filter 206.5Hz@2ms (82.6% Nyquist frequency) selectable maximum phase or minimum phase
Maximum input @ 0db 2.5VpeaK
Equivalent input noise@12dB 0.16uV@2ms
Instantaneous dynamic range@12dB 128.8dB@2ms
Total dynamic range 150dB
Time accuracy ±10us
Internal storage expandable from 32GB to 128GB
Built-in GPS GPS, BDS (current reception) for timing and positioning

Product Image

3C Seismic Node Portable system Electronic For Geothermal Exploration3C Seismic Node Portable system Electronic For Geothermal Exploration3C Seismic Node Portable system Electronic For Geothermal Exploration3C Seismic Node Portable system Electronic For Geothermal Exploration
