Wireless Blasting Vibration Measuring Instrument With 3 Channels
Wireless Blasting Vibration Measuring Instrument With 3 Channels
Wireless Blasting Vibration Measuring Instrument With 3 Channels
Wireless Blasting Vibration Measuring Instrument With 3 Channels
Specifications
Brand Name :
Gold
Model Number :
GD20-N
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1 set per 5 days
Delivery Time :
5-8 work days
Packaging Details :
carton
Product Name :
Blasting Vibration Measuring Instrument
Range :
0.0017~35cm/s
Resolution :
0.0001cm/s
Channel :
3
A/D accuracy :
0.000021mm (24Bit)
Time accuracy :
0.01ms (100k sps)
Precision :
±2%
Application :
Underground blasting vibration detection
Description

Wireless Blasting Vibration Measuring Instrument

Wireless blasting vibration measureing instrument is internet remote monitoring of blasting vibration, detection of blasting vibration.

Performance

Channel 3 channels, standard vibration speed sensor (optional acceleration)
Range 0.0017~35cm/s,
Resolution 0.0001cm/s
Precision ±2%
Frequency Range 2~450Hz(Ideal smooth response between 1-500Hz)
A/D accuracy 0.000021mm (24Bit)
Time accuracy 0.01ms (100k sps)

Waveform record

Record mode: manual, single, loop

Vibrating contact valve:0cm/s~3.5cm/s

Record stop: Recording continues until the set length is stopped

Recording time: 1s~99s, 1 second step can be set continuously

Negative delay time: 0 s~0.25s, continuous setting

Storage capacity: 10240 files with a duration of 4s

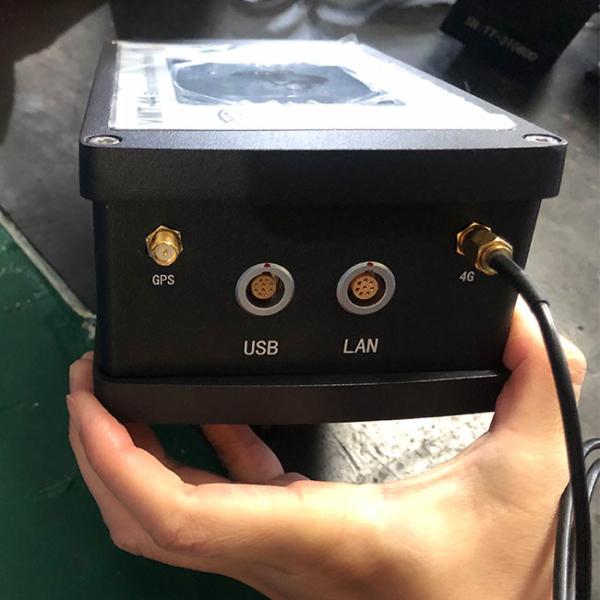

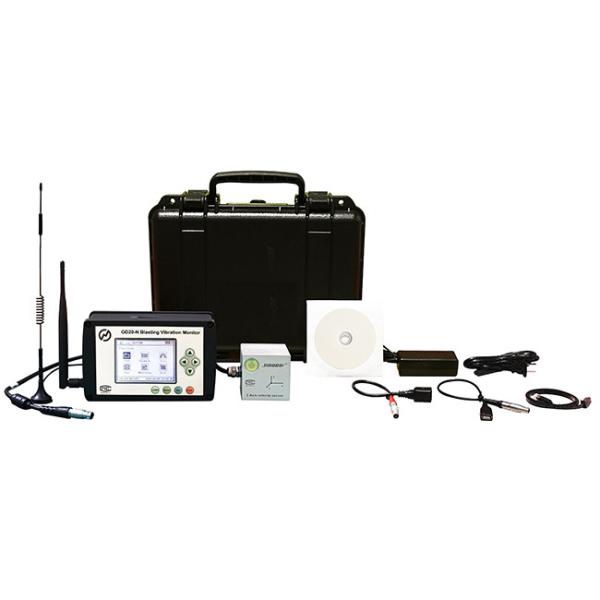

Product Image

Wireless Blasting Vibration Measuring Instrument With 3 ChannelsWireless Blasting Vibration Measuring Instrument With 3 ChannelsWireless Blasting Vibration Measuring Instrument With 3 ChannelsWireless Blasting Vibration Measuring Instrument With 3 Channels
