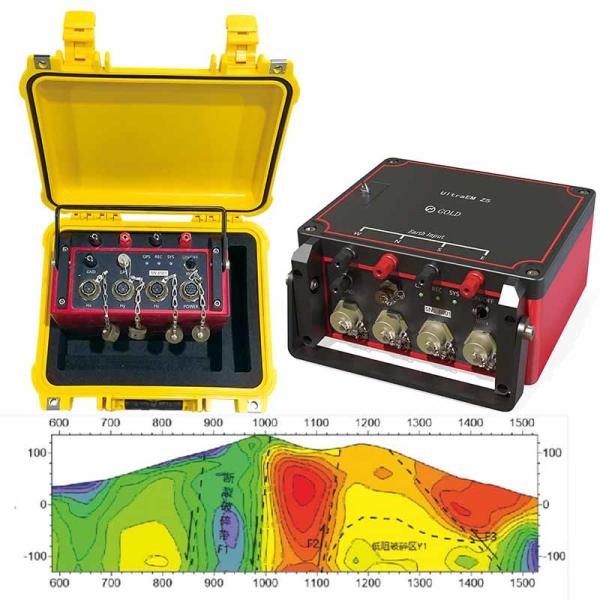

2D and 3D MT/AMT/CSAMT/CSHMT Magnetotelluric Geophysical Electromagnetic Survey Equipment for Underground Antimony Mineral Exploration

The Geophysical Magnetotelluric Survey Equipment is an effective tool for investigating wells beneath the ground. Its strong and resilient design ensures that it works successfully in difficult conditions. Because of its versatility, survey design and deployment can be used to map mineral systems 50 kilometers deep, image deep structural controls down to 2000 meters, and provide drill planning solutions for surface exploration.

MAIN FEATURE

• Mixing modes of natural and artificial sources: Utilizes both natural (MT, AMT) and artificial (CSAMT, IP, TEM) electromagnetic sources, along with micromotion monitoring and seismic data recording.
• Observable tensors and scalars: Enables measurements of both tensor (2D and 3D geological features) and scalar (quick censuses) quantities.
• Portable on-site real-time imaging: Utilizes embedded real-time operating system and parallel hardware processing for full-band acquisition of optical and electromagnetic field spectrums. Enables real-time computation of resistivity and phase profiles.
• Efficient real-time parallel collection: Supports multiple sampling rates (24kHz, 2400Hz extraction recording, 150Hz, 15Hz continuous recording) for efficient and continuous electromagnetic observation.

APPLICATION

Underground water inspection	Energy resource prospecting	Mining and Mineral Exploration
Railway and bridge inspecting	Engineering geology	Geothermal field survey

TECHNICAL SPECIFICATION

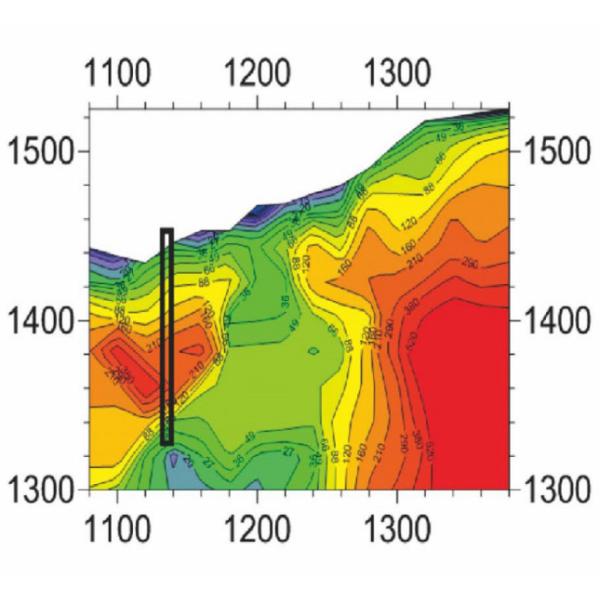

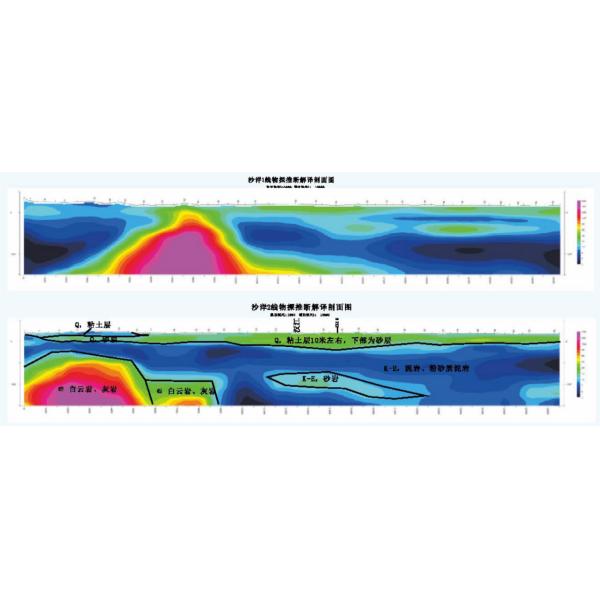

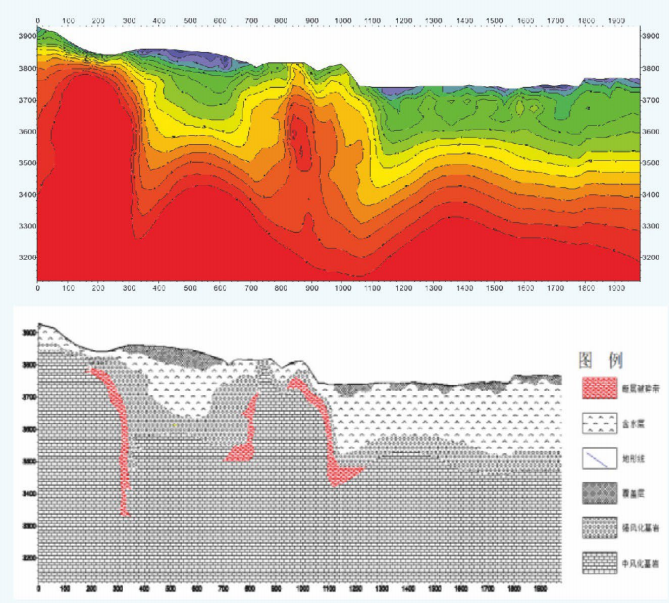

APPLICATION EXAMPLES

Mineral water exploration application

Shallow geothermal water search survey

Jianghan Plain Geological Survey

Highway Tunnel Exploration

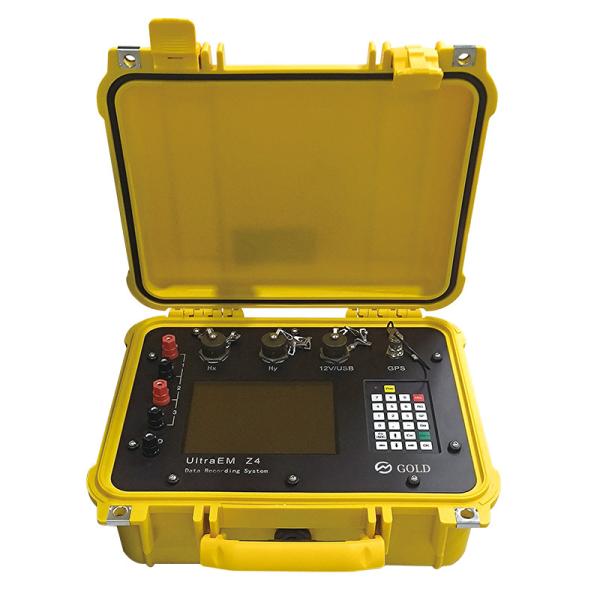

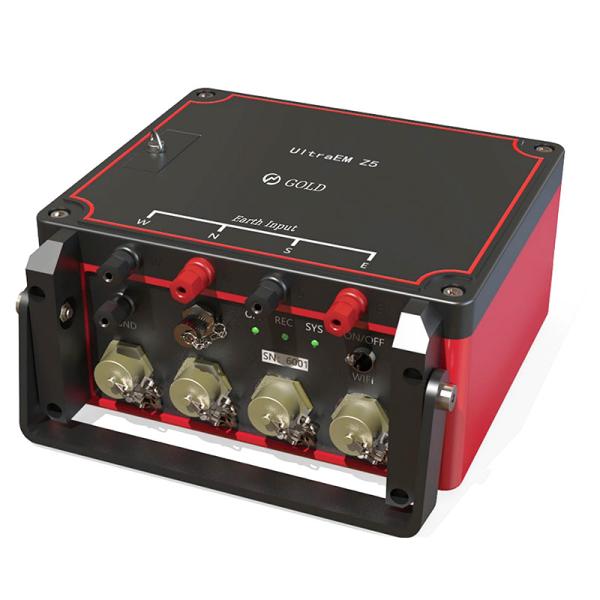

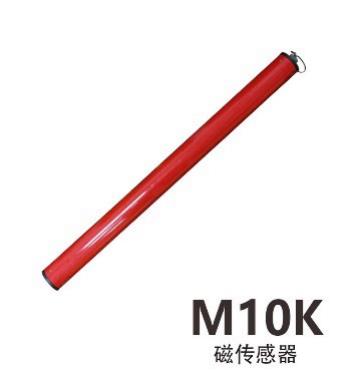

DATAILED IMAGES

PACKING

Safe and efficient packaging and transportation services. We prioritize item safety and use high-quality materials to minimize damage. Trust us for reliable and timely delivery, domestically or internationally. Your items are in good hands with our comprehensive solutions.

COMPANY

Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical instruments such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic instrument, magnetic instrument, borehole camera, borehole logger and drilling equipment ( core drill rig, water well drill rig,engineering drill rig, anchor drilling rig and so on. Also we supply the surveying equipment such as GPS, Total Station, Echo sounder and so on.
