Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X
Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X
Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X
Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X
Specifications
Brand Name :
Geosun
Model Number :
GS-130X Mobile LiDAR Scanning System
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30 SETS/Month
Delivery Time :
5-7 works days
Packaging Details :
Suit Case 450*365*200 mm
Range :
Short range 70 - 100 m
Application :
Smart City Construction
Feature :
Smart and Powerful lidar solution
FOV :
360 Degree
Description

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR

Geosun gAirHawk Series GS-130X LiDAR Scanning System

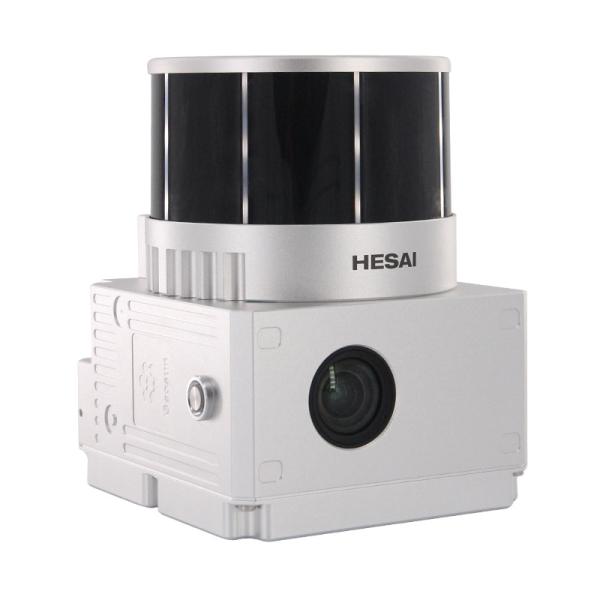

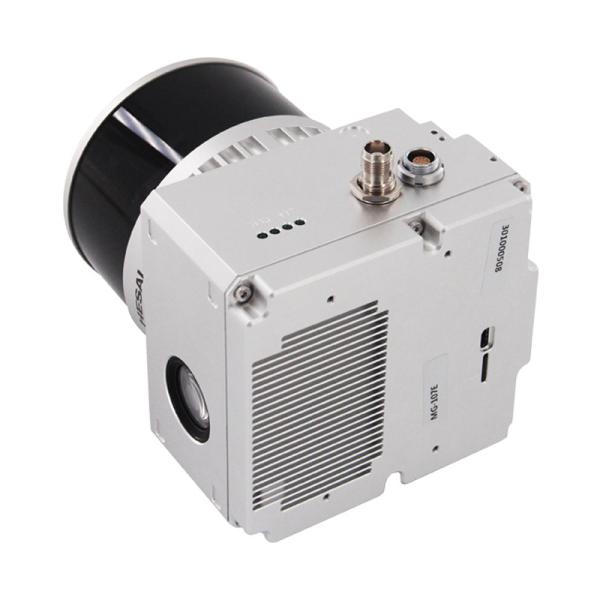

gAirHawk GS-130X is a kind of short range, compact LiDAR point cloud data acquisition system, integrated HESAI XT32-channel laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Application of mobile LiDAR mapping solution GS-130X
Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Free trial software of Mobile LiDAR Scanning System GS-130X

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation
Free trial test, achieve high precision

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Specficaiton of Mobile LiDAR Scanning System GS-130X

Mobile LiDAR gAirHawk GS-130X
Item Name System Parameters


GS-130X

Parameters

 Weight 1.26 kg
Measuring accuracy Less than 0.1m @120m
Working temperature -20℃~+65℃
Power range 12 V- 24 V
Consumption 10 W
Carrying Platform Drone and Vehicle
Storage 64 GB storage, maximum support 128GB TF card

Lidar Unit

 Measuring Range 0.3m-120m@10% Reflectivity
Laser class 905nm Class1 (IEC 60825-1:2014)
Channel 32-Channel
Range accuracy ±1cm (typical Value)
Scanning frequency 10HZ, 20HZ
data Double echo 640,000 Points/Sec
FOV 360°, adjustable
Laser sensor HESAI XT32
POS Unit Update frequency 200HZ
Heading accuracy 0.040°
Pitch accuracy 0.015°
Rolling accuracy 0.015°
Position accuracy ≤0.05m
GNSS signal type GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software POS software Output information: position, speed, attitude
Point cloud software Output point cloud data format: LAS format, custom TXT format
Camera (built-in) FOV 83 degree
Effective Pixel 26 Mega Pixel
Focal length(mm) 16

Package of Mobile LiDAR Scanning System GS-130X

Mobile LiDAR Scanning System GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X

Bridge Surveying Mobile Mapping Solution HESAI Mechanical LiDAR Geosun gAirHawk Series GS-130X
