Specifications
Brand Name :
Geosun
Model Number :
GS-260S Drone LiDAR Scanning System
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30 SETS/Month
Delivery Time :
10-15 works days
Packaging Details :
Suit Case 520*420*230 mm
Operation Efficiency :
4.5 km2 / single flight
Application :
Mapping & Survey
Beam :
20 Beam
Laser brand :
HESAI Pandar
Description

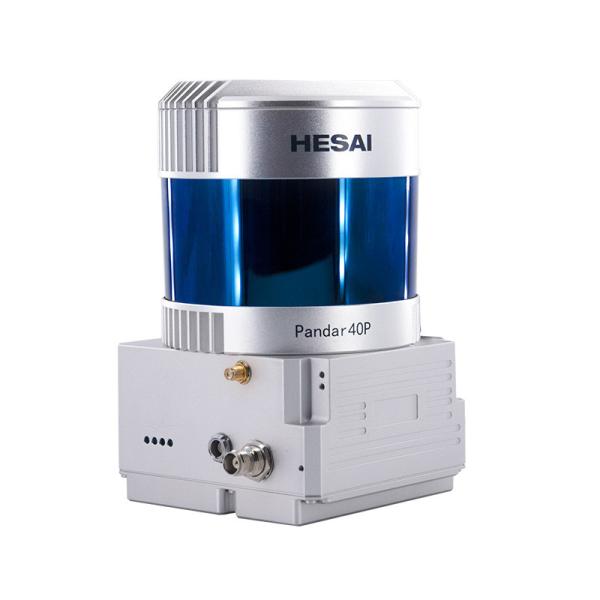

gAirHawk GS-260S UAV LIDAR SCANNING SYSTEM

Drone LiDAR Scanning System Application for Mapping and Survey with DJI Drone

gAirHawk GS-260S is a kind of Mid-range, compact LiDAR point cloud data acquisition system, integrated HESAI Pandar laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Pandar20B 20-Channel Mechanical LiDAR

905nm Class1 HESAI Pandar Laser DJI Drone UAV LiDAR System

Specification

gAirHawk GS-260S
Item Name System Parameters


GS-260S

Parameters

 Weight 1.9 kg (without camera)
Measuring accuracy 0.1m/0.05m(@150m)
Working temperature -20℃~+60℃
Power range 12 V- 24 V
Consumption 20 W
Carrying Platform DJI M300, M600 PRO
Storage 64 GB storage, maximum support 128GB TF card

Lidar Unit

 Measuring Range 0.3m-200m@10% Reflectivity
Laser class 905nm Class1 (IEC 60825-1:2014)
Laser line number 20-Beam
Max. range 200 m
Mix. range 0.3 m
Range accuracy ±5cm (@0.3m~5m), ±2cm (@0.5m~200m)
Scanning frequency 10HZ, 20HZ
data Double echo 720,000 Points/Sec
FOV 360°, adjustable
Laser sensor HESAI Pandar 20B
POS Unit Update frequency 200HZ
Heading accuracy 0.017°
Pitch accuracy 0.005°
Rolling accuracy 0.005°
Position accuracy ≤0.05m
GNSS signal type GPSL1/L2 GLONASSL1/L2 BDS B1/B2a/B3
GNSS Motherboard OEM 719
IMU AGS 303
Pre-processing software POS software Output information: position, speed, attitude
Point cloud software Output point cloud data format: LAS format, custom TXT format
Camera (option) Camera Model Sony RX1/a 6000
Effective Pixel 42/24 Mega Pixel
Trigger event Distance or Time trigger
Weight (g) Less than 600/300

Application for Forestry

905nm Class1 HESAI Pandar Laser DJI Drone UAV LiDAR System

Package

It is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
