Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Specifications
Brand Name :
Geosun
Model Number :
GS-800
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 SETS/MONTH
Delivery Time :
15-20
Packaging Details :
Hard package 663×496×338 mm
Power source :
Lithium battery Power source
Drone type :
Multi-Roto drone
Application :
Mapping & Survey
Payload :
Less than 2.5 kg
Description

Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support

GS-800 multi-rotor UAV aerial photographing and mapping system is made of high-strength carbon fiber, with
novel and lightweight fuselage design, smart, stable, flexible, and low noise. It supports simulated flight, long
flight time, suitable for operation in cities, towns and mountainous areas.
GS-800 multi-rotor UAV aerial photographing and mapping system, simple to operate and convenient to
transport, can carry out simple and stable flight without too much technical training. It is widely used in geological exploration, remote sensing mapping, environmental protection, meteorological exploration, disaster monitoring, aerial survey, line and pipeline inspection, urban patrol and so on.


Application

Small and medium-sized mapping, aerial mapping, aerial monitoring, power planning and design, land survey,
forestry application, earthquake relief and other industries.
High Efficiency
Endurance without payload ≤ 85mins Endurance with GS-100M+ ≤ 65mins
Endurance with GS-00C+≤ 50mins Endurance with GS-30X/GS-260X≤ 40mins
Easy Operation
Support simulated flight and adapt to mountain operation
Support to import KML and accurately plan the survey area
Automatic figure 8 flight, coordinated turn
Special Safety
Aircraft self inspection protection and pre flight inspection protection to avoid misoperation
Automatic return with low power, automatic return with broken chain and no fly zone are set to
reduce potential safety hazards
Magnetic compass abnormal protection, attitude protection and broken propeller protection
provide escort for safe operation

Technical Parameter

Standard payload (Kg) 5
Max. Payload (Kg) 2.5
Cruise speed (m/s) 0-15
MTOW (Kg) 20
Battery (V, mAh) 14S 14000mAh × 1
Working temperature 20~45℃
Wheelbase (mm) 815
Duration of flight (Minutes) > 40
Max. Duration (Minutes) > 60
Max. Fly height (m) 5000
Wind Resistance Wind Velocity 6
Differential mode Support RTK/PPK
Package size (mm) 663×496×338

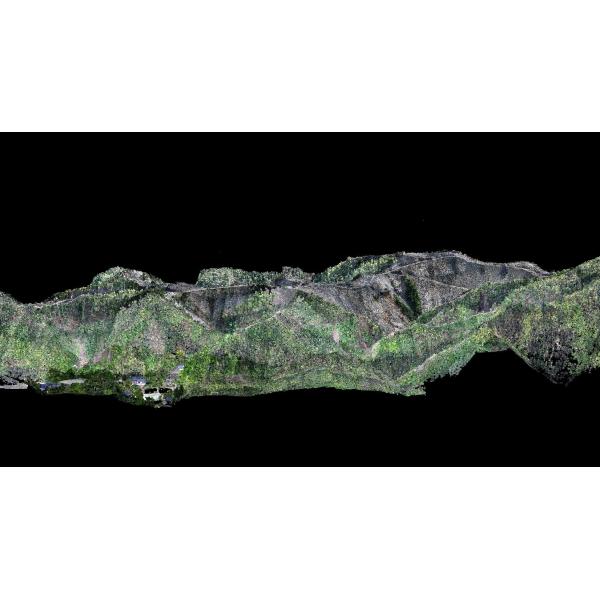

Application for Mapping & Survey
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation SupportMulti Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation SupportMulti Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support

Package Information
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
Multi Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation SupportMulti Rotor LiDAR Drone Safety Aircraft Aerial Survey Operation Support
