Specifications
Brand Name :
Geosun
Model Number :
GS-130X UAV LiDAR Scanning System
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Supply Ability :
30 SETS/Month
Delivery Time :
10-15 works days
Packaging Details :
Suit Case 450*365*200 mm
Operation Efficiency :
1.6 K㎡ / Single Flight
Application :
Forestry, Power Line Patrol, Historical Relics
Channel :
32-Channel
Material :
Aluminum Alloy Body
Accuracy :
10cm@100m
Dimension :
14.4*10.9*12cm
Weight :
1.26kg
Storage :
64GB Max Support 128GB TF card
Working Temperature :
-20°~+55°
Carrying Platform :
Multi-Rotor/VTOL
Trajectory Software :
Shuttle
Point Cloud Software :
gAirHawk
Description

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

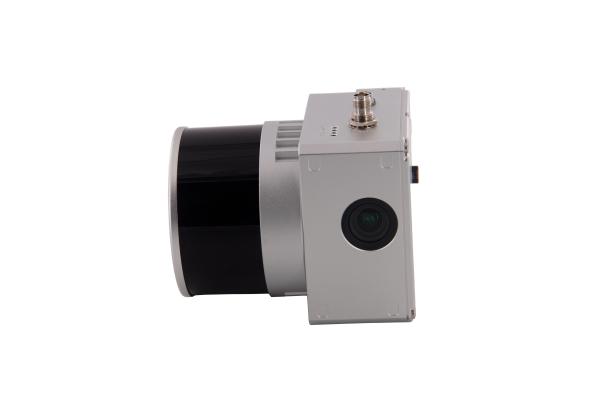

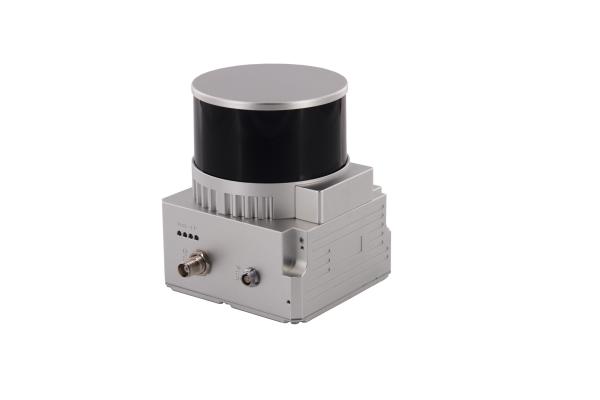

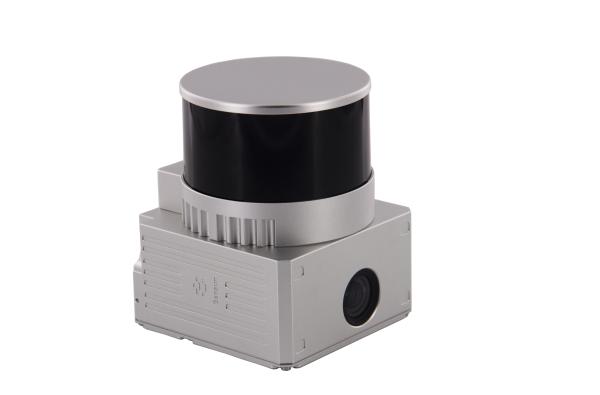

Geosun gAirHawk uav LiDAR Scanning System GS-130X
gAirHawk GS-130X is a kind of middle-range, compact LiDAR point cloud data acquisition system, integrated HESAI XT32 laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

For more specification please check here: gAirhawk GS-130X.pdf

Specification of uav LiDAR scanning system GS-130X

uav LiDAR scanning system gAirHawk GS-130X

Item Name

System Parameters


GS-130X

Parameters

Weight

1.26 kg

Measuring accuracy

Less than 0.1m @120m

Working temperature

-20℃~+65℃

Power range

12 V- 24 V

Consumption

10 W

Carrying Platform

Multi Rotor: GS-800, GS-850, DJI M300, M600; VTOL and Vehicle

Storage

64 GB storage, maximum support 128GB TF card

Lidar Unit

Measuring Range

0.3m-120m@10% Reflectivity

Laser class

905nm Class1 (IEC 60825-1:2014)

Channel

32-Channel

Range accuracy

±1cm (typical Value)

Data

Double echo 1,280,000 Points/Sec

FOV

360°, adjustable

Laser sensor

HESAI Pandar XT

POS Unit

Update frequency

200HZ

Heading accuracy

0.017°

Pitch accuracy

0.005°

Rolling accuracy

0.005°

Position accuracy

≤0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera (built-in)

Effective Pixel

26 MP

Fov

83 Degree

Focal Length(mm)

16

Applications of uav LiDAR scanning system GS-130X

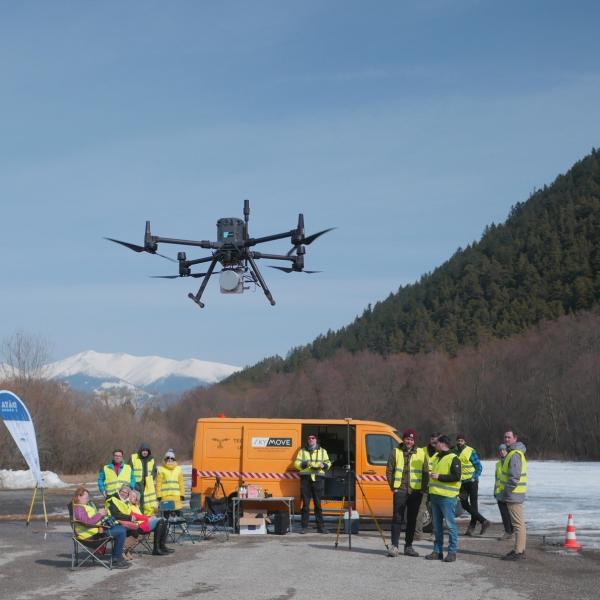

Thanks to Skymove, Geosun dealer in Slovakia makes an presentation for people who are interested to know more about Geosun LiDAR.

The whole presentation includes 3d data collection and lidar data processing, it is a close way to know how uav LiDAR works and see how efficient uav lidar is.

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

Free Trial Software uav LiDAR Scanning System gAirHawk GS-130X

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

Package of uav LiDAR scanning system GS-130X

Package of uav LiDAR scanning system GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box.

It is suitable for air shipment and sea shipment.

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud

EU Airborne UAV LiDAR Scanning GS-130X Hesai XT32 Laser Senor High Accuracy Pos Colored Point Cloud
