Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
Specifications
Brand Name :
Geosun
Model Number :
GS-260X Drone LiDAR Scanning System
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets/month
Delivery Time :
10-15 works days
Packaging Details :
Suit case 450*365*200 mm
Item Name :
Drone LiDAR Scanning System
Operation Efficiency :
2.5 km2 / single flight
Application :
Land Mapping
Channel :
32-channel
Accuracy :
10cm@150m
Material :
Aluminum Alloy Body
Dimension :
14.2*10.9*12cm
Weight :
1.15kg
Storage :
64GB Max Support 128GB TF card
Working Temperature :
-20°~+55°
Platform :
Multi-Rotor/Vehicle
Trajectory Software :
Shuttle 6.2
Point Cloud Software :
gAirHawk 5.0
Description

Land Mapping Drone Payload UAV LiDAR Surveying Geosun Partner In Indian Multi-Rotor Support High Precision

Geosun gAirHawk Series GS-260X uav LiDAR Scanning System

gAirHawk GS-260X is a kind of middle-range, compact LiDAR point cloud data acquisition system, integrated HESAI XTM2X laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

For more specification please check here:gAirhawk GS-260X.pdf

Application of uav LiDAR Scanning System GS-260X

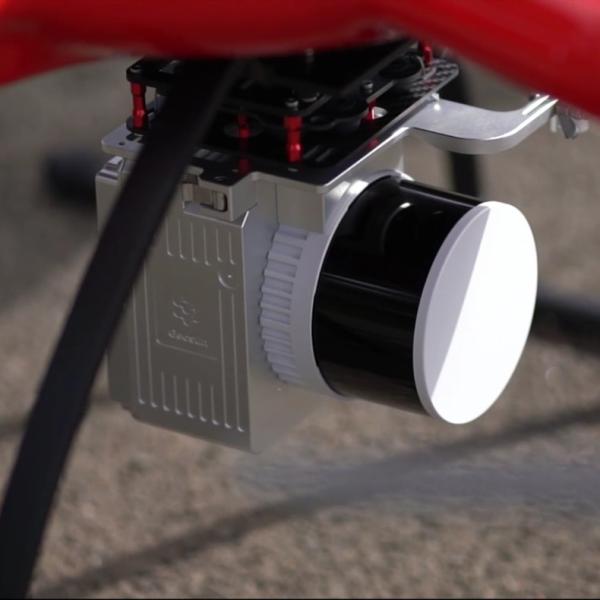

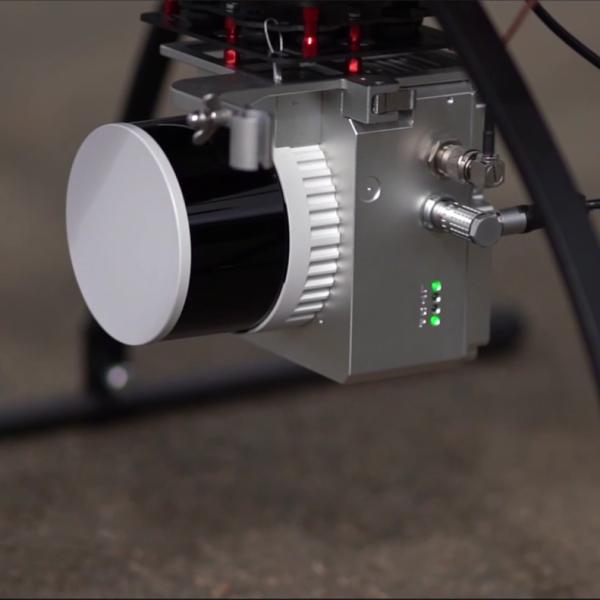

A demonstration placed by Geosun partner in India. It is lidar device GS-260X mounted on multi-rotor for land mapping.

Fast installation, easy operation,strong penetration,high precision output.

Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor

Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor

Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor

Free Trial Software UAV LiDAR Scanning System
Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf
Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor

Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor


Specification of uav LiDAR Scanning System GS-260X

uav LiDAR scanning system gAirHawk GS-260X

Item Name

System Parameters


GS-260X

Parameters

Weight

1.15 kg

Measuring accuracy

Less than 0.1m/0.05m(@150m)

Working temperature

-20℃~+65℃

Power range

12 V- 24 V

Consumption

10 W

Carrying Platform

GS-800, DJI M300, M600 PRO and Other brand

Storage

64 GB storage, maximum support 128GB TF card

Lidar Unit

Measuring Range

80m@10% Reflectivity (Max 300m)

Laser class

905nm Class1 (IEC 60825-1:2014)

Channel

32-channel

Range accuracy

±1cm (typical Value)

Scanning frequency

10HZ, 20HZ

data

Trible-echo 1,920,000 Points/Sec

FOV

360°, adjustable

Laser sensor

HESAI XTM2X

POS Unit

Update frequency

200HZ

Heading accuracy

0.017°

Pitch accuracy

0.005°

Rolling accuracy

0.005°

Position accuracy

≤0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera

FOV

83-degree

Effective Pixel

26 Mega Pixel

Focal Length(mm)

16

Package of uav LiDAR scanning system GS-260X
uav LiDAR scanning system is packed by suit case with EVA material liner inside, then covered by hard carton box.
The package of uav LiDAR scanning system is suitable for air shipment and sea shipment.
Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
Land Mapping UAV Payload Drone LiDAR Surveying Geosun Partner In Indian Multi Rotor
