Specifications
Brand Name :
Geosun
Model Number :
GS-260X LiDAR Scanning System
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30 SETS/Month
Delivery Time :
10-15 works days
Packaging Details :
Suit Case 450*365*200 mm
Operation Efficiency :
2.5 km2 / single flight
Application :
Mapping & Survey
Channel :
32 Channel
Laser brand :
HESAI Pandar XTM2X
Material :
Aluminum alloy body
Appication :
Power Line
Description

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping Colored Point Cloud High Accuracy

Geosun gAirHawk Series GS-260X UAV LiDAR Scanning System

gAirHawk GS-260X is a kind of Mid-range, compact LiDAR point cloud data acquisition system, integrated HESAI Pandar XT laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Specification of UAV LiDAR Scanning System GS-260X

UAV LiDAR Scanning System gAirHawk GS-260X
Item Name System Parameters

GS-260X

Parameters

 Weight 1.15 kg
Measuring accuracy Less than 0.1m/0.05m(@150m)
Working temperature -20℃~+65℃
Power range 12 V- 24 V
Consumption 10 W
Carrying Platform DJI M300, M600 PRO and Other brand
Storage 64 GB storage, maximum support 128GB TF card

Lidar Unit

 Measuring Range 80m@10% Reflectivity (Max 300m)
Laser class 905nm Class1 (IEC 60825-1:2014)
Channel 32-Channel
Range accuracy ±1cm (typical Value)
Scanning frequency 10HZ, 20HZ
data Trible echo 1,920,000 Points/Sec
FOV 360°, adjustable
Laser sensor HESAI Pandar XTM2X
POS Unit Update frequency 200HZ
Heading accuracy 0.017°
Pitch accuracy 0.005°
Rolling accuracy 0.005°
Position accuracy ≤0.05m
GNSS signal type GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software POS software Output information: position, speed, attitude
Point cloud software Output point cloud data format: LAS format, custom TXT format

Camera

(built-in)

 FOV 83 Degree
Effective Pixel 26 Mega Pixel
Trigger event Distance or Time trigger

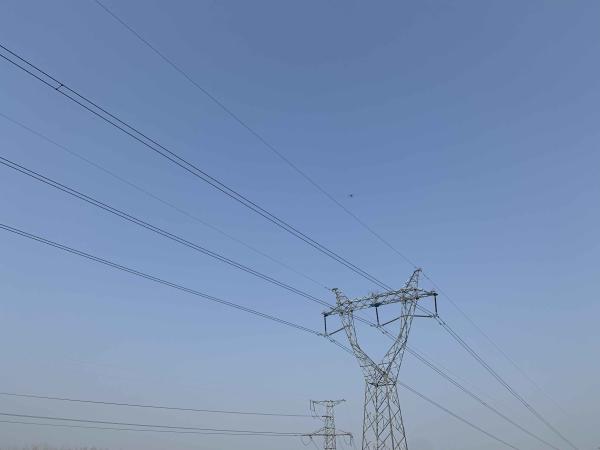

Power Line Application of UAV LiDAR Scanning System GS-260X

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Package of UAV LiDAR Scanning System GS-260X

UAV LiDAR scanning system GS-260X is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy

Power Line Inspection Aerial Mapping UAV LiDAR Drone Mapping 3D Data Collection Colored Point Cloud High Accuracy
