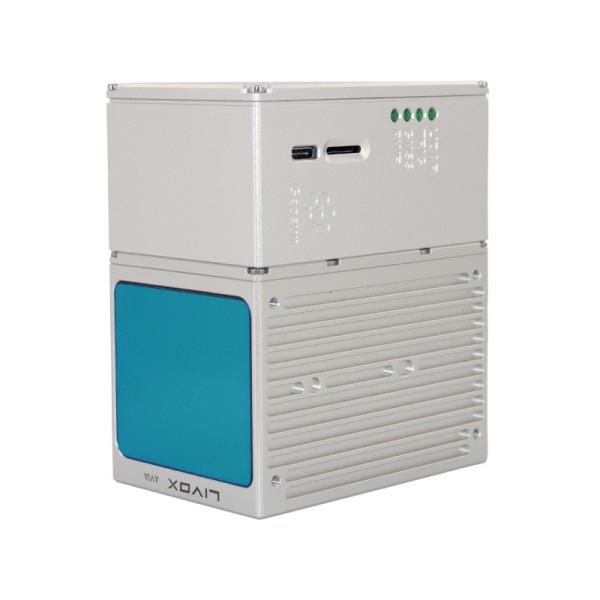

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
Specifications
Brand Name :
Geosun
Model Number :
GS-100M+
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
30 SETS/Month
Delivery Time :
10-15 works days
Packaging Details :
Suit Case 450*365*200 mm
Material :
Aluminum Alloy Body
Accuracy :
10cm@110m
Dimension :
9.5*9.1*9.4cm
Storage :
64GB Max Support 128GB TF Card
Working Temperature :
-20°~+55°
Application :
Forestry, Smart City Construction
Weight :
Less Than 750 G
High Dencity :
720000 Points/s
Description

GS-100M+ LiDAR System Livox Avia Laser Entry-Level 3D Data Collection Mapping Surveying

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System

gAirHawk GS-100M+ is a kind of light compact LiDAR point cloud data acquisition system, integrated Livox new generation laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Specification of LiDAR Scanning System gAirHawk GS-100M+

LiDAR Scanning System gAirHawk GS-100M+

Item Name

System Parameter


GS-100M+

Parameter

Weight

Less than 0.75 kg

Measuring accuracy

Less than 0.15 cm (100 m AGL)

Power range

12V~16V

Working temperature

-20℃~+55℃

Consumption

Average 20W

Support Platform

GS-800 Multi Rotor, VTOL

Storage

64 GB storage, maximum support 128GB TF card

Lidar Unit

Laser Model

Livox Avia

Measuring Range

190m@10% Reflectivity, 260m@20% Reflectivity, 450m@80% Reflectivity

Laser class

905nm Class1 (IEC 60825-1:2014)

Laser line number

Equivalent to 64-beam

Range Precision

2 cm

data

Triple echo, 720,000 Points/Sec

FOV

70° the circular view

POS Unit

POS type

AGS 302

Update frequency

200HZ

Heading accuracy

0.040°

Pitch accuracy

0.015°

Rolling accuracy

0.015°

Position accuracy

0.02 - 0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera (Option)

Camera Model

Sony a 6000 (Non standard)

Effective Pixel

24 Mega Pixel

Trigger event

Distance or Time trigger

Weight (g)

Less than 300

Application of LiDAR Scanning System gAirHawk GS-100M+

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying DeviceGeosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Free Trial Software UAV LiDAR Scanning System gAirHawk GS-100M+

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Package LiDAR Scanning System gAirHawk GS-100M+

LiDAR Scanning System gAirHawk GS-100M+ is packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device

Geosun gAirHawk Series GS-100M+ LiDAR Scanning System Livox Avia Laser 3D Data Collection Mapping Surveying Device
