Specifications
Brand Name :
Geosun
Model Number :
GS-130X
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, Credit Card
Supply Ability :
80 SETS/Month
Delivery Time :
10-15 works days
Packaging Details :
Suit Case 450*365*200 mm
Operation Efficiency :
1.6 K㎡ / Single Flight
Application :
Building, Forestry, Poweline, Mine
Channel :
32 Channels
Material :
Aluminum Alloy Body
Accuracy :
10cm@100m
Dimension :
14.2*10.9*12cm
Weight :
1.26kg
Storage :
64GB Max Support 128GB TF Card
Working Temperature :
-20°~+55°
Carrying Platform :
UAV and Vehicle
Trajectory Software :
Shuttle
Point Cloud Processing Software :
gAirHawk
Description

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

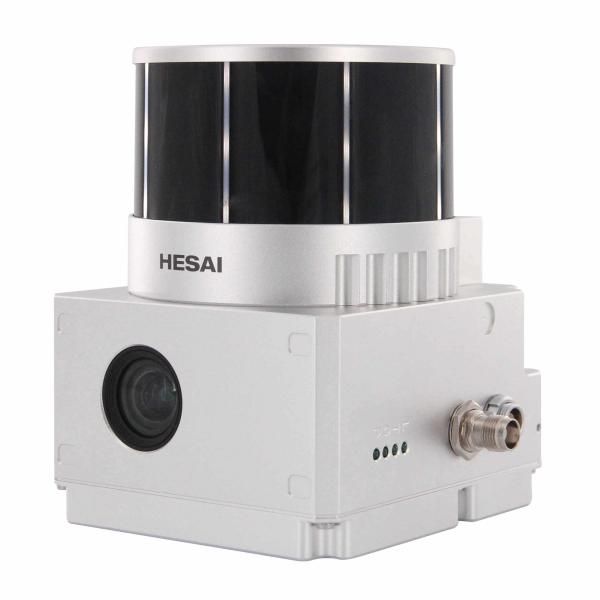

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System

LiDAR Scanning System GS-130X integrates a Hesai XT32 laser sensor and all built-in units to create a futuristic look for your diversified LiDAR solution services.Stands out with strong penetration and small beam divergence in same uav lidar scanning system class to deliver a better performance in any vegetation areas. GS-130X LiDAR Scanning System.pdf

Specification of LiDAR Scanning System GS-130X

LiDAR Scanning System gAirHawk GS-130X

Item Name

System Parameters


GS-130X

Parameters

Weight

1.26 kg

Measuring accuracy

Less than 10cm@120m

Working temperature

-20℃~+65℃

Power range

12 V- 24 V

Consumption

10W

Carrying Platform

Multi Rotor, VTOL and Vehicle

Storage

64 GB storage, maximum support 128GB TF card

Lidar Unit

Measuring Range

0.3m-120m@10% Reflectivity

Laser class

905nm Class1 (IEC 60825-1:2014)

Channel

32-Channel

Range accuracy

±1cm (typical Value)

Scanning frequency

10HZ, 20HZ

data

Double echo 1,280,000 Points/Sec

FOV

360°, adjustable

Laser sensor

HESAI XT32

POS Unit

Update frequency

200HZ

Heading accuracy

0.017°

Pitch accuracy

0.005°

Rolling accuracy

0.005°

Position accuracy

≤0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera (built-in)

FOV

86 degree

Effective Pixel

26 Mega Pixel

Focal length(mm)

16

Application of LiDAR Scanning System GS-130X

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Free Trial Software LiDAR Scanning System gAirHawk GS-130X

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Geosun gAirHawk Sesries GS-130X LiDAR Scanning System Hesai XT32 Sensor Strong Penetration 360 Degree Fov

Package of LiDAR Scanning System GS-130X

LiDAR Scanning System GS-130X is packed by suit case with EVA material liner inside, then covered by hard carton box.

The pacakge of uav LiDAR scanning system is suitable for air shipment and sea shipment.
