Specifications
Brand Name :
Geosun
Model Number :
GS-260X Drone LiDAR
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Supply Ability :
30 sets/month
Delivery Time :
10-15 works days
Packaging Details :
Suit case 450*365*200 mm
Item Name :
Drone LiDAR Scanning System
Operation Efficiency :
1.6 K㎡ / Single Flight
Application :
Forestry, Power Line Patrol, Historical Relics
Channel :
32 Channels
Material :
Aluminum Alloy Body
Accuracy :
10cm@150m
Dimension :
14.4*10.9*12cm
Weight :
1.15kg
Storage :
64GB Max Support 128GB TF card
Working Temperature :
-20°~+55°
Carrying Platform :
Multi-Rotor/VTOL
Trajectory Software :
Shuttle
Point Cloud Software :
gAirHawk
Description

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

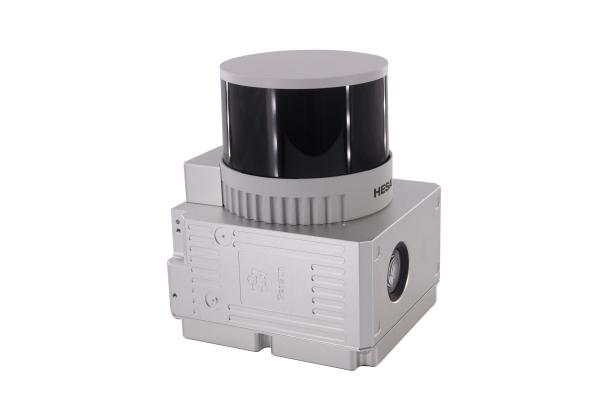

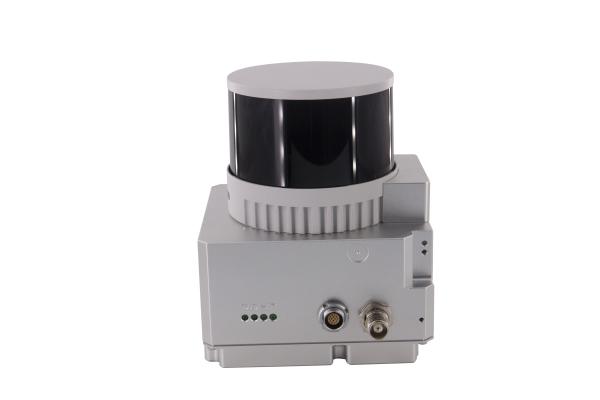

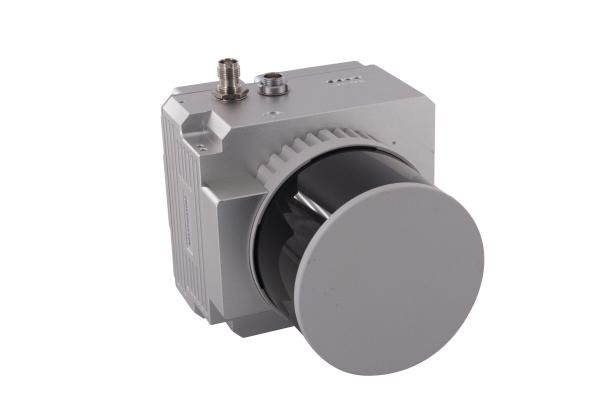

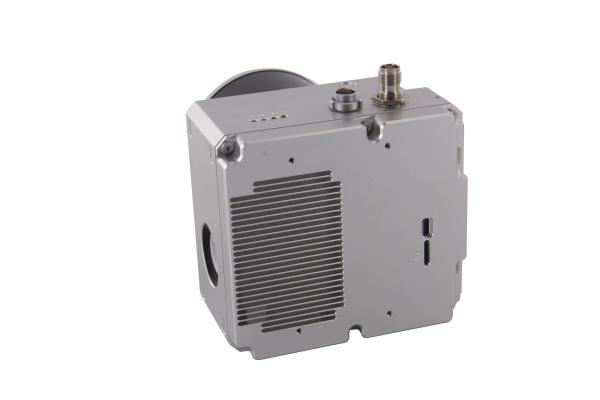

Geosun gAirHawk Series GS-260X Drone LiDAR Scanning System
gAirHawk GS-260X is a kind of middle-range, compact LiDAR point cloud data acquisition system, integrated HESAI XTM2X laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

For more specification please check here: gAirhawk GS-260X.pdf

Specification of Drone LiDAR Scanning system GS-260X

Drone LiDAR Scanning System gAirHawk series GS-260X
Item Name System Parameters

Drone LiDAR
GS-260X Parameters

 Weight 1.15kg
Measuring accuracy Less than 0.1m/0.05m(@150m)
Working temperature -20℃~+65℃
Power range 12V- 24V
Consumption 10W
Carrying Platform DJI M300, M600 PRO and Other brand
Storage 64 GB storage, maximum support 128GB TF card

Lidar Unit

 Measuring Range 80m@10% Reflectivity (Max 300m)
Laser class 905nm Class1 (IEC 60825-1:2014)
Channel 32-channel
Range accuracy ±1cm (typical Value)
Scanning frequency 10HZ, 20HZ
data Trible-echo 1,920,000 Points/Sec
FOV 360°, adjustable
Laser sensor HESAI Pandar XTM2X
POS Unit Update frequency 200HZ
Heading accuracy 0.017°
Pitch accuracy 0.005°
Rolling accuracy 0.005°
Position accuracy ≤0.05m
GNSS signal type GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software POS software Output information: position, speed, attitude
Point cloud software Output point cloud data format: LAS format, custom TXT format

Camera

(built-in)

 FOV 83 Degree
Effective Pixel 26 Mega Pixel
Trigger event Distance or Time trigger

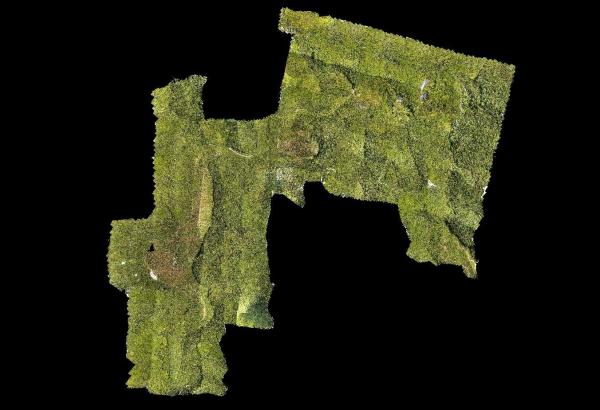

GS-260X Drone LiDAR Scanning System Application
Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Free trial software of Drone LiDAR Scanning System

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation
Free trial test, achieve high precision

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Package of Drone LiDAR Scanning System GS-260X

Drone LiDAR scanning system GS-260X is packed by suit case with EVA material liner inside, then covered by hard carton box.

The package of LiDAR scanning system is suitable for air shipment and sea shipment.

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution

Forestry Surveying Drone LiDAR Geosun GS-260X Aerial Mapping Solution
