2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials
2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials
2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials
2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials
Specifications
Brand Name :
HUATAO
Model Number :
CR-003
Place of Origin :
CHINA
MOQ :
one set
Price :
Price accept negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20 Sets per Month
Delivery Time :
60days
Packaging Details :
wooden box
Type :
Packaging Line
Material :
Special 48CrMo alloy steel fine forgings
Condition :
New
Diameter :
100-600mm
Lentgh :
100-4000mm
Application :
BHS TCY FOSBER Single facer machine
Flute :
A.C.B.E.F.G as customer request
Hardness :
≥ HRC55°
Description

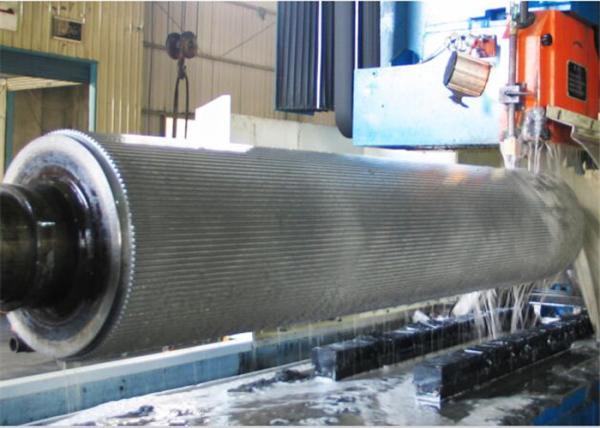

2 Ply Single Facer Chrome Plated or Tungsten Carbide Corrugated Rollers


Products Description:

2 Ply Single Facer Chrome Plated or Tungsten Carbide Corrugated Rollers Used for carton box corrugator machine .The upper and lower corruagted( corrugating, flute) roller for single facer machine,
Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o.The surface is well treated by grind and plated chrome. Different type of flute according to user's request.

2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials

Specification

1. Special 48CrMo alloy steel fine forgings for corrugated roll
2. The hardness of base unit in medium-frequency quenching>HRC58
3. Thickness of anti-friction carbonized tungsten coating is between 0.05 and 0.06mm
4. The micro hardness of carbonized tungsten coating HV950-1100
5.Run-time is double than hard-chrome coating,but its price is 10% higher only.


Corrugating Roll Flute Type

Flute Type Flute Teeth/300mm Height of Flute
A UV 30±2 4.6-4.9
C UV 39±3 3.6-3.9
CB UV 44±2 3.0-3.4
B UV 50±2 2.6-2.9
BE UV 66±3 1.9-2.1
E UV 90±10 1.1-1.5
F UV 124±10 0.7-0.8
G UV 185±12 0.5-0.65
N UV 200±15 0.4-0.5
O UV 267 or design 0.25-0.35


Process Flow :


2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials

Packaging & Shipping


1.Packing : Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
2.Delivery Time:Shipped in 60days after payment

2 Ply Corrugated Rollers Single Facer Chrome Plated or Tungsten Carbide materials


HUATAO SERVICE

Order Process:

1. Sending/Getting Inquiry

2. Quotation based on details

3. Information Confirmed

4. Process Feedback

5. 30-100% T/T Deposit Payment. Paypal or Western Union is acceptable.

6. Shipping Notice

7. Shipment

8.After Sales

Our Advantages:

1. Your inquiry related to our product & price will be replied within 24 hours.

2. Rich experience in packaging mechinery parts.

3. Bulk purchase quantities

4. Share the competitive prices with customer.

5. Good quality control and after-saled support.

6. Guaranteed delivery time.
