Nomex Heat Transfer Printing Felt Belt For Roll To Roll Transfer Printing Machine

Product profile

Blanket imported DuPont aramid 1313, the middle fabric for high-performance industrial silk fabric. It can work under 250°C. After the use, the shrinkage of the door width is 3%, the elongation is 3%, the weight is 3300g/m2, the thickness is 8mm, and can also be customized according to customer's demand. The thickness is 3600g. /m2 is a special blanket for transfer printing of various fabrics, curtain fabrics, and decorative fabrics. Specifications can be customized according to customer needs.

Product specification

Product Advantage

1. Misaligned----Our base cloth is use endless industrial silk. Testing report showed the misaligned rate is about ±3mm. enclosed our base cloth for your consideration

2. Shrinkage----The base cloth can control the shrinkage rate in 2.5%--3%.

3. Material---100% DUPONT Nomex.

Some of commonly used size for your reference:

The perimeter(MM) ------------------------ Width(MM) ------------------------ Thickness(MM)

1320 ---------------------------------- 1215 ---------------------------------- 8

3140 ---------------------------------- 1960 ---------------------------------- 8

2240 ---------------------------------- 1700 ---------------------------------- 8

If you have other demands about the size, kindly let me know, we accept the customization.

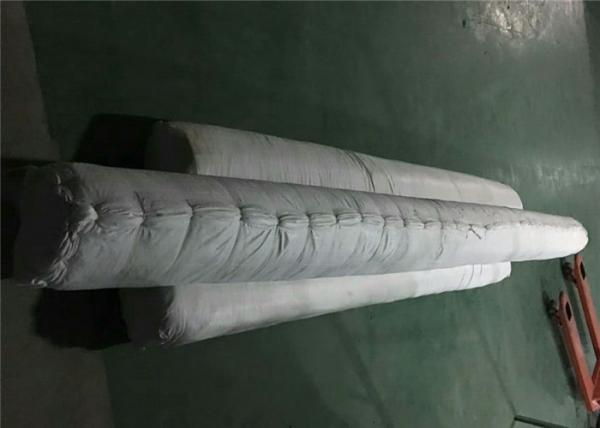

Package&Delivery

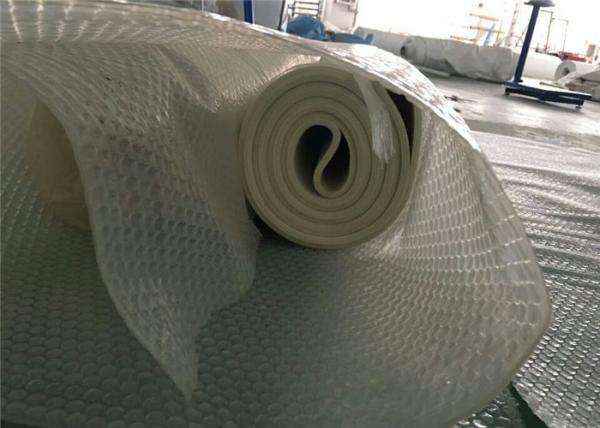

Package: plastic bag+ Bubble wrap+woven bag

Delivety: Express company & by air & by sea or as your demands

Product details & application

Direction of our felt belt

1. The blanket must be install as the direction of the arrow, fixing both sides of the perimeter

to see if the perimeter is the same.

2. Adjust the machine pressure within 2kg. heat up to 150 ℃, idle for 2 hours; heat up to

170℃, idle for 2 hours; heat up to 190℃, idle 3 hours( important); heat up to 200℃,

idle for 2 hours.

3. Then the belt will suitable for your machine, you can adjust the machine pressure in 3--5kg

according to your needed and start to printing.

FAQ

1. How long it can be use?

Depend on your scale of production and your use custom.

2. The Sample is free?

Yes, if you need the samples, we will send it to you freely. but hope you pay the freight. thank you.

3.What is the lead time?

About 7 working days.

4.What is the packing?

By air & by sea or as your demands
