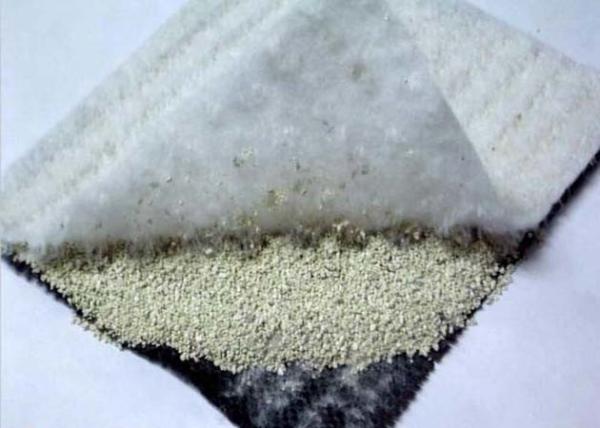

3 Layer Geocomposite Clay Liner 5000g weight Bentonite with Nonwoven Geotextile
3 Layer Geocomposite Clay Liner 5000g weight Bentonite with Nonwoven Geotextile
3 Layer Geocomposite Clay Liner 5000g weight Bentonite with Nonwoven Geotextile
3 Layer Geocomposite Clay Liner 5000g weight Bentonite with Nonwoven Geotextile
Specifications
Brand Name :
HT
Model Number :
HUATAO-GCL-001
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
5000 m2 per order
Price :
Price accept negotiation
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
Paper or iron tube with waterproof film
Material :
geotextile, bentonite
Type :
Geosynthetic Clay Liner
Bentonite mass weight :
5000GSM
WIDTH :
2-6m
name :
Geosynthetic Clay Liner of 3 layer
Description

Geosynthetic Clay Liner of 3 layer 5000g weight Bentonite with Geotextile and nonwoven geotextile


Geosynthetic clay liners (GCLs) introduction:

Geosynthetic clay liners (GCLs) are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.

Geosynthetic clay liners (GCLs) Technical Parameter

Inspection Item Testing Procedure Technical Index
Bentonite mass for unit area ASTMD5993 ≥5.5kg/m2
Expansion coefficient ASTMD5890 ≥ 25mL/2g
Low temperature ductility ASTMD5898 No impact at -35°C
Thickness ASTMD5892 ≥6.4mm
Tensile strength ASTMD4632 ≥540N
Peel strength of concrete face ASTMD4632 ≥3.0 KN/ m2
Peel strength ASTMD4632 ≥68N
Indicated flow ASTMD5887 ≤1 × 10-8m3/m2/sec
Hydrostatic pressure resistance ASTMD5888 ≥70
Permeability ASTMD5887 ≤5 × 10-12cm/sec
Extension rate ASTMD5896 ≥20
Puncture strength ASTMD5894 ≥635N

Geosynthetic clay liners (GCLs) Features:
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.

Geosynthetic clay liners (GCLs) Application:

1)Improved leakage performance

2)Permanent waterproof performance

3)Simple construction and short time limit for project

3 Layer Geocomposite Clay Liner 5000g weight Bentonite with Nonwoven Geotextile
