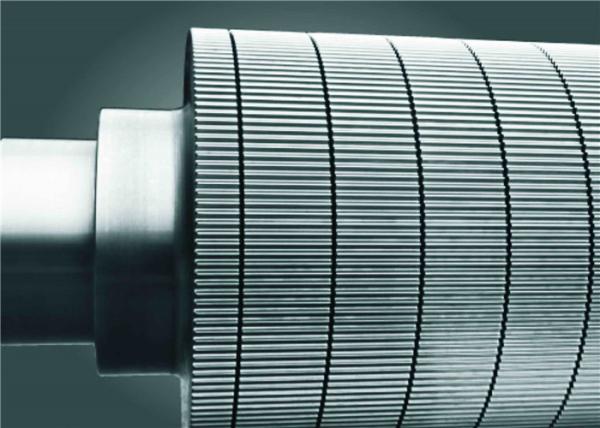

Alloy Steel Corrugating Rolls Grinding or Repair Hardness 55 to 60 CrMo
Alloy Steel Corrugating Rolls Grinding or Repair Hardness 55 to 60 CrMo
Specifications
Brand Name :
HUATAO
Model Number :
CR-009
Place of Origin :
CHINA
MOQ :
one set
Price :
Price accept negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
60days
Packaging Details :
wooden box
Product Name :
Hardness 55 to 60 CrMo Alloy Steel Corrugated Roller
Type :
Tungsten Carbide or Chrome-plated
Condition :
New or repair
Diameter :
Φ100-600mm
Lentgh :
100-4000mm
Application :
BHS TCY FOSBER Single facer machine
Flute :
A.C.B.E.F.G as customer request
Hardness :
55 to 60 CrMo
Description

Hardness 55 to 60 CrMo Alloy Steel Corrugated Roller

Products description:

Hardness 55 to 60 CrMo Alloy Steel Corrugated Roller is Used for carton box corrugator machine,single facer machine .
The upper and lower corruagted( corrugating, flute) roller for single facer machine,Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o.The surface is well treated by grind and plated chrome. Different type of flute according to user's request.

Corrugated Rollers Specification:

1.Material :Special 48CrMo alloy steel fine forgings
2.Hardness:>HRC58 Quenching layer depth :5-7mm
3.Coating Thickness 0.06and 0.07mm Tungsten Coating Thickness
4.Surface plating: Micro hardness HV900-1250
5.Combination hardness >75MPa
6.Visible optical porosity <1%
7.The optimization of economic type design
8.High-speed Corrugating Rolls :twice fine grinding


Alloy Steel Corrugating Rolls Grinding or Repair Hardness 55 to 60 CrMo

Corrugating Roll Flute Type

Flute Type Flute Teeth/300mm Height of Flute
A UV 30±2 4.6-4.9
C UV 39±3 3.6-3.9
CB UV 44±2 3.0-3.4
B UV 50±2 2.6-2.9
BE UV 66±3 1.9-2.1
E UV 90±10 1.1-1.5
F UV 124±10 0.7-0.8
G UV 185±12 0.5-0.65
N UV 200±15 0.4-0.5
O UV 267 or design 0.25-0.35




Corrugated Rollers Feature:

1.Employing advanced heat treatment and plating technology, as well as high quality 48CrMo alloy steel forge piece,we can offer a wide range of rolls featuring high precision ,high hardness and long life.
2.It adopts computer assistant design,and sets allitems parameters scientifically, soitinsures the quality specification economical,reliable and reasonablel
3.It has big CNC corrugated roll precision grinding machine group,and they all work for corrugated roll.l
4.Computer control to grind the concave rolll
5.Select the good quality of 48CrMo, 50CrMo alloy steel forge piece
Adopt Germany advanced process to quenchin super ficialinter mediate frequency,hardened layer>7mm,hardness>HRC58-60(HS73-80),the hardness uniform with no soft zone.l
6.We adopt the most advanced high-efficiency Atotech.Heef-25micro-cracks functional chrome plating technology and equipment,to be morerigid,smoother,more light,more wear-resistant surface hard chrome plating,electroplating longer life than ordinary more than 25 percent.
7.We provide repair service for old corrugated roll at anytime

Packaging & Shipping


1.Packing : Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
2.Delivery Time:Shipped in 60days after payment

Inspection of corrugated roller before installation

(1) clean and check the corrugated surface appearance of corrugated roller (including the quality of surface plating).

(2) clean and check all fastening parts of connection (including internal and external threads).

(3) check the outer diameter and middle height of corrugated roll (the whole roll surface is divided into more than five measuring points from both ends to the middle).The middle and high detection points are odd, and the middle and high data should be symmetrical on both sides.Measure with the outside diameter micrometer of corresponding specification (outside diameter micrometer can be bought commonly by electromechanical company).

(4) check the corrugated roll height.Needle type depth dial meter measurement (needle type depth dial meter is not currently bought in China, must be imported.Or may use the ordinary depth dial gauge to change the system).

(5) clean and check the outer diameter and appearance of each shaft gear of corrugated roller, and measure the outer diameter with the micrometer of corresponding specifications.
