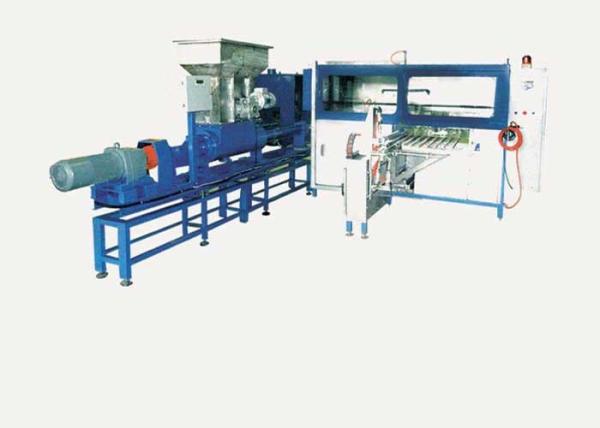

Full Automatic Paste Filling Line For Lead Acid Battery Manufacturer

Product Profile:

PF-JG650 Full Automatic Paste Filling Line is mainly suitable for lead-acid battery tube plate lead paste filling. It adopts man-machine interface PLC programmable controller for automatic control, which can store relevant parameters. Only need to select the parameters corresponding to the model when replacing the model; it has simple operation, reliable performance, strong function, high production efficiency, stable quality and environmental protection etc.

Technical Parameters:

1. Production efficiency: 150-300 pieces / h

2. Use grid length: 140-700mm

3. Power: 10KW

4. Gas source: 0.6-0.8MPa Air consumption: 9L/min

5. Volume: 7000 × 4500 × 2100 (length × width × height) mm

6. Equipment weight: 3T

Machine Features:

1. It could finish positioning, feeding, filling and washing plates totally automatically. Also, it allows changing between manually operated and automatic operated freely.

2. The length of filling paste could be adjusted freely by the length of the plate.

3. The filling pump adopts frequency converter to achieve governing the speed uniformly.

4. The speed of paste filling and plate feeding could be governed uniformly.

5. Lead paste could be recycled, which is good for environmental protection.

First, put the plates into the original position after the lead paste is ready in the hopper. Both filling and transferring of plates are finished automatically.

Second, governing the speed uniformly, lead paste could be transferred by pump to stainless steel tube. Then, plates are pushed into the stainless steel tube too.

At last, the pump fills the plate with lead paste continuously until the whole plate is filled completely and uniformly.
