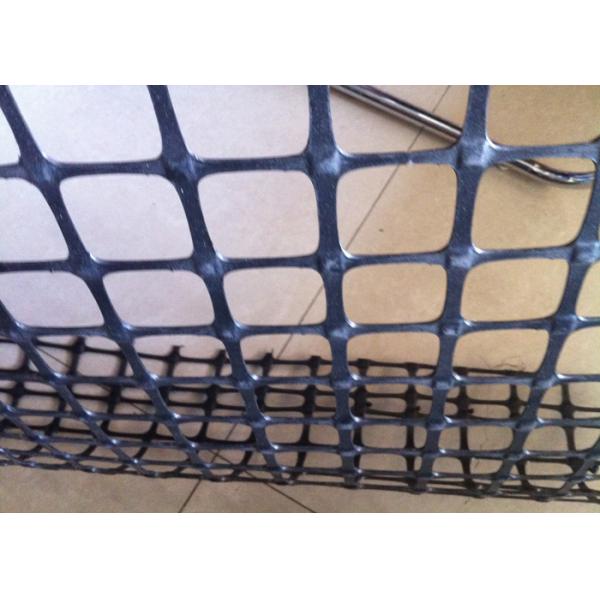

Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M
Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M
Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M
Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M
Specifications
Brand Name :
Huatao
Model Number :
HT-CQ-036
Certification :
ISO, CE, SGS Inspection
Place of Origin :
China
MOQ :
5000 Sq.mt
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Sq.mt per week
Delivery Time :
5-8 days
Packaging Details :
HDPE monoaxial uniaxial geogrid for plastic road system packged nakedly
Price :
Price accept negotiation
Material :
PP
Strength :
15KN/M--50KN/M
Width :
1-6m
Application :
road wall reinforcements
Color :
Black
Description

Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M

Plastic Biaxial Geogrid/ Polypropylene Geogrid​

PP Biaxial Geogrid

The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.

Dam Slope Protection Polypropylene Geogrid Reinforcing Fabric 15 - 50KN / M

Index Properties Test Method Unit GG1515 GG2020 GG3030 GG4040
MD TD MD TD MD TD MD TD
Polymer -- -- PP PP PP PP
Minimum Carbon Black ASTM D 4218 % 2 2 2 2
Tensile Strength@ 2% Strain ASTM D 6637 Kn/m 5 5 7 7 10.5 10.5 14 14
Tensile Strength@ 5% Strain ASTM D 6637 Kn/m 7 7 14 14 21 21 28 28
Ultimate Tensile Strength ASTM D 6637 Kn/m 15 15 20 20 30 30 40 40
Strain @ Ultimate Strength ASTM D 6637 % 13 10 13 10 13 10 13 10
Structural Integrity
Junction Efficiency GRI GG2 % 93 93 93 93
Flexural Rigidity ASTM D 1388 Mg-cm 700000 1000000 3500000 10000000
Aperture Stability COE Method mm-N/deg 646 707 1432 2104
Dimensions
Roll Width -- M 3.95 3.95 3.95 3.95
Roll Length -- M 50 50 50 50
Roll Weight -- Kg 39 50 72 105
MD denotes Machine direction. TD denotes transverse direction.

PP Biaxial Geogrid

The outlook of the Bi-directional(Biaxial)plastic geogrid is network structure like a square, it uses polypropylene as its raw material through extrusion, formed and punched before longitudunally and laterally stretched. This kind of material has high tensile force longitudinally and horizontally, which can be widely hued to reinforce basement.

The use range of the Biaxial stretch grid is extremely wide, not only applicable to highway, railway roadbed reinforcement, and suitable for various kinds of dam slope protection, large airport, parking lot, freight wharf etc. the loading capacity of permanent foundation reinforcement.

1: Increase the capacity of the foundation, and extend the service life of the embankment.

2: Prevent pavement collapsed or crack, keep the surface of the road beautiful and tidy.

3: Construction is convenient, time saving, and shorten the construction period, reduce maintenance costs

4: Prevent culverts cracks

5: Enhance slope to prevent soil erosion

6: Reduce the cushion layer thickness and save cost

7: Support plant grass slope stability and afforest environment

8: Replace metal nets, used in coal mine as top nets

The use range of the Biaxial stretch grid is extremely wide, not only applicable to highway, railway roadbed reinforcement, and suitable for various kinds of dam slope protection, large airport, parking lot, freight wharf etc. the loading capacity of permanent foundation reinforcement.


Applications of PP Biaxial Geogrid
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. It is easy to wash coal.

Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
