Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing
Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing
Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing
Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing
Specifications
Brand Name :
HUATAO
Model Number :
HUATAO-D002
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
50 Square meter
Price :
Price accept negotiation
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
10000 square meter per month
Delivery Time :
25 days
Packaging Details :
Wooden box or poly bag
Material :
Polyester
Color :
Red or white
Seam type :
Spiral Pin Seam
Air Permeability :
100~700CFM
Air permeability :
900-1200CFM
Thickness :
1.4mm ~ 2.0mm
Description

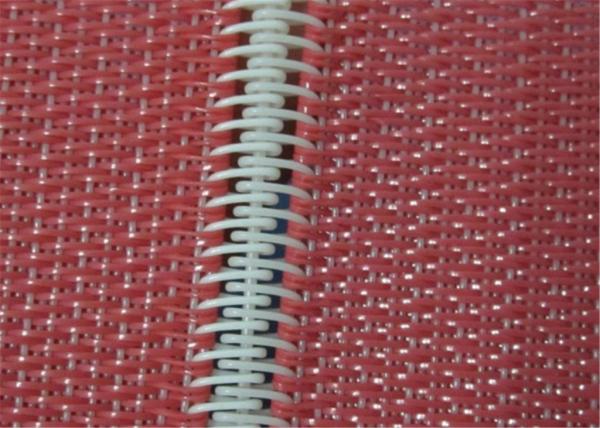

Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing

Dryer screen dries paper web after passing a press section by adhering the web to a steam heated cylinder.

In the dryer section of paper machine, the paper sheet travels around large-diameter heated cylinders, remaining water is removed by evaporation.

The screen is characterized by smooth surface and seam, stable structure gives more resistance to distortion, good runnability reduces sheet flutter and breaks, contamination resistant and easy clean for good using life and maintains even permeability and other advantages.

Woven dryer screen can be divided into 3-shed, 4-shed & 8-shed. Made from high grade flat monofilament and round monofilament polyester yarns. Used in the dryer section of paper machine to produce newprint paper, writing paper, carbonless paper, copper print, etc.


Seam Type: Insert, Pin, Ping ring, Spiral ring join.

Technical parameters

FABRIC CODE WEFT DENSITY WARP DENSITY WARP DIAMETER WEFT DIAMETER AIR PERMEABILITY
HT22604-1 23.0~24.0 14.5~15.5 0.815 X 0.31 0.40, 0.60 90CFM
HT22604-2 23.0~24.0 13.0~14.0 0.815 X 0.31 0.40, 0.60 150CFM
HT22604-3 23.0~24.0 11.5~12.5 0.815 X 0.31 0.40, 0.60 250CFM
HT18504 18.5~19.5 15.5~16.5 0.58 X 0.38 0.60 150CFM
HT18504-2 18.5~19.5 10.5~11.5 0.58 X 0.38 0.70 600CFM


Product Pictures:
Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing Flat Surface Plain Weave Polyester Dryer Fabric, Paper Machine Clothing
