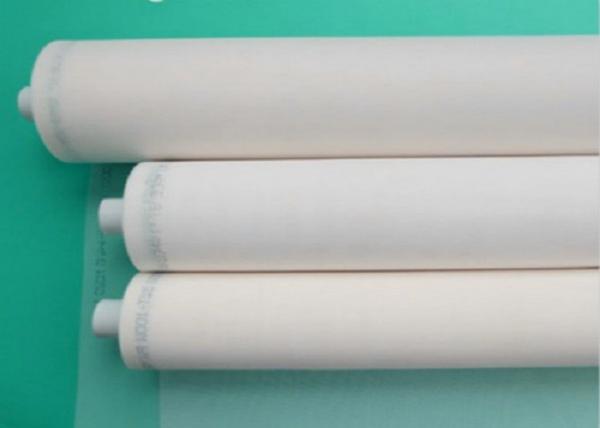

White Color 9T~200T 380cm 100% polyester screen printing mesh

Polyester Printing Screen Fabric is one of the most advanced high-tech fabric products in 1990s for screen printing , Screen Printing is a technique that is popular for making T-shirts and other garments,but also widely used for Ceramic Printing,Glass Printing,Graphics Printing, Electronic Printing, CD/DVD Printing,Wood printing , Metal printing , Plastic and leather printed .

Characteristics :

· optimized mesh geometry

· balanced, low elongation

· strength for larger formats

· modest loss of tension

Details:

1. Material: polyester mesh.
2. Specifications: 6T-165 T (mesh/cm).
3. Mesh count: 18-420 mesh/inch.
4. Thread diameter: 25-350 um.
5. Mesh opening: 25-1068 um.
6. Color: white, yellow and black.
7. Roll width: 100 cm, 127 cm, 145 cm, 165 cm, 220 cm, 258 cm, 305 cm, 335 cm or customized.
8. Roll length: 30-70 m.

9. Polyester Printing Screen Mesh :

   Mesh count diameter (mesh/cm μm)	Mesh count (mesh/ inch)	weave	aperture (μm)	Thread diameter (μm)	opening (%)	thickness (μm)	Thickness tolerance (+/-μm)	theoretical link (cm3/m2)	weight (g/m2)
   13- 150PW(SL)	33	1:1	619	150	64	300	14	128	60
   20-180PW(S)	55	1:1	296	180	69	120	9	79	35
   21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
   24-100PW(T)	60	1:1	316	100	57	136	11	65	81
   28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
   32-55PW(S)	81	1:1	257	55	67	103	6	67	28
   32-64PW(S)	81	1:1	248	64	63	95	6	56	32
   32-100PW(T)	81	1:1	212	100	45	165	8	73	75
   36-90PW(T)	92	1:1	183	90	44	150	8	65	68
   39-55PW(S)	100	1:1	177	55	56	88	6	55	30
   40-80PW(T)	103	1:1	166	80	44	133	7	59	60
   43-80PW(T)	110	1:1	149	80	41	130	7	53	64
   47-45PW(S)	120	2:2	166	45.2	61	80	6	42	40
   47-55PW(S)	120	1:1	152	55	51	88	6	48	34
   48-70PW(T)	122	1:1	133	70	41	115	6	47	55
   53-45PW(S)	135	2:2	143	45.2	57	79	7	41	46
   53-55PW(S)	135	1:1	133	55	50	86	6	42	40
   54-64PW(T)	137	1:1	115	64	39	100	5	39	51
   54-70PW(HD)	137	1:1	109	70	35	116	6	40	62
   61-64PW(T)	155	1:1	90	64	31	101	5	30	58
   64-55PW(S)	160	1:1	98	55	38	98	5	36	48
   64-64PW(T)	160	1:1	85	64	30	115	6	34	61
   68-55W(S)	175	1:1	85	55	34	85	4	28	48
   68-64PW(T)	175	1:1	78	64	28	105	5	30	65
   72-48PW(S)	182	1:1	90	48	36	78	5	33	39
   72-55PW(T)	182	1:1	85	55	30	90	5	27	51
   77-48PW(S)	195	1:1	77	48	35	80	4	28	42
   77-55PW(T)	195	1:1	67	55	27	88	4	24	55
   80-48PW(T)	200	1:1	72	48	33	74	4	25	56
   90-48PW(T)	230	1:1	56	48	25	78	4	19	50
   100-40PW(T)	255	1:1	58	40	33	63	3	21	34
   110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
   120-31PW(S)	305	1:1	49	31	35	49	3	17	26
   120-34PW(T)	305	1:1	45	34	30	55	3	16	35
   120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
   130-34PW(T)	330	1:1	40	34	27	55	3	15	37
   140-31PW(S)	355	1:1	36	31	26	48	2	12	30
   140-34PW(T)	355	1:1	31	34	20	53	3	10	39
   140-34TW(T)	355	2:1	33	34	21	56	3	12	41
   150-31PW(S)	380	1:1	32	31	23	49	3	11	32
   150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
   165-31PW(S)	420	1:1	23	31	15	48	5	7	36
   180-27PW	460	1:1	23	27	24	46	6	7	38
   200-27PW	500	1:1	23	27	23	45	6	7	36

Finest quality, it has passed the ISO 19001:2008, ISO 14001:2004, FDA and LFGB.

Application:

Used for filter and printing Textile Printing,Ceramic Printing,Glass Printing,Graphics Printing,Electronic Printing,CD/DVD Printing,.
