Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration
Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration
Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration
Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration
Specifications
Brand Name :
Huatao
Model Number :
HT-CQ-011
Certification :
ISO
Place of Origin :
China
MOQ :
10 sq.mt
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 sq.mt per month
Delivery Time :
5-12 days
Packaging Details :
wooden packet with foam plastic packet bag
Price :
Price accept negotiation
Color :
white,blue
Material :
Polyester monofilament
Use :
Industry filter
Description

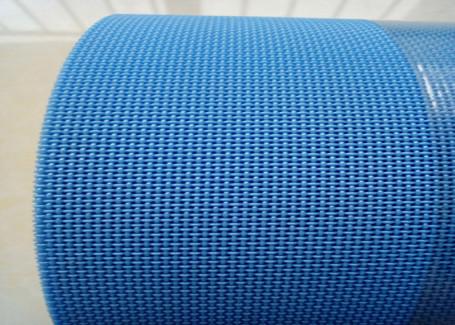

Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration

Polyester linear screen cloth Description

The 2-shed and 3-shed Polyester linear screen cloths are mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making, etc. Also could be used in high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.

Polyester Linear Screen Cloth Belt Specificaiton

Weaving Type Model Thread Diameter(mm) Density(No.s/cm) Strength (N/cm) Air Permeability(m³/m²h)
Warp Weft Warp Weft
2-shed plain weaving fabric 05082 0.7 0.8 4.7-5.0 4.8-5.0 940 >20000
05102 1.0 1.0 4.7-5.2 4.3-5.0 1600 >15000
06702 0.7 0.7 8.0 7.0 ≥1600 11000
07102 0.7 0.7 6.6-7.0 4.3-4.6 1100 >15000
08552 0.55 0.55 7.5-8.0 8.5-9.0 850 850-6500
09452 0.45 0.45 10.0 8.6 1600 1600
09502 0.55 0.55 8.5-9.0 10-10.5 750 >10000
12502 0.55 0.55 13.5 8.5 1800 6500
3-shed plain weaving fabric 08603 0.55 0.6 10.0 9.0 1600 14000
08903 0.9 0.9 7.8-8.0 5.0-5.5 2100 87500-8500
07803 0.7 0.8 8.0 8.0 1600 10000
20353 0.3 0.35 22.0 14.5 1200 13000
20403 0.3 0.4 22.0 14.5 1200 13500

Polyester linear screen cloth Edge

Edges sealed by glue,mesh,heat resistant farbic

Polyester linear screen cloth Aperture

400µ,500µ,600µ,700µ,800µ,1000µ,1500µ,1800µ,2000µ,2500µ,3000µ​

Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration Industrial Belt Filter Cloth ,100% Polyester Liner screen cloth for filtration

Applications of Polyester linear screen cloth

Polyester linear screen cloths used in paper making machines,such as paper pulps making,sulplate pulp packing ,caidboard pulp,fiberboard

Polyester linear screen cloths is widely used as dryer part in water treatment industry

Features of Polyester linear screen cloth

1. High strength

2. Long life

3. Convenient to use

4. Numerious bariety

5. Complete specifications
