Lead Acid Battery Production Lines Heat Sealing Machines High Efficient
Lead Acid Battery Production Lines Heat Sealing Machines High Efficient
Lead Acid Battery Production Lines Heat Sealing Machines High Efficient
Lead Acid Battery Production Lines Heat Sealing Machines High Efficient
Specifications
Brand Name :
HUATAO
Model Number :
HT-
Place of Origin :
China
MOQ :
1 set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
15-25 working days
Packaging Details :
wateproof film + pallet
Price :
Price accept negotiation
Certification :
ISO
applicable battery size :
maximum 600X280X300
production efficiency :
1000 / 8 hours
power :
15KW
Description

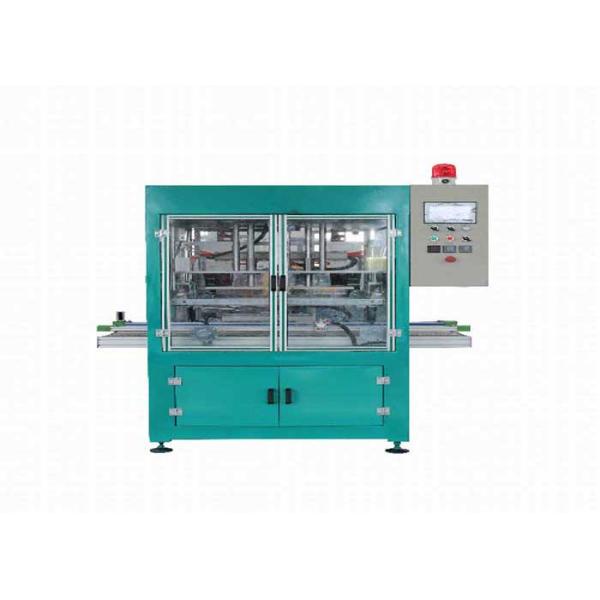

Lead Acid Battery Production Lines Heat Sealing Machines High Efficient

First, technical parameters:

1, applicable battery size: maximum 600X280X300 / minimum 170X100X175

2, production efficiency: 1000 / 8 hours

3. The hot plate advances and retreats the cylinder to adopt heat-resistant type, and the movement direction adopts the parallel positioning in the middle; when the hot plate is heated, the parallel adjustment can be performed.

4, power: 380V/50Hz

5, power: 15KW

6, gas source: 0.6-0.8Mpa 0.75 cubic meters / h

7, volume: see the layout

8, transport form: high-strength plastic chain plate

9, equipment panel line height: 720 ~ 740mm (including the height of the foot cup),

10. The ground cups are all made of stainless steel;

11, the total installed weight: 1000Kg

12, the head adjustment: motor adjustment, touch screen control.

13, mold: general other molds.

Second, the equipment features:

1, a wide range of adaptation to meet a variety of customer products.

2, the adjustment is simple, just adjust the product, just change the mold, adjust the position of the machine head.

3, the device uses PLC to automatically detect the presence or absence of batteries without the need for operators.

4. The height of the adjustment head is adjusted by stepping, the adjustment precision is high, and no high-intensity labor is required for the staff.

5, using integrated heat sealing mold heating evenly, easy to replace, to ensure the quality of heat sealing.

6, fully enclosed work, security, environmental protection.

Lead Acid Battery Production Lines Heat Sealing Machines High Efficient
