3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Specifications
Warranty :
Lifetime, 1 Year
After-sale Service :
Online technical support, Onsite Inspection, Free spare parts, 24 hours online service
Project Solution Capability :
graphic design, 3D model design, Cross Categories Consolidation
Application :
Parking Lot, Dam ,Driveway
Design Style :
Traditional
Place of Origin :
Shandong, China
Brand Name :
TL
Model Number :
G001
Type :
3D Geomat
Function :
Protect
Keyword :
Grass Paving
Product name :
Grass Paver
Color :
Black
Material :
High-density Polyethylene Plastic
Advantage :
Easy Set
Height :
38mm 48mm 68mm
Usage :
Soil Slope Protection System
Thickness :
0.8mm-2.0mm
Packaging Details :
*Plybag or follow customers' demand.
*Highly keep away from fire and high temperatures.
*Logo marked is accepted on the package.
Supply Ability :
10000 Square Meter/Square Meters per Day
MOQ :
1000 square meters
Price :
$0.25/square meters 1000-4999 square meters
Description
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Product Customized
Material：Hdpe
Color: Green/Black
Width: 2m
Length: 30-50m
3D Geomat, also known as erosion control mat, is a kind of 3D network structure made of high molecular synthetic material. The texture is loose and flexible, and 90% of the space can be filled with soil and sand.Plant roots can grow through it in a balanced manner.The turf after growth makes the mat turf and soil surface be firmly combined together, and builds a protection system with its own growth ability on the slope.
ITEM
EM2
EM3
EM4
EM5
Mass per Unit(g/㎡)
≥220
≥260
≥350
≥430
Thickness(mm)
≥10
≥12
≥14
≥16
MD Tensile Strength(KN/m)
≥0.80
≥1.4
≥2.0
≥3.2
CMD Tensile Strength(KN/m)
≥0.80
≥1.4
≥2.0
≥3.2
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Product Application

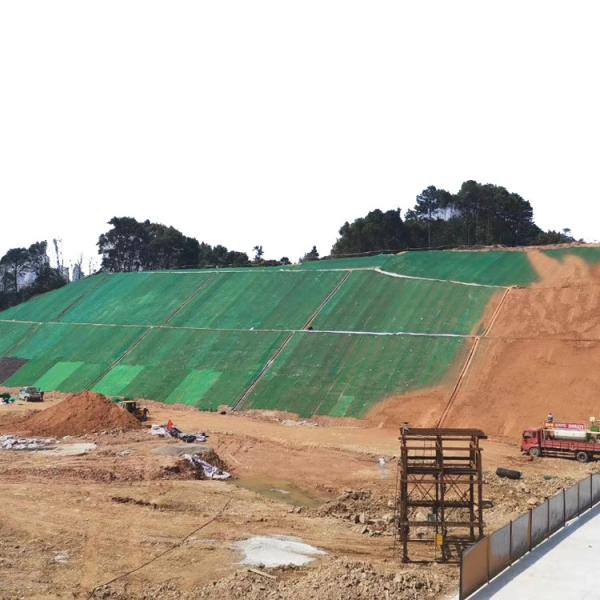

1. Protect earth protect earth from being eroded by winds and rains before grass growing up. 2. Keep grass keep grass seeds distributed in slope firmly, and avoid to be washed. 3.Absorb thermal absoro thermal energy abundantly, increase ground wet, promote seed sprout, and prolong growth term of plants 4, Plants can form composite protection layer and endure wash with high water and fast speed. 5. Replace ong-lasting replace long-lasting slope protecion materials such as concrete, pitch, block etc, and can be used in slope protection such as road. railway, river, dam. mountain slope. etc.
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Certificate
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
COMPANY SHOW
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Factory
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
Which efectively suppresses the erosion of the storm runof,increases the shear strength of the soil, reduces the pore water pressure and the self-gravity of the soil, thereby greatly improving the stability and erosion resistance of the slope.
Product Advantages
The slope protection technology of 3D Geomat combines the advantages of geomat and plant slope protection, achieves the best slope protection effect.When the veaetation coveraae of the slope reaches more than 30%.it can withstand the scour of liaht rain, and when it reaches more than 80%, it can withstand the scour of heavy rain.When the plants are flourishing.it can withstand water flows(up to 6m/sec),which is more than twice that of ordinan turf. Geomat has a good effect on reducing the evaporation of water from the slope soil and increasing the amount of infitration. Also,because the geomat material is black PE. it has the function of heat absorotion and heat preservation,which can promote seed germination and be beneficial to plant growth.
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
3D Geomat for Promoting Seed Sprout and Slope Stabilization in Railway Construction
FAQ
Q1: Are you trading company or manufacturer? A:We are officially licensed MANUFACTURER specializing in the research, production and supplying of geosynthetics with 20 years experience Q2: How about the quality of your products? A: We have professional and advanced brand machine production line and quality control center. Each batch of products will be sampled before package and there also has final inspection before shipment Q3: Can you provide sample? A:Yes,we can offer free samples of some items for quality evaluation. Q4: Can you accept small order? A: Yes.Our minimum order quantity is 1000㎡ Q5: Do you accept customized design order? A: Yes.We welcome customized design orders Q6: What is your lead time? A:General within 7-15 days, large order can be negotiated Q7: What's your delivery term? A: We can accept EXW, FOB, CIF etc (follow customers' request) Q8. What is the payment way? A: Online Bank Payment，T/T,L/C,D/P D/A,PayPal,Western Union
