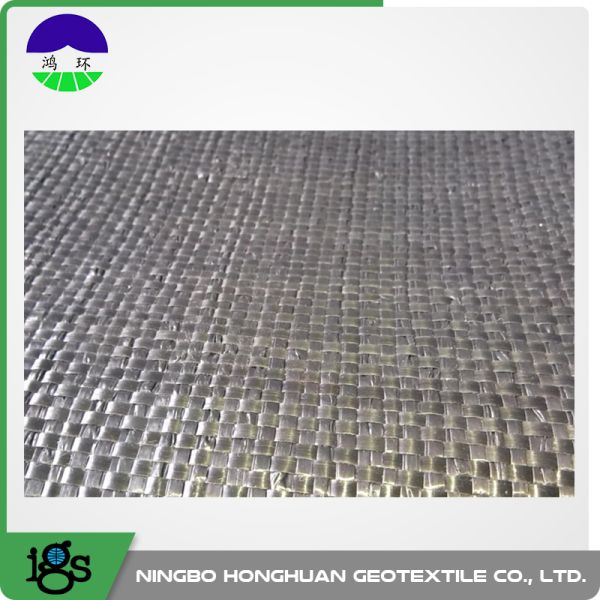

Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric
Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric
Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric
Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric
Specifications
Brand Name :
HongHuan
Model Number :
SWG200lbs
Certification :
ISO9001
Place of Origin :
China
MOQ :
10,000㎡
Price :
USD0.26/㎡~USD2.6/㎡
Payment Terms :
T/T, LC
Supply Ability :
3,000,000㎡/Month
Delivery Time :
30 days
Packaging Details :
PVC or PP Fabric Rolls
Application :
road construction
Color :
black
Feature :
low weight good stablization
Function :
separation
Geotextile Type :
woven geotextile
Material :
PP
Product Name :
PP silt film woven geotextile
Unit mass :
136g/㎡
Description

Black PP 136G Silt Film Woven Geotextile Circle Loom Grab Tensile 900N

Product Description:

Split Film Woven Geotextile is a kind of cost-effective woven geotextile made from Polypropylene slit film yarns. This geotextile is now mainly used for reinforcment and separation application . If you are building a road , constructing a parking lot, stabilizing material staging areas or repairing/installing a gravel driveway, woven geotextile perform at a high level and save time and money. And in most cases, our woven geotextile offer an added advantage over any geogrid on separation function.

Specification Data Sheet :

PROPERTIES

TEST METHOD

UNIT

NOMINAL VALUE

Mass Per Unit Area

ASTM D 5261

g/m2

136

Tensile strength, MD

ASTM D 4595

kN/m

21.5

Tensile strength, CD

ASTM D 4595

kN/m

21.5

Elongation, MD

ASTM D 4595

%

20

Elongation, CD

ASTM D 4595

%

20

Apparent Opening Size

ASTM D 4751

mm

0.41

Permittivity

ASTM D 4491

sec-1

NA

Water Flow Rate

ASTM D 4491

l/min/m2

160

Trapezoidal Tear Strength

ASTM D 4533

kN

0.30

CBR Ejection Force

ASTM D 6241

kN

1.60

UV Resistance

(% retained after 500 hours)

ASTM D 4355

%

70

ROLL DIMENSIONS

Roll Width

m

5.2

Roll Length

m

200

Roll Weight

Kg

145

Product Function:

  • Embankments reinforcement
  • Earth reinforcement
  • Soft soil stabilization
  • Road contruction
  • Railway foundation

Some Details Of Product:

Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric

Product Features:

  • Width Range From 3.81m to 5.33m
  • Low elongation
  • High strength
  • Resistance to the biological and chemical environments
  • Easy to install
  • Resistant to UV

Product Package and Storage:

  • Split film woven geotextiles are supplied on 4' cardboard cores and wrapped in black polyethylene sheeting .
  • Geotextile can be folded to a suitable width if it's needed .
  • All materials are stored indoors to protect them from exposure to UV.

Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric Grab Tensile Geotextile Fabric For Roads , Black 136g Woven Polyethylene Fabric
