Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Specifications
Brand Name :
OEM
Model Number :
geotextile
Certification :
ISO certificate
Place of Origin :
China
MOQ :
1000 square meters
Price :
USD0.33-USD1.23per square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60, 000 Square Meters Per Day
Delivery Time :
7-10 working days
Packaging Details :
Standard Port Packing or According to Customer′s Requirements
Advantage :
High Density
Name :
Woven Geotextile
Specification :
100gsm 150gsm 200gsm 250gsm 300gsm 800gsm
Material :
PP
Certificate :
ISO9001:2008
Length :
Cutomized
Description

Product Description
High Reinforced & Stabilization Woven Geotextile Fabric is woven with high-strength polypropylene (PP) wire drawing. With high strength and high durability. It is suitable for the reinforced engineering with strict requirements for long-term design life. It consists of high-strength polypropylene fibers with high strength and low creep. Widely used in the construction of access roads and the establishment of a stable initial load-bearing platform to improve project quality.
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Features & Benifits
Outstanding filtration characteristics with high tensile strength and low elongation
Extraordinary solution for subgrade stabilization and base reinforcement
High quality, durability and cost effectiveness
Advantages:
(1) High strength, due to the use of plastic flat, in the dry state can maintain adequate strength and elongation.
(2) Corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) Permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) Anti-microbial resistance of microorganisms, insects are not compromised.
(5) To facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.

Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Products Datasheet

Woven Geotextile
item
Specification
20-15
30-22
40-28
50-35
60-42
80-56
100-70
Vertical Breaking strength(KN/M≥)
20
30
40
50
60
80
100
horizontal Breaking strength(KN/M≥)
15
22
28
35
42
50
70
vertical Elongation at break(%)
28
CBR Bursting strength(KN)
1.6
2.4
3.2
4
4.8
6
7.5
Vertical permeability coefficient(cm/s)
0.0001-0.01
Unit area weight(g/m2)
120
160
200
240
280
340
400
Deviation rate(%)
±10

Products Display:

100% Virgin Material: 100% virgin exclusivefomulation material, make the bag No Smell Good Strength, Bright Color.

Advanced equipment and excellent weaving technology, making fabric with high-density, good toughness and strength.
Available width 1m to 8m Ultrasonic cutting. more neat and smooth. Anti-uv to the processing development, in order to increase the service life of the product. Mechanical packaging, professional and neatly.

Products Application

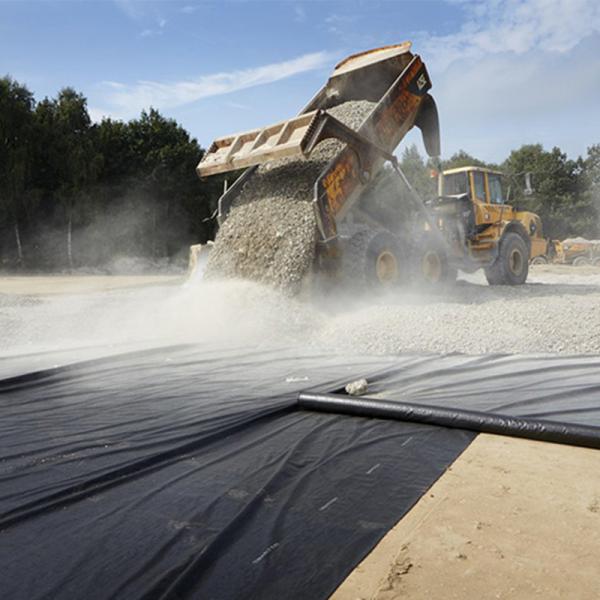

It can be widely used in railway, highway, sports hall, dams, hydraulic construction, tunnel, coastal beach, land reclamation,environmental protection and other projects, can play a filtration, drainage, separation, protection, reinforcement effect
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil ReinforcementCertified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement

Packing &Shipping

Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement

Certified Woven Fabric Stabilization PP Woven Geotextile For Soil Reinforcement


FAQ:

Q: Can you send samples?

A: Yes, we are very happy to provide you with free samples to check the quality of our products.

Q: Are you a manufacturer or a trading company?
A: Manufacturer, with are registered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, nonwoven geotextile, woven geotextile, geogrid and other products. So we have the competitive price with best quality.

Q: Can you produce the product according to customers' requirements?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.

Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit.

Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
