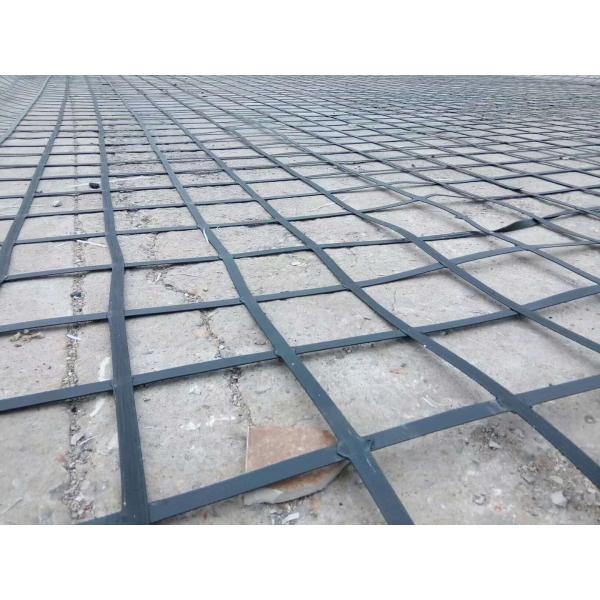

GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction
Specifications
Brand Name :
zhongloo
Model Number :
Steel plastic geogrid
Certification :
ISO
Place of Origin :
China
MOQ :
1000 square meters
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
5-8 work days
Packaging Details :
Woven Bags
Type :
Geogrids
Product Material :
PE/PP+Steel wire
Elongation :
13%
Roll Width :
2/3.95/4.0/5.0/5.2/5.95m
Roll Length :
50m/100m/customer Requirement
Mesh Size (mm) :
12.7*12.7/ 25.4*25.4/ 40*40
Feature :
High Strength/Low Creep Deformation
Tensile strength :
30KN-100KN
Product name :
Steel plastic geogrid for soil reinforcement
Description

High tensile strength road construction PE steel wire biaxial Steel Plastic geogrid

Product Description

High strength polyester warp-knitting geogrid adopts high strength, high modulus, low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled together by high strength long polyester fiber forming tough conjunction.Then it forms into mesh size product after coated with high quality water-soluble PVC which improves its strength, various technical standards and gives full play of its mechanical property.

GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction

Steel Plastic Composite Geogrid Technical Parameter (GB standard)
Item
Specification
Type
GSZ 30-30
GSZ 50-50
GSZ 60-60
GSZ 70-70
GSZ 80-80
GSZ 100-100
GSZ 150-150
Vertical and horizontal ultimate tensile strength≥(KN/M)
30
50

60
70
80
100
150
Vertical and horizontal ultimate tensile strength elongation≤(%)
3
Peel force of connection point≥(KN)
300
500

Steel-plastic geogrid is widely used in soft soil foundation projects such as roads, railways, dams and ports, as well as high retaining wall works.

1. Soil Stabilization
2. Sub grade reinforcement
3. Earth Embankments over piles
4. Landfill, Bridging of voids and sinkholes
5.Retaining Retaining Walls / Steep Slopes
6.Road, Runways or Pavement construction

GB standard PE Biaxial Steel Plastic Geotextile Geogrid Road Construction

FAQ

Q:Can you send samples?
A:Yes,we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 million yuan.It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A:General within 3-7days after received the deposit

Q:How to control product quality?
A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping
