100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer
100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer
100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer
100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer
Specifications
Brand Name :
OEM
Model Number :
Plastic HDPE Geocell
Certification :
ISO certificate
Place of Origin :
China
MOQ :
1000 square meters
Price :
USD0.56-USD3.06 per square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60, 000 Square Meters Per Day
Delivery Time :
7-10 working days
Packaging Details :
Standard Port Packing or According to Customer′s Requirements
After-sales Service :
Support for Quality Traceability
Corrosion Resistance :
Excellent Corrosion Resistance
Filler :
Concrete Materials, Soil & Rock
Application Field :
Railway, Highway, Mine, Port, Airport, Slope Prote
Function :
Distributing Load, Anti-deforming, Non-skid
Feature :
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Installation :
Rapid Construction
height :
50mm~250mm
Description

100% Virgin Black Smooth Texture Perforated Geoweb Honeycomb Gravel Grid Soil Stabilizer Plastic Geocell

Geoweb Honeycomb Gravel Grid Soil Stabilizer Plastic Geocell Description:

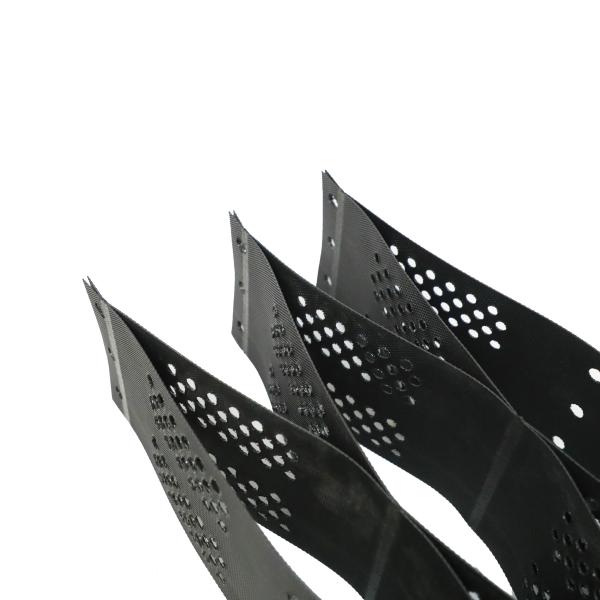

HDPE Geocell is made by welding the strengthened HDPE sheets by a high-power ultrasonic. We can produce surfaces like smooth, texture or perforated. It is a structure of three-dimension product.
HDPE Geocell is easily folding and convenient for transportation. When construction, the HDPE geocell can be working as a network and will be launched into a three-dimensional honeycomb grid. HDPE Geocell has strong sidewise restraint and high rate of stiffness.
It is light materials, wear-resistant, chemically stable, photo-oxidation, acid and alkali, suitable for different soils and soil conditions such as desert. Besides, it has High lateral limitations and non-slip, deformation, effectively enhancing subgrade's bearing capacity and distributed loads.

HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.

Technical Parameters:
Material Properties Unit Test Method
Cell Depth mm 75 100 150 200
Polymer Density g/cm3 0.935-0.965 ASTM D 1505
Environmental Stress Crack Resistance Hours >400 ASTM D 5397
Environmental Stress Crack Resistance Hours 6000 ASTM D 1693
Carbon Black Content % 1.5% - 2.0% ASTM D 1603
Nominal Sheet Thickness Before Texturing mm 1.27 -5%,+10% ASTM D 5199
Nominal Sheet Thickness After Texturing mm 1.52-5%,+10% ASTM D 5199
Strip Puncture Resistance N 450 ASTM D 4833
Seam Peel Strength N 1065 1420 2130 2840 EN ISO13426-1B
Seam Efficiency % 100 GRI-GS13
Nominal Expanded Cell Size (width x length) mm 320x287,475x508 etc
Nominal Expanded Panel Size (width x length) m 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.

100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer

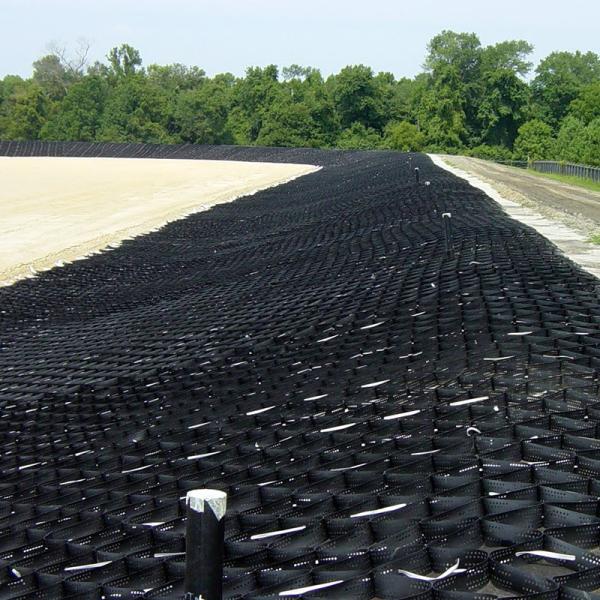

HDPE Geocell Application:

To stable the railway roadbed.
To stable the highway roadbed.
To bear the load of dike or retaining wall.
For the improvement of shallow riverway.
To support the pipeline and sewer foundation.
To prevent landslide. HDPE Geocell work as a heavy-duty hybrid force to retain wall.
To be used as an independent wall, wharf and breakwater.
For the desert, beaches and riverbed, the river bank's regulation, reinforcement.

Geocell Packing:

100% Virgin HDPE Black Perforated Geocell Ground Grid Geoweb Soil Stabilizer
