Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Specifications
Brand Name :
OEM
Certification :
ISO9001
Place of Origin :
China
MOQ :
500sqm
Price :
US $4.28-7.35 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Square Maters/ Day
Delivery Time :
7-12 working days
Packaging Details :
according to customers requirements
Type :
grass paver grid
Warranty :
more than 5 years
Application :
Outdoor, Parking Lot Grass Reinforcing
Specification :
38mm, 48mm, 68mm
Function :
Protect Turf
Usage :
Construction
Description

Product Description

Basic Details:

Material: HDPE

Main Height:38mm,48mm,68mm

Piece size(mm):390*410, 500*500

Pressure strength:200-250 tons

Color: Green and Black

Main features: 1.UV resistance

2.High pressure strength---250Tons

3. Weather resistance

HDPE grass paving grids paver turf grid gravel grids

Introduction:

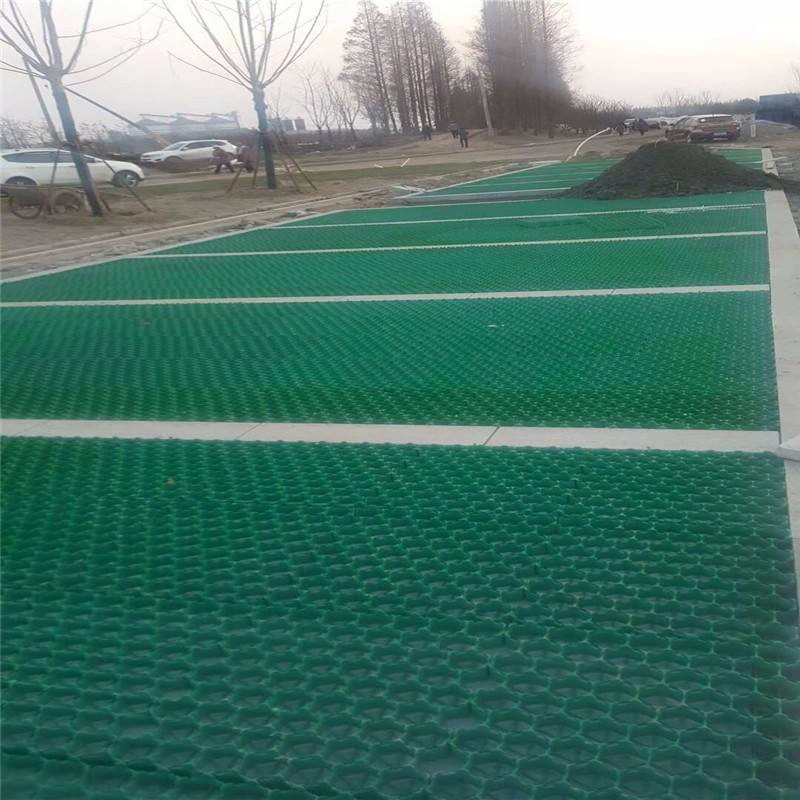

Plastic grass paver is a turf stabilizing system, a green choice for low-impact parking. Grass paver Reinforcement grids provide amazing stability, grass protection and sustainable drainage, while delivering the desirable visual and natural effect of grass paving. A beautiful, sustainable and economical solution to manage storm water and reduce heat island effects in public places, parking and traffic areas.


Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid

2.Technical Data:

Product Name Plastic Grass Paver
Model GPP-38 GPP-48 GPP-68
Size(mm) 410×390×38 410×390×48 410×390×68
500×500×38 500×500×68
Pressure Strength 160ton/sqm-250ton/sqm
Material HDPE ( high-density polyethylene )
Product Type Virign material and Recycled Material
Durability at least 4 years in neutral ground of 4 < pH < 9
Working Temperature Apply in temperature of -10ºC to 50ºC
Anti HCL 30%x24h, no visible change
Thermal Aging 70ICx24h, no visible change
Anti UV UPE>30 T(UVA)AV<5%, qualified
3.Advantages
1.Reduce ground reflection, reduce ground heat radiation
2.Reduce the ground acoustic wave transmission, reduce noise pollution.
3.Reduce dust and purify the air
4.Natural leakage of rainwater, soil does not lose, no water phenomenon
5.Free combination and disassembly, reusable
6.Easy to install.
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid

4.Features:
-Impact resistant, anti-aging, anti-UV
-Abrasion and corrosion resistance, good flame retardancy, strong grass planting function
-Reduce ground reflection, reduce ground heat radiation
-Reduce the ground acoustic transmission, reduce noise pollution
-Reduces dust and purifies air
-Natural seepage of rainwater, no loss of soil, no waterlogging
-Natural circulation of water, air and fertilizer, no soil caking
-Increases green area
-Simple construction and light weight
-Free combination and disassembly, reusable
-Can withstand a weight of over 300T/m2

Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid

5.Funcation:

1) Make reinforcement treatment for soft soil foundation
2) Protect steep slope
3) Used in highway, railway, airport, wharf
4) Especially in Airslaked Mountain, desert and swamp land etc.

Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid


6.How to install?
1. Start in corner of the project area with male tabs of first grid facing towards the center of the area
2. Line up female slots of next grid over male tabs of the first grid.
3. Lock grid into its place.
4. Repeat until the area is covered with a connected grid.
5. Gravel fill: Fill the grid with the desired aggregate to top of the grid.
6. Lightly compact to settle.
7. Grass fill: Fill the grid with soil and seed.
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
7. Application:

1.Grass Parking Lots
2.Overflow grass car & bus parking lots
3.Grass Fire Truck Access routes / Fire Lanes
4.Handicap access routes
5.Golf cart paths
6.Emergency grass access roads
7.Residential access and parking spaces
8.Grass Driveway and grass shoulders

Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid
Parking Lot Used Gravel Grass Grid HDPE Grass Paver Gravel Driveway Grid



FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geogrid,Geotextile,Geocell,Geomembrane,Geocomposite,Spunbond Nonwoven Fabric


Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
