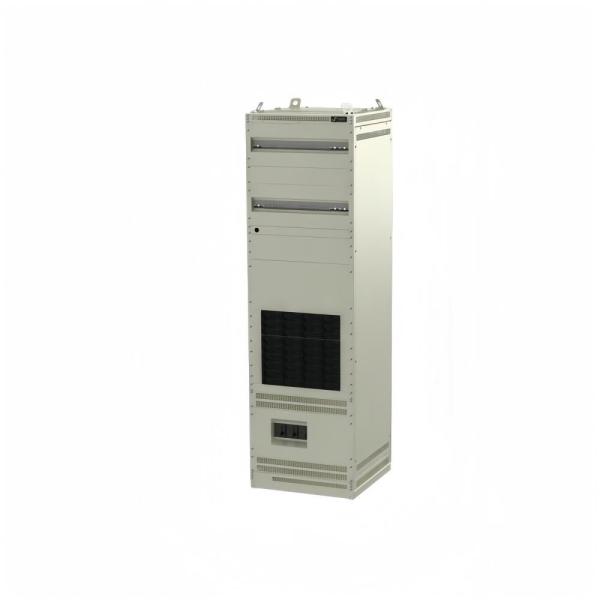

Flatpack2 Eltek Outdoor Cabinet DC / DC System 380V 54V 72kW 3000W SHE Module
Flatpack2 Eltek Outdoor Cabinet DC / DC System 380V 54V 72kW 3000W SHE Module
Specifications
Brand Name :
Eltek
Model Number :
CDT32442.xxx
Certification :
IEC/EN 62368-1:2020/AC:2020/A11:2020
Place of Origin :
China
MOQ :
10
Price :
USD3300-6600
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
1 week * depends on quantity
Packaging Details :
Original Packed by Carton
Model :
Flatpack2 DC DC 380V 54V System 72kW
Part number :
CDT32442.xxx
Input Voltage (operating range) :
260 - 400 VDC
Maximum current :
295.2 A (2x 147.6 A)
Protection (module level) :
Fuse, shutdown when VIN is out of range
Protection (cabinet level) :
2x 160 A MCCB
Output Voltage (default) :
54.5 VDC
Voltage (adjustable range) :
50 - 55 VDC
Max power, nominal input :
72 kW
Description

Flatpack2 DC/DC 380V/54V 36kW System 3000W CDT31242.xxx SHE Module Smartpack2 Control and Monitoring

  • Using the Flatpack2 DCDC 380/48 3000 SHE module with Eltek’s feature-rich Smartpack2 control and monitoring unit enables sites to benefit from utilizing 380 VDC as a transmission voltage, either for a competitive alternative to traditional UPS in Data Centers, or for central power plants in Telecom site expansions.
  • Integrating state-of-the-art, super high efficiency converter modules with Eltek’s feature rich Smartpack2 monitoring and control unit, the high performance Flatpack2 DC/DC 380V/54V Power System converts the 380 Vdc bus voltage down to a regulated 54 Vdc with a module efficiency of 98.2 %.

    Key features

    • Input protection
    • Versatility
    • Scalability
    • Modular – build as your load grows
    • Super High Efficiency (SHE)
    • Smartpack2 controller
    • Hot pluggable
    • 50-55 Vdc adjustable output
    • Patented SHE technologyFlatpack2 Eltek Outdoor Cabinet DC / DC System 380V 54V 72kW 3000W SHE Module
