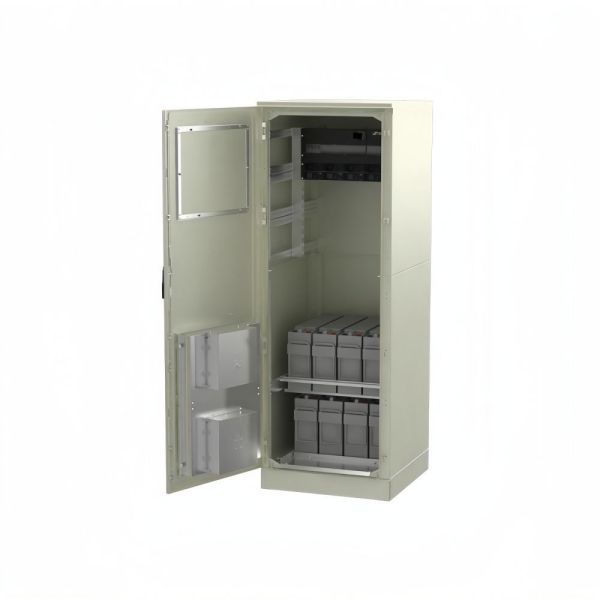

CTEJ0834.4000 Rectiverter Outdoor System 6KVA AC 12,8-21KW DC 50Hz / 60Hz
CTEJ0834.4000 Rectiverter Outdoor System 6KVA AC 12,8-21KW DC 50Hz / 60Hz
Specifications
Brand Name :
Eltek
Model Number :
CTEJ0834.4000
Certification :
IEC/EN 62368-1:2020/AC:2020/A11:2020
Place of Origin :
China
MOQ :
10
Price :
USD4600-9600
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
1 week * depends on quantity
Packaging Details :
Original Packed by Carton
Model :
6 KVA+12,8 KW DC
Part number :
CTEJ0834.4000
AC Voltage (default) / (adjustable range) :
230 VAC / 200 - 240 VAC
Frequency (default inverter mode) :
50 Hz(adaptive)
Frequency (set-able inverter mode) :
50Hz or 60Hz
Power maximum(continuous / overload (<15s) :
60kW (75kVA) /112kVA
Current maximum (continuous/ overload (<15s) :
10.9ARMS/16.3ARMSper module
Current (maximum) Quick trip (20ms)1) :
109A (10x nominal)per module
THD :
< 1.5 % at resistive load
Output Power :
33.0 kW
Current (maximum @VOUT≤ 48 VDC) :
687.5A
Description

Rectiverter Outdoor system 6 kVA AC + 12,8-21 kW DC AC and DC feed into one common unit CTEJ0834.4000

  • The Rectiverter outdoor system combines both AC and DC feed into onecommon unit. Simultaneously it provides AC backup power for 230 VACloads, and 48 VDCpower for DC loads and battery charging.
  • The total DC output can be configured up to 21kW DC load where thelimitation for AC load is set to max 6 kVA.
  • Together with our Type 3 cabinet platform it’s designed for a variety ofapplications and can be tailored to fit your specific needs, with a protectionclass of IP55.CTEJ0834.4000 Rectiverter Outdoor System 6KVA AC 12,8-21KW DC 50Hz / 60Hz
