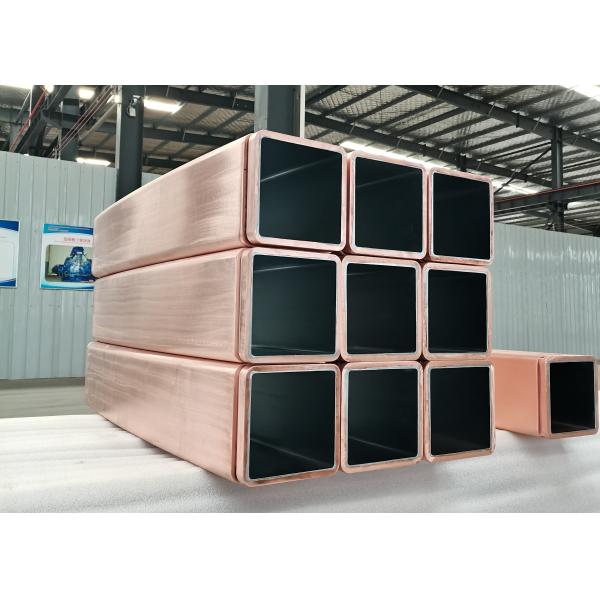

R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe
R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe
R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe
R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe
Specifications
Model Number :
R9-180X180mm
Certification :
IOS
Place of Origin :
Luoyang,China
MOQ :
2 Pieces
Price :
Negitionable
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
30000 Piece/Pieces per Year
Delivery Time :
30work days
Packaging Details :
Fumigation Treatment Wooden Case or customized
Name :
Copper Mould Tube
Material :
CuCrZr
specification :
R9-180X180mm
Yield per piece :
≥ 6000 Ton per casting tube
Cu(Min) :
99%
Application :
CCM Machine
Ultimate Strength (≥ MPa) :
405
Wall Thickness :
10mm
Description

R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe

Introduction

Copper Mold tube is an accessory used for cast steel continuous casting machine. The molten steel is directly cast in the mold copper tube, and the steel billet is continuously cooled and formed in the copper tube. In order to solve the problem that the copper tube is in contact with the cooled billet shell and separated from time to time during the working process, the mold copper tube is still bent to one side Square or rectangular copper tube, the inner cavity of the copper tube is tapered from the upper mouth to the lower mouth, and the inner cavity of the copper tube is a double-cone or tri-cone or multi-cone, or a parabolic cavity from the upper mouth to the lower mouth. Shape, the taper of the upper section or the upper part is greater than the taper of the lower section or the lower part. It is best that the taper of the straight surface is greater than the taper of the curved surface. Avoid the air gap between the blank shell and the inner wall of the copper tube during the working process, which is more in line with the contraction change law of the blank shell.

Product features

1, Our company has designed the maximum heat transfer rate from the meniscus to the bottom of the copper tube.

2, Our company can design the best internal geometry for customers according to the actual situation of steel making, and ensure better use effect and competitive cost performance.

Parameters

Copper Mould Tube Size (mm) Thickness (mm) Length (mm) Radius (mm) Design or Taylor-Made
ODM & OEM
Billet Square 50x50 - 680x680 6 - 80 600 - 1250 3000 - 17500 Exactly follow your drawing and requirement
Copper Mold Tubes or straight
Bloom Rectangle 50x50 - 680x680 10 - 80 600 - 1250 3000 - 17500 Exactly follow your drawing and requirement
Copper Mould Tubes or straight
Slab Copper Mold Tube 50x50 - 680x680 6 - 80 600 - 1250 3000 - 17500 Exactly follow your drawing and requirement
or straight

Application

The copper mould tube is widely used in CCM Machine . The main function of copper mould tube is to solidify the molten steel to the required size and shape.

R9 180x180mm Copper Mould Tube CuCrZr Square Copper Pipe

FAQ

Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?

A2. Our products are high quality and low price.

Q3. Any other good service your company can provide?

A3. Yes,we can provide good after-sale and fast delivery.

Q4. When is the fastest delivery time?
A4. Depends on product type and quantity.
