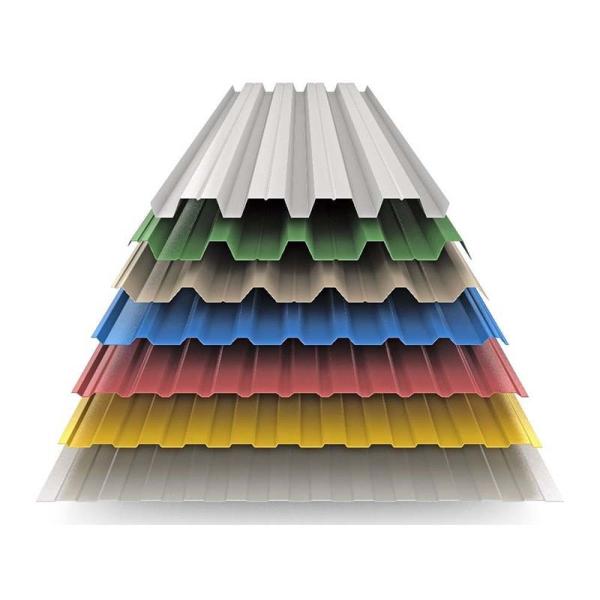

Hot Dipped Color Coated Galvanized Roof Sheet PPGI

Specifications

Brand Name :

Chengshun

Model Number :

YX14-65-850, YX51-360, YX25-210-680, YX25-196-980, etc.

Certification :

AiSi, ASTM, bs, DIN, GB, JIS

Place of Origin :

Shandong, China

Color :

All Ral color or customized according to drawing

Color Coat :

10/15, 15/20 or as required

Base Sheet :

Hot dipped galvanized steel sheets, PPGI

Zinc Coat :

30-275g/m2

Thickness :

0.12-3mm or as required

Width :

600-1500mm or as required

Length :

1-18meters or customized

Organic Coat :

PE, SMP, HDP, PVDF, etc.

Description

HOT DIPPED COLOR COATED GALVANIZED ROOF SHEET PPGI

Color coated roof sheet PPGI is to apply the organic coating on the hot dipped galvanized steel sheet products. In addition to the protective effect of zinc coat, the organic coating on the surface also plays the role of isolation protection and rust prevention, and the service life is longer than that of the hot galvanized sheets. The zinc content of hot-dip galvanized substrate is generally 180g/m2 (double-sided), and the maximum zinc content of hot-dip galvanized substrate used for external construction is 275g/m2.

Our company is a professional color coated roofing sheet manufacturer with ISO CE certificates and big factories of 50 000 tons per month productivity. We supply color coated roofing sheets from color coat 10-35um or more, including galvanized and galvalume, aluminium and stainless base sheet, T shaped IBR, wave shaped, trapezoidal, angled shape, glazed tile and other types available. We have large stock for fast delivery and offer free sample and customization service. Main markets distributing in North America, South America, Africa, Southeast Asia as well as Oceania, our company built stable cooperation with customers from more than 100 countries and regions.

PARAMETER OF PPGI COLOR COATED ROOF SHEET

Product Name	Color coated steel roof sheets
Thickness	0.12-3mm or customized
Model Number	Wave shape: YX14-65-850, YX35-130-780, YX18-76-836/988, etc. Angled shape: YX51-360, YX60-490, YX75-605, YX71-380-760, YX51-410-820, etc. Trapzoidal T shape: YX25-210-680, YX25-200-1000, YX8-250-1000, YX18-100-1100, YX8-130-910, YX35-190-760-950, etc. Glazed tile: YX25-196-980, YX25-196-780, YX28-207-1035, YX28-207-828 YX25-210-840/1050, YX28-205-820/1025, YX25-250-1000, YX30-245-980, YX35-125-750/875, YX35-238-950, YX35-190-760/950, YX35-280-840, YX38-300-900, YX51-410-820, YX51-360, YX60-490, YX63-475, YX65-470, YX71-380-760, YX75-605, YX92-337.5-675, YX130-300-600, YX114-300-600, YX114-333-666, etc.
Effective Width	750mm, 760mm, 820mm, 840mm, 875mm, 900mm, 950mm, 960mm, 980mm, 1000mm, 1050mm, 1025mm, etc. 3'ft, 4'ft, 6'ft, 8'ft, 9'ft, 10'ft, 12'ft,etc.
Length	1000-18000mm or as required
Zinc Coat	30-275g/sm
Color Coat	10-35um, 10/15um, 15/25um, or customized.
Color Coat Type	PE (polyester), SMP (silicon modified polyester), HDP (high durability polyester), PVDF (polyvinylidene fluoride), etc.
Color	All Ral Color, or customized pattern.
Tolerance	±1%
Types	Wave shape, Trapzoidal T shape, Angled shape, Glazed tile, Sandwich Panels, etc.
Bundle Weight	3-8 tons or as required
Service Life	20-50 years
Material Grade	DX51D DX52D DX53D DX54D SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD Q235B Q345B Q420C Q460C SS400 SS540 S235 S355 A36 A572 G50 G60
Standard	ASME, ASTM, EN, BS, GB, DIN, JIS JIS G3302, JIS G3313, GB/T2518-88, GB11253-89, ASTM A1008-2000, EN10169, etc.
Application	Industrial and civil buildings, Roof panels of long span steel structure, Interior and exterior wall decoration, etc.
Supply Ability	500 000 tons/month
Logo Printing Service	Available
Sample	Free
Packing	Export standard package or as required waterproof paper+plastic film+iron packing+strip bunding+wooden or steel pallet
Loading Port	Tianjin, Qingdao, Shanghai or Guangzhou.

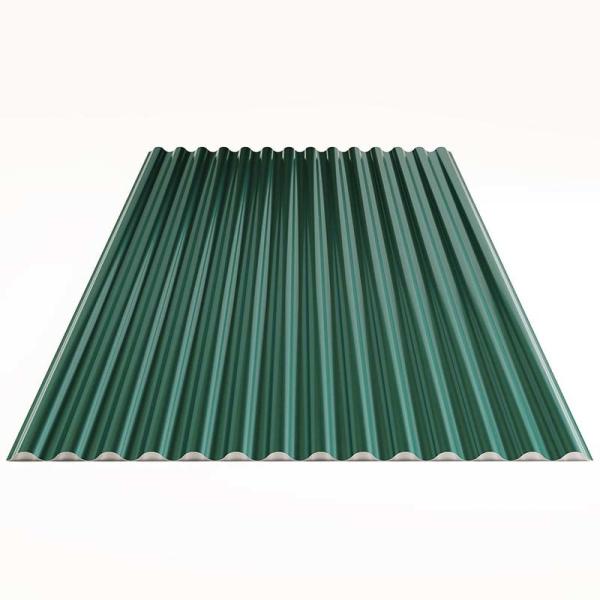

PRODUCT DETAIL DISPLAY OF PPGI COLOR COATED ROOF SHEET
