DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width
Specifications
Brand Name :
Fulilai
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
1000 tons per month
Delivery Time :
15-21days
Packaging Details :
Standard export packing
Name :
PPGL
Width :
5-1850mm
Standard :
AiSi, ASTM, Bs, DIN, GB, JIS
Processing Service :
Bending, Punching, Cutting, Decoiling
Form :
Coils, Strip,Sheet, Etc.
Special Use :
High-strength Steel Plate
Payment :
T/T 30% Advanced, Balance Against BL Copy
Packing :
Standard Seaworthy Packaging
Thickness :
0.15-3.0mm
Tolerance :
±1%
Zinc Coating :
30-150g/m²
Surface :
Color Coated, Wooden Grain Coated, Marble Coated
Technique :
Cold Rolled
Application :
Building Industry, Decoration, Construction
Price Term :
FOB CIF EXW
Delivery :
10-15 Days
Description

DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm-1850mm Width

What is Prepainted Steel?

Color Prepainted Galvanized PPGI Steel Coils is a product made of cold rolled steel plate and galvanized steel plate by surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roll coating), baking and cooling. Coated steel sheet has light weight, beautiful appearance, good corrosion resistance and can be processed directly. It provides a new raw material for construction, shipbuilding, vehicle manufacturing, household electrical appliances, electrical industry, etc. It has played a good role in replacing wood with steel, efficient construction, energy saving, pollution prevention and other good results


DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width

Specification of Pre-Painted Gavalume Steel Coils (PPGL)

Products Name
Prepainted Galvalume Steel Coils
Grade
CGCC,CGCH,G550,DX51D,DX52D,DX53D
Thickness
0.18-2.0mm
Width
600~ 1250mm
Coil Weight
3-8 Tons
Color
All RAL code or as customer's sample
Zinc Coating
30g to 275g/m2
Surface Treatment
Coated/ Prepainted galvanized
Surface coating
PE, SMP,ADP, PVDF
Paint film
Top:15-25 +5um
Black :5-8um
Package
waterproof paper+plastic film+iron packing+bunding, or as customer's requirement
Delivery time
20-45 days after receiving deposit

The color could be customized according to your requirements

DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width

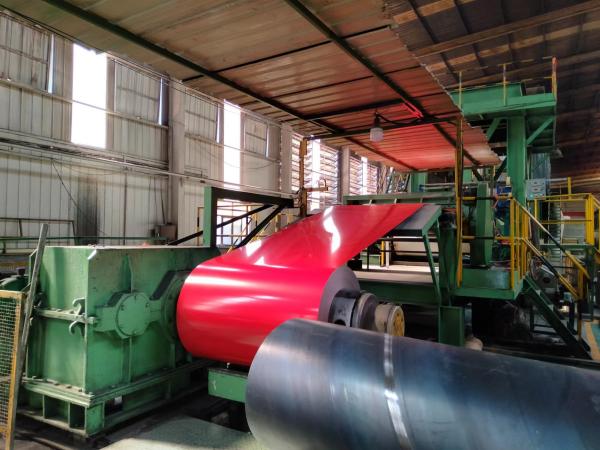

Color Prepainted Galvanized PPGI Steel Coils Poducing process

DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width

Prepainted Galvanized Steel Coil/PPGI coating film introduction

DX51D 0.3mm PPGL Steel Coil Hot Dipped PPGL Color Coated 5mm Width

Top paint film:

RPE, SMP, HDP,PVDF,Other paints.
Function: It functions as a sunlight proof cover, especially prevent the destroy by the ultraviolet rays. When the top paint film reaches a certain thickness, it forms a compact cover, and reduce the water and oxygen permeability.

Primer paint film:
Polyurethane, Epoxy, PE
Function:Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off. There is corrosion inhibitor which is corrosion resistance. Polyurethane is necessary for higher processing flexibility and weather resistance requirements.

Passivation layer
Function:Increase the adhesion between the metallic layer and coating film. Extend life span also.

Metallic coating
Function:The metallic coating provides the fundamental protection for the steel.
The popular coating metal are galvanize, galvalume and other alloyed metals.

Substrate steel
Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.

Back paint film
Epoxy, Modified PE.
Back paint can sustain color in good condition and has good binding.

Prepainted Steel Applications
  • Ceiling Suspension Bars,
  • Factory Building,
  • PPGI Steel Roof Tiles,
  • Roofing, Surface Panel,
  • Rolling Door Shutter,
  • Partitions,
  • Electrical Appliances,
  • Container Wall etc
