Specifications
Brand Name :
TISCO, BAO STEEL
Model Number :
PPGI
Certification :
SGS BV
Place of Origin :
China
MOQ :
5 TONS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10000 Tons per Month
Delivery Time :
8-14 days
Packaging Details :
standard vessel shipping packing
Product name :
PPGI Cold Rolled Prepainted Galvanized Steel Coils
Standard :
AISI,ASTM,BS,DIN,GB,JIS
Material Grade :
DX51D DX52D DX53D SGCC SGCH SGC340 SGC400
Surface Treatment :
Coated
Coating Material :
PE,SMP,HDP,PVDF
Color  :
RAL color or as request
Base Steel :
Hot dip galvanized steel, Hot dip galvalume steel
Top Coating Thickness :
9μm-25μm
Back Coating Thickness :
5μm-10μm
Thickness :
0.3-1.5mm
Width :
500-1350mm
Zinc Coated :
Z80-275 g/m²
Coil Weight :
4-6 tons
Description

DX51D Hot Dipped Prepainted Galvanized Steel Coils

PPGI Steel Coil Parameters

Grade CGCC,CGCH,G550,DX51D,DX52D,DX53D
Thickness 0.12-4.0mm
Width 600-1500mm
Zinc Coating Z40-600 g/m2
Coating Thickness Top-15-35, Back 5-15
Color RAL Color
Surface

Matt,High gloss,Color with two sides,Wrinkle,

Wooden color,Marble

Paint Brand Nippon Akzo Nobel Kcc
Coil Weight 2-5tons
Coil ID 508/610 mm

PPGI Steel Coil Introduction

PPGI is pre-painted galvanized iron, also known as pre-coated steel, zinc coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. PPGI is an industrial steel product with multiple uses. It is a form of galvanized iron that is also dipped into zinc. However, the zinc coat is pre-painted in the factory instead of wait until after the steel is formed. Applying a zinc coat prevents rusting. PPGI is also known as metallic coated steels, or pre-coated steel. This product will typically come in the form of a coil. This steel is often not costly and can last for a long period of time.

The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.

Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.

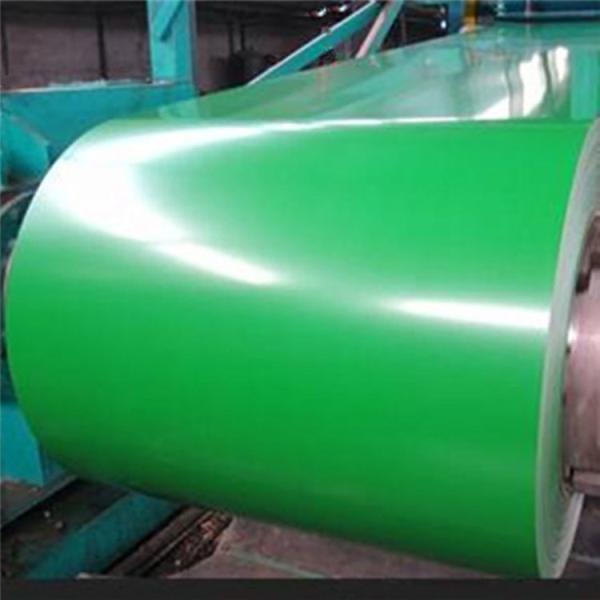

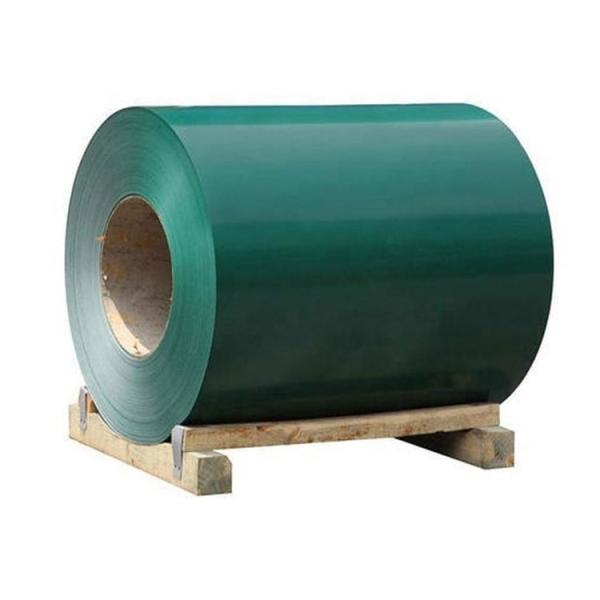

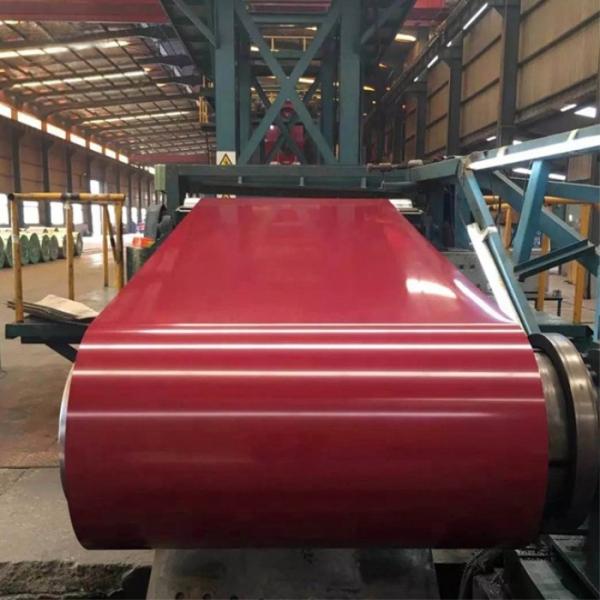

Hot Dipped DX51D Prepainted Galvanized Steel Coil PPGI 0.12-4.0mm

Hot Dipped DX51D Prepainted Galvanized Steel Coil PPGI 0.12-4.0mm

Applications of PPGI Coils

Pre-painted galvanized steel combines utility with beauty. It consists of tin, chrome, zinc or paint, which are the extra finish applied to the natural steel surface. The application of coating is to protect the surface of steel from oxidation and it is also used to enhance requirements for visual appearance.

  • Building
  • Roofing
  • Transport
  • Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
  • Solar Energy
  • Furniture

Packing&Delivery

Packaging Details
PPGI RAL Colored Matte Galvanized Painted Steel Coil Prepainted
3 layers of packing:
Inside is kraft paper,
Middle is water plastic film ,
outside GI steel sheet to be covered by steel strips with lock,
with inner coil sleeve.
