WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed
WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed
WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed
WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed
Specifications
Brand Name :
CISCO
Model Number :
WS-C3650-24TS-S
Place of Origin :
CN/USA/MALAYSIA
MOQ :
1PCS
Payment Terms :
T/T, WU, MoneyGram
Supply Ability :
80pcs/week
Delivery Time :
1-3Days
Packaging Details :
Double packing for protecting the original box
Price :
Negotiable
Model :
WS-C3650-24TS-S
Brand :
CISCO
Stack bandwidth :
160 Gpbs
Switching Capacity :
88 Gbps
RAM :
4G
Flash Memory :
2G
Description

WS-C3650-24TS-S Overview

The Cisco Catalyst 3650 Series Switch, with Cisco StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS-C3650-24TS-L integrates with 24 Ethernet ports and 4 x 1G SFP uplink ports in IP Base feature set.

Quick Specs

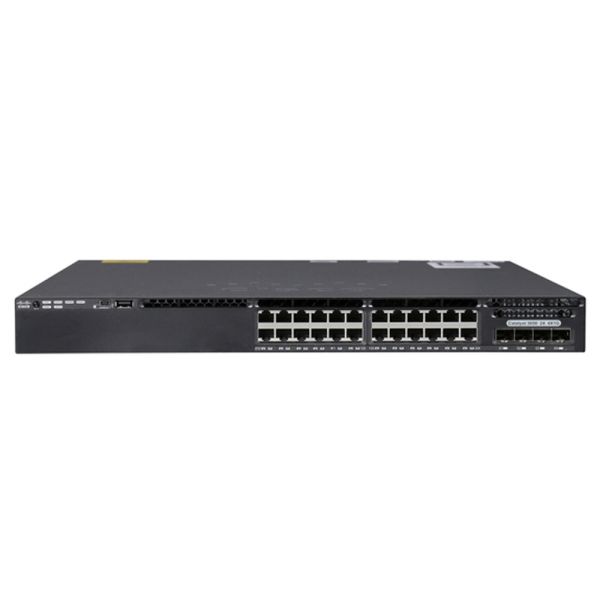

Figure 1 shows the appearance of the Cisco C3650-24TS-S switch.

WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed

Table 1 shows the Quick Specs.

Product Code WS-C3650-24TS-S
Enclosure Type Rack-mountable - 1U
Feature Set IP Base
Uplink Interfaces 4 x 1G SFP
Ports 24 x 10/100/1000 Ethernet ports
Maximum stacking number 9
Stack bandwidth 160 Gpbs
Forwarding Bandwidth 41.66Mpps
Switching Capacity 88 Gbps
RAM 4 G
Flash Memory 2G
Number of AP per switch/stack 25
Number of wireless clients per switch/stack 1000
Dimensions 44.5 cm x 44.5 cm x 4.4 cm
Package Weight 17.49 Kg

Product Details

Figure 2 shows the front panel of the Cisco C3650-24TS-S switch.

WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed

Note:

①Mode button ④USB Type A storage port

②Status LEDs ⑤24 x 10/100/1000 Ports

③USB mini-Type B (console) port ⑥Uplink ports

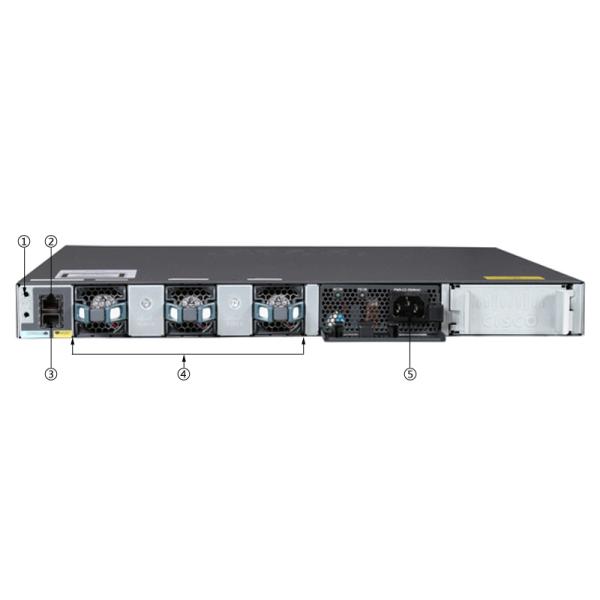

Figure 3 shows the back panel of the Cisco C3650-24TS-S switch.

WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed

Note:

①Ground connector

②CONSOLE (RJ-45 console port)

③MGMT (RJ-45 10/100/1000 management port)

④Fan module

⑤Power supply modules

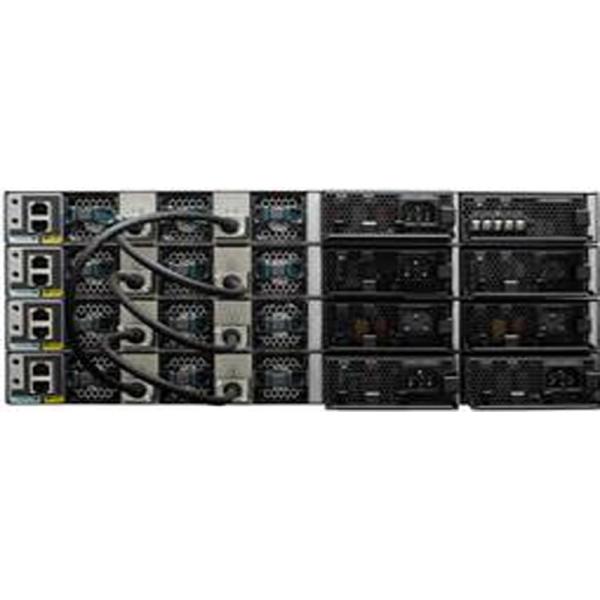

Figure 4 shows the StackWise-160 Kit.

IP base feature set can only stack with other 3650 series in IP base feature set, in order to stack with LAN base feature set, IP base need to configure in LAN base feature set (Stack module purchase separately).

WS-C3650-24TS-S Cisco Catalyst 3650 Switch - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed

The Modules, Licenses and Accessories

Table 2 shows some modules,licenses and accessories of this switch.

Models Description
C3650-STACK-KIT Cisco Catalyst 3650 Stack Module Spare
L-C3650-24-S-E= C3650-24 IP Base to IP Services Electronic RTU License
PWR-C2-1025WAC= 1025W AC Config 2 Secondary Power Supply
PWR-C2-640WDC= 640W DC Config 2 Secondary Power Supply
CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Shipping

Delivery Options Estimated Delivery Time
DHL 2-3WORKING DAYS
FEDEX 2-4WORKING DAYS
TNT 2-5WORKING DAYS

Please note: Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.

Return Material Authorization (RMA) Process

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Payment Methods

Wire Transfer/Money Gram/Western Union
