Model:WS-C3850-24T-L Catalyst 3850 Switch

Detail:Cisco Catalyst 3850 24 Port Data LAN Base

Condition:Brand New Sealed

Availability: In stock

WS-C3850-24T-L Overview

Cisco 3850 series 24 ports LAN Base stackable switch delivers Cisco StackWise-480 technology that supports up to 480 Gpbs stack bandwidth.

Quick Specs

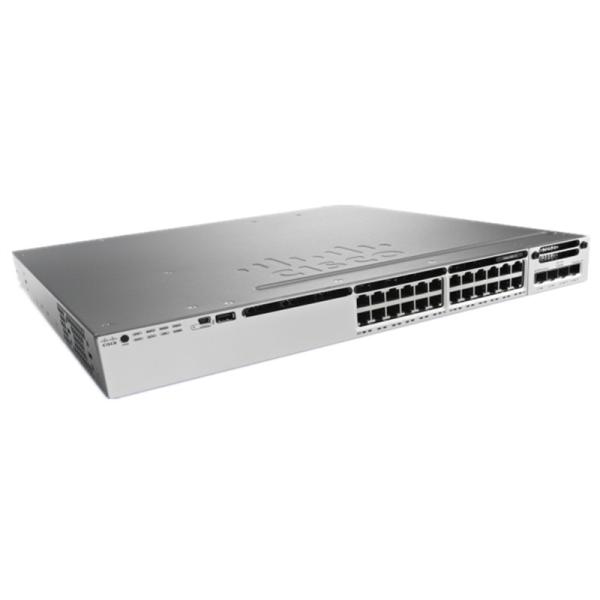

Figure 1 shows the appearance of Cisco WS-C3850-24T-L.

Table 1 shows the Quick Specs.

Product Details

Figure 2 shows the front panel of the Cisco WS-C3850-24T-L with blank network module.

Note:

①Mode button ④USB Type A storage port

②Status LEDs ⑤24 * 10/100/1000 Ethernet ports

③USB mini-Type B (console) port ⑥Network SFP uplink module slot

·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).

·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

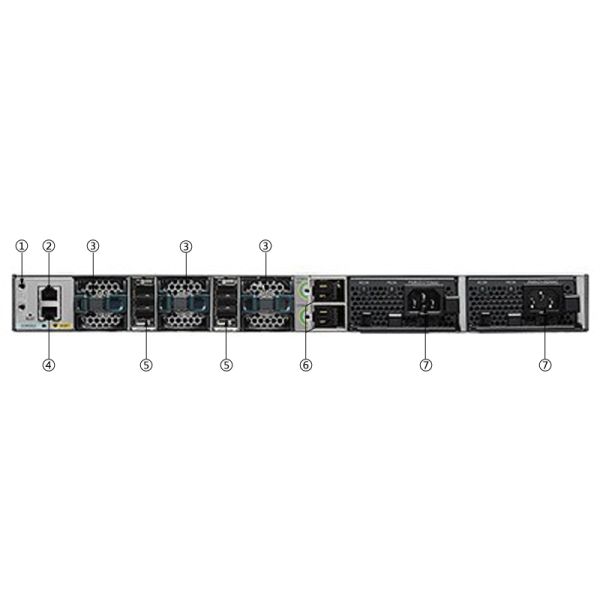

Figure 3 shows the back panel of the Cisco WS-C3850-24T-L.

Note:

①Ground connector ⑤StackWise port connector

②CONSOLE (RJ-45 console port) ⑥StackPower connector

③Fan module ⑦Power supply modules

④MGMT port

Figure 4 shows the StackWise-480 and StackPower connectors.

For the stacking purpose, LAN base switches can only stack with other Catalyst 3850 Series LAN base, mix stack with IP base or IP service feature set is not supported.

The Modules, Licenses and Accessories

Table 2 shows some recommended modules,licenses and accessories of this switch.
