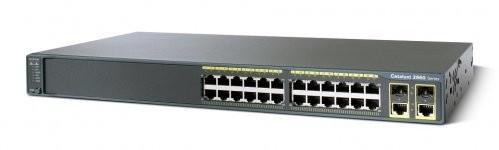

110 V AC Switch Cisco Catalyst 2960 Plus POE RJ - 45 Port WS-C2960+24TC-L
110 V AC Switch Cisco Catalyst 2960 Plus POE RJ - 45 Port WS-C2960+24TC-L
Specifications
Brand Name :
CISCO
Model Number :
WS-C2960+24TC-L
Place of Origin :
CN/USA/MALAYSIA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, WU, MoneyGram
Supply Ability :
80pcs/week
Delivery Time :
1-3Days
Packaging Details :
Double packing for protecting the original box
Input Voltage :
110 V AC
Product Name :
Cisco Catalyst 2960 Switch
Network Ports :
26
Stack Port :
No
Layer Supported :
2
PoE (RJ-45) Port :
Yes
Description

Cisco Catalyst 2960 Switch Plus Network 110 V AC WS-C2960+24TC-L

Model:Cisco Catalyst 2960+24TC-L Ethernet Switch
Detail:Cisco WS-C2960+24TC-L Catalyst 2960 Plus Network Switch
Condition:Brand New Sealed

Availability: In stock

General

Device Type

Switch - 24 ports - managed

Enclosure Type

Rack-mountable - 1U

Subtype

Fast Ethernet

Ports

24 x 10/100 + 2 x combo Gigabit SFP

Performance

Switching capacity : 16 Gbps
Forwarding performance (64-byte packet size) : 6.5 Mpps

Capacity

Active VLANs : 64

Jumbo Frame Support

9018

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP

Authentication Method

RADIUS, TACACS+

Features

Layer 2 switching, auto-sensing per device, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM

128 MB

Flash Memory

64 MB

Status Indicators

Port status, link activity, port transmission speed, port duplex mode, power, system


Expansion / Connectivity

Interfaces

24 x 100Base-TX - RJ-45
2 x - SFP
2 x 1000Base-T - RJ-45


Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector


Miscellaneous

Rack Mounting Kit

Optional

Compliant Standards

FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24


Software / System Requirements

Software Included

Cisco LAN Base software


Dimensions & Weight

Approximate Width

17.7 in

Approximate Depth

9.5 in

Approximate Height

1.7 in

Approximate Weight

7.9 lbs


Environmental Parameters

Min Operating Temperature

23 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 95% (non-condensing)

Min Storage Temperature

-13 °F

Max Storage Temperature

158 °F

Humidity Range Storage

10 - 95% (non-condensing)
