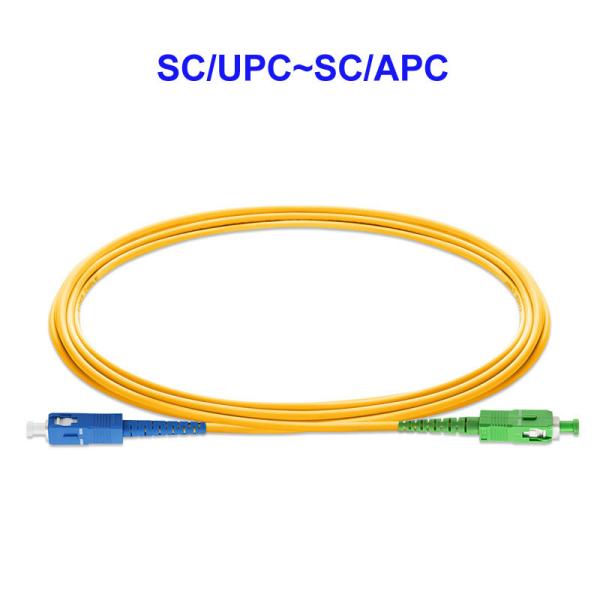

1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
Specifications
Model Number :
SC/APC~SC/APC
Place of Origin :
China
MOQ :
1pcs
Price :
usd0.66/piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
80000pcs/week
Delivery Time :
3-5days
Packaging Details :
Standard Package
Interface model :
SC/UPC~SC/APC
Insertion loss :
≤0.2dB
Mode :
Single Mode
Number of cores :
1 core
Ferrule type :
Class A ceramic ferrule
Outer sheath material :
PVC(default),LSZH,OFNP
Test wavelength :
1310nm~1550nm
Optical fiber specifications :
9/125µm
Cable outer length :
0.9mm,2.0mm(default)3.0mm
Description

SC Fiber Connector SC/UPC~SC/APC Fiber Patch Cables Single Mode 1 Core OS2 LSZH Customize

Interface model:SC/APC~SC/UPC Mode:single-mode
Insertion loss:≤0.3dB Number of cores:SX
Return loss:≥55dB Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB Fiber type:OS2
Tensile strength:45KG Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N Test wavelength:1310nm~1550nm
Mating times:≥1000times Cable outer length:0.9mm,2.0mm(default)3.0mm
Minimum bending radius:38mm Optical fiber specifications:9/125µm

1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core

1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core

1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core

1310nm SC/UPC~SC/APC Fiber Patch Cables Single Mode OS2 LSZH 1 Core
