10 Gbps Base Gigabit Optical Transceiver Network SFP Module Cisco X2-10GB-LRM=
10 Gbps Base Gigabit Optical Transceiver Network SFP Module Cisco X2-10GB-LRM=
10 Gbps Base Gigabit Optical Transceiver Network SFP Module Cisco X2-10GB-LRM=
10 Gbps Base Gigabit Optical Transceiver Network SFP Module Cisco X2-10GB-LRM=
Specifications
Brand Name :
CISCO
Model Number :
X2-10GB-LRM=
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$179/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200/unit/day
Delivery Time :
3 days
Packaging Details :
Original New Cisco Box Packing
Description :
Cisco X2 - X2 transceiver module - 10 Gbps
Device Type :
X2 transceiver module - SC/PC
Manufacturer Part :
X2-10GB-LRM=
Products Status :
In Stock
Warranty :
1 year warranty
Cabling Type :
10GBase-LRM
Data Link Protocol :
10 Gigabit Ethernet
Dimensions (WxDxH) :
1.4 in x 3.6 in x 0.5 in
Description

Cisco 10 Gbps Base Gigabit Optical Transceiver SFP Module X2-10GB-LRM=

Product Information

Cisco X2-10GB-LRM

The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3.

Cisco 10GBASE X2 modules include:

● Support 10GBASE Ethernet

● Hot-swappable input/output device plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network

● Provides flexibility of interface choice

● Supports “pay-as-you-populate” model

● Supports the Cisco quality identification (ID) feature that enables a Cisco switch or router to identify whether the module is certified and tested by Cisco

● Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link

Manufacturer Cisco
Manufacturer Part X2-10GB-LRM=
Product Description Cisco X2 - X2 transceiver module - 10 Gbps
Device Type X2 transceiver module - SC/PC
Form Factor Plug-in module
Cabling Type 10GBase-LRM
Data Transfer Rate 10 Gbps
Optical Wave Length 1310 nm
Data Link Protocol 10 Gigabit Ethernet
Max Transfer Distance 980 ft
Weight 10.6 oz
Manufacturer Warranty 90 days warranty
Designed For Cisco 8-Port 10; Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 4500, 4948 10; ME 4924-10GE; Supervisor Engine II-Plus-10GE
Device Type X2 transceiver module
Form Factor Plug-in module
Connectivity Technology Wired
Compliant Standards IEEE 802.3aq
Interfaces 1 x Ethernet 10GBase-LRM - SC/PC x 2
Compatible Slots 1 x X2
Compliant Standards Laser Class 1, IEC 60825-1
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Designed For Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL
Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 4500 Series Supervisor Engine V-10GE, 4948 10 Gigabit Ethernet Switch
Cisco ME 4924-10GE
Cisco Supervisor Engine II-Plus-10GE

Ordering Cisco X2 and Respective Cables

Description Product Number
Cisco 10GBASE-LR X2 Module for SMF X2-10GB-LR
Cisco 10GBASE-CX4 X2 Module for CX4 (copper) cable X2-10GB-CX4
Cisco 10GBASE-SR X2 Module for MMF X2-10GB-SR
Cisco 10GBASE-LRM X2 Module for MMF X2-10GB-LRM
Cisco 10GBASE-LX4 X2 Module for MMF X2-10GB-LX4
Cisco 10GBASE-ER X2 Module for SMF X2-10GB-ER
Cisco 10GBASE-ZR X2 Module for SMF X2-10GB-ZR
Cisco 10GBASE-T X2 Module for CAT6A/CAT7 copper cable X2-10GB-T

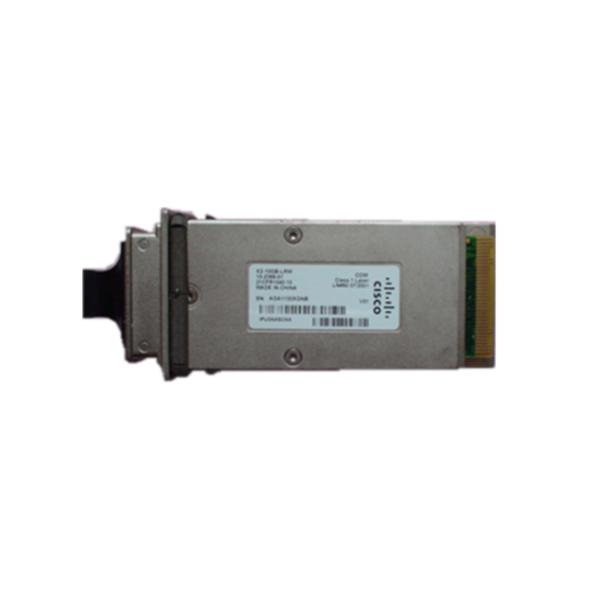

Figure 1 shows the appearance of X2-10GB-LRM=.

10 Gbps Base Gigabit Optical Transceiver Network SFP Module Cisco X2-10GB-LRM=

Table 2. Optical Transmit and Receive Specifications

Product Type Transmit Power (dBm)* Receive Power (dBm)* Transmit and Receive Wavelength Range (nm)
Maximum Minimum Maximum Minimum Transmit Receive
Cisco X2-10GB-SR 10GBASE-SR 850 nm MMF -1** -7.3 -1 -9.9 840 to 860
Cisco X2-10GB-LRM 10GBASE-LRM 1310 nm MMF and SMF 0.5 -6.5 0.5 -8.4 (in average) 1260 to 1355
and -6.5 (in OMA)***
Cisco X2-10GB-LX4 10GBASE-LX4 WWDM 1300 nm MMF -0.5 per lane -6.75 per lane in OMA -0.5 per lane -14.25 per lane in OMA Four lanes; overall range: 1269 to 1356
Cisco X2-10GB-LR 10GBASE-LR 1310 nm SMF 0.5 -8.2 0.5 -14.4 1260 to 1355 1260 to 1565****
Cisco X2-10GB-ER 10GBASE-ER 1550 nm SMF 4 -4.7 -1 -15.8 1530 to 1565 1260 to 1565****

Our Advantage

1.100% Cisco original factory sealed clean serial.
2. Extensive Real Inventory
3. Save up 50%-92% off the Global Price list
4. Flexible payment shipment
5. Unparalleled Experience Service

Shipping

1. Fast: in 2-3 days upon receipt of payment.
2. Safe: original package with protection foam in case of equipment broken in transportation
3. Economic: Low cost express fee via DHL, Fedex, TNT,EMS,Postal etc.
4. Flexible: We also ship to your Assigned Forwarder or Pickup by your forwarder
