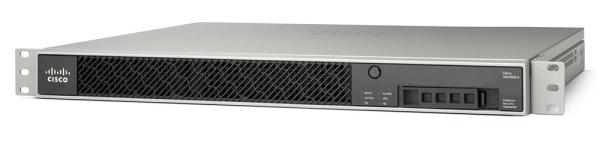

8 Copper Ge Ports Cisco Firewall Series ASA5525-FPWR-K9 Cisco ASA 5525

ASA5525-FPWR-K9 firewall is the entry-level next-generation firewall system. It is designed for big-size enterprise. The next-generation firewall combines with FirePower services which offers greater visibiltiy and automation with superior response to protect the network.

it offers the industry’s first adaptive threat focus next-generation firewall which includes SourceFires next-generation Intrusion Prevention System or engine IPS and advanced Malware capabilities, this comprehensive next-generation solution lowers costs in simplifies complexity. Cisco's integrated approach correlated threats with vulnerabilities to determine their impact.

Table 1 shows the Quick Specs.

Install an I/O Card in the Cisco ASA 5512-X, 5515-X, and 5525-X Chassis

To remove an existing I/O card and install a new one, perform the following steps.
Procedure
1. Power off the chassis, remove the power cable from the chassis, and remove the chassis from the rack.
2. Locate a grounding strap, and fasten it to your wrist so that it contacts bare skin. Attach the other end to the chassis. See the “Preventing Electrostatic Discharge Damage” section for more information.
3. With a Phillips head screwdriver, loosen the captive installation screw on the rear of the chassis.
4. Remove the chassis cover by placing your hand on top of the chassis lid, pressing down firmly, and pushing the cover toward the rear of the chassis.
5. Determine the location of the I/O card. (See Figure 1.) If you are adding a new card to the expansion slot for the first time, go to 9.

Figure 1 I/O Card Location

Caution : You must disconnect the blue Regex flexible circuit connector from the motherboard before removing the I/O card from the chassis. The copper-colored Regex flexible circuit can break during the I/O card removal or installation process, so handle it with care.
