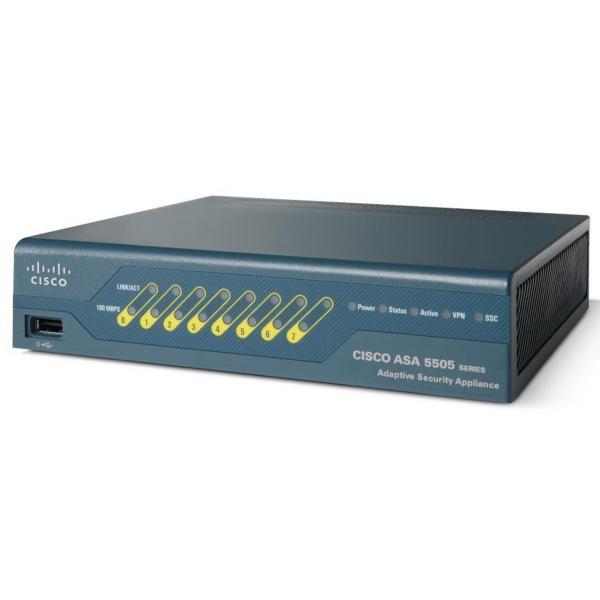

Cisco ASA 5505 Series Network Firewall ASA5505-SEC-BUN-K9 With SW, UL Users

Description:ASA 5505 Sec Plus Appliance with SW, UL Users, HA, 3DES/AES.

The Cisco ASA 5500 Series brings a new level of integrated security performance to networks with its highly effective IPS services and multiprocessor hardware architecture.

This architecture allows businesses to adapt and extend the high-performance security services profile of the Cisco ASA 5500 Series. Customers can add additional high-performance services using security services modules with dedicated security co-processors, and can custom-tailor flow-specific policies using a highly flexible policy framework.

This adaptable architecture enables businesses to deploy new security services when and where they are needed, such as adding the broad range of intrusion prevention and advanced anti-worm services delivered by the IPS modules via IPS SSP, AIP SSM and AIP SSC, or the comprehensive malware protection and content security services enabled by the CSC SSM. Further, the architecture allows Cisco to introduce new services to address new threats, giving businesses outstanding investment protection for the Cisco ASA 5500 Series.

Quick Specs

Table 1 shows the Quick Specs.

Connecting the Interface Cables

This section describes how to connect the cables to the Ethernet and Console ports.

Warning Only trained and qualified personnel should install, replace, or service this equipment. Statement 49

Caution Read the safety warnings in the Regulatory Compliance and Safety Information for the Cisco ASA 5505 Adaptive Security Appliance and follow proper safety procedures when performing these steps.

To connect cables to the ports perform the following steps:

Step 1 Place the chassis on a flat, stable surface.

Step 2 Before connecting a computer or terminal to the ports, check to determine the baud rate of the serial port. The baud rate must match the default baud rate (9600 baud) of the Console port of the adaptive security appliance. Set up the terminal as follows: 9600 baud (default), 8 data bits, no parity, 1 stop bits, and Flow Control (FC) = Hardware

.

Step 3 Connect the cables to the ports.

a. Ethernet ports

Step 1 Connect Port 0, the outside Ethernet port, to the public network, that is, the Internet:

Note By default, switch port 0/0 is the outside port. If needed you can change the inside and outside ports assignments later.

Step 2 Connect your network devices with an Ethernet cable to one of the inside ports (numbered 1 through 7).

If you are connecting any PoE devices, connect them to one of the switch ports that support PoE (ports numbered 6 and 7).

Step 3 Check the LINK LED to verify that the network devices have basic connectivity to the Cisco ASA 5505 on one of the inside ports (numbered 0 through 7). When connectivity is established, the LINK LED on the front panel of the Cisco ASA 5505 lights up solid green.

Figure 2 Connecting Cables to Network Interfaces

Step 4 Connect the power cord to the adaptive security appliance and plug the other end to the power source. For information on powering on the chassis, see the “Powering on the Cisco ASA 5505” section
