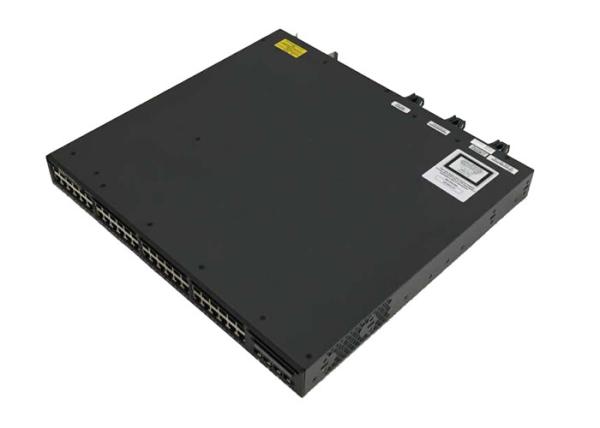

WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
Specifications
Brand Name :
CISCO
Model Number :
WS-C3650-48PQ-L
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$2525/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50/unit/day
Delivery Time :
3 days
Packaging Details :
58*55*25cm
Product Name :
Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
PoE Ports :
1-48 Port Support PoE
Switch Type :
Gigabit Switchs
Products Status :
In Stock
Communication :
Full-Duplex&Half-Duplex
Maximum stacking number :
9
Warranty :
1 year warranty
Uplink ports :
4 x10G
Description

WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base

Cisco Catalyst WS-C3650-48PQ-L is next generation of enterprise-level stackable access layer switch and integrates with 48 Gigabit Ethernet POE+ and 4x10G Uplink ports in LAN Base feature set.

Table 1 shows the Quick Specs.

Product Code

WS-C3650-48PQ-L

Enclosure Type

Rack-mountable - 1U

Feature Set

LAN Base

Uplink Interfaces

4 x 10G SFP+ uplinks

Ports

48 x 10/100/1000 POE+ Ethernet ports

Available PoE Power

390W

Maximum stacking number

9

Stack bandwidth

160Gbps

Forwarding Performance

130.95Mpps

Switching Capacity

176Gbps

RAM

4 GB

Flash Memory

2 GB

Number of AP per switch/stack

25

Number of wireless clients per switch/stack

1000

Dimensions

44.5 x 48.6 x 4.4 cm

Package Weight

17.49 Kg

WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base



Figure 2 shows the front panel of WS-C3650-48PQ-L


Note:

　

　

　

①

Mode button

④

USB Type A storage port

②

Status LEDs

⑤

48 x 10/100/1000 Ports POE+

③

USB mini-Type B (console) port

⑥

Uplink ports

Figure 3 shows the back panel of WS-C3650-48PQ-L


Note:

　

　

　

①

Ground connector

④

Fan module

②

CONSOLE (RJ-45 console port)

⑤

Power supply modules slots

③

MGMT (RJ-45 10/100/1000 management port)

⑥

Stacking modules slots

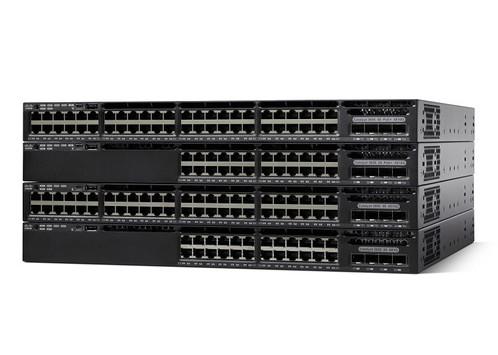

Figure 4 shows the StackWise-160


The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management with a single IP address.

For stacking purpose, stack module is required and LAN base feature set can only stack with other 3650 series in LAN feature set. LAN base feature supports 255 VLANs in max with inactive Flexible Netflow features and wireless controller functionality. To activate wireless controller and Flexiable Netflow features, update to IP base image is necessary.




Table 2 shows some recommended modules, licenses and accessories of this switch.

C3650-STACK-KIT=

Cisco Catalyst 3650 Stack Module spare

L-C3650-48-L-S

Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License

L-C3650-48-S-E

Cisco Catalyst 3650 48-port Switch IP Base to IP Services Electronic RTU License

STACK-T2-1M=

Cisco StackWise-160 1M Stacking Cable Spare

STACK-T2-3M=

Cisco StackWise-160 3M Stacking Cable Spare

PWR-C2-640WAC=

640 WAC power supply spare

PWR-C2-1025WAC=

1025 WAC power supply spare

Package & Delivery

Selling Units Single item
Package Type CISCO F/S NIB original sealed box inside , and another blank carton box to protect it from broken
Shipment Ship Via UPS, DHL, EMS, FEDEX, TNT,EMS, POSTAL etc or other options by clients
Lead Time Fast transportation time within 48 hours after payment confirm
Quantity (Piece) <30 31 - 100 >100
Est. Time (day) 2 3 To be negotiated

WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base

Why Choose US

Warranty 1 Year warranty from professional cisco agents
Service 24 Hours online service
Quality 100% Original Cisco Sealing Products from Cisco Factory.
Price Competitive Price with a big Discount from china mainland
Advantages Cisco China Agents
Providing constructive suggestions for solutions and installations.

WS-C3650-48PQ-L Cisco 3650 Gigabit 48 Port PoE Switch Lan Base
