Commercial 48 Port Managed Gigabit Ethernet Switch WS-C2960+48TC-S 2960 Plus Series
Commercial 48 Port Managed Gigabit Ethernet Switch WS-C2960+48TC-S 2960 Plus Series
Commercial 48 Port Managed Gigabit Ethernet Switch WS-C2960+48TC-S 2960 Plus Series
Commercial 48 Port Managed Gigabit Ethernet Switch WS-C2960+48TC-S 2960 Plus Series
Specifications
Brand Name :
CISCO
Model Number :
WS-C2960+48TC-S
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$585/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30/unit/day
Delivery Time :
3 days
Packaging Details :
Original New Cisco Box Packing
Uplink Interfaces :
2 (SFP or 1000BASE-T)
Ports :
48X10/100Mbps
Device Type :
Switch - 48 ports - Managed
Products Status :
In Stock
Weight :
3.6 Kg
Cisco IOS Software Feature Set :
LAN Lite
Subtype :
Gigabit Ethernet
Switch Capacity :
16Gbps
Description

2960 Plus Series Managed Network Switch Cisco 48 Port SFP WS-C2960+48TC-S

Product Information

WS- C2960+48TC-S is one of the Cisco Catalyst 2960 Series switches.

The Common Features are included: Enhanced security including Cisco TrustSec for providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, Scalable network management.


WS-C2960+48TC-S

• 48 10/100 Fast Ethernet ports

• Small Form-Factor Pluggable (SFP) and 1000BASE-T Gigabit Ethernet uplinks

• IEEE 802.3af-compliant Power over Ethernet (PoE)

• LAN Base or LAN Lite Cisco IOS Software feature set

• SmartOperations tools that simplify deployment and reduce the cost of network administration

• Cisco EnergyWise technology to manage energy consumed by connected devices

• An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement

Device Type Switch - 48 ports - Managed
Enclosure Type Rack-mountable 1U
Subtype Fast Ethernet
Ports 48 x 10/100 + 2 x combo Gigabit SFP
Performance Switching capacity : 16 Gbps
Forwarding performance (64-byte packet size) : 10.1 Mpps
Capacity Active VLANs : 64
Jumbo Frame Support 9018 bytes
Routing Protocol IGMPv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Features Layer 2 switching, DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, full duplex mode, Spanning Tree Protocol (STP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Shaped Round Robin (SRR), LLDP support, DHCP relay, Port Security, Management Information Base (MIB), Class of Service (CoS), FTP client, DiffServ Code Point (DSCP) support, IGMP filtering, Storm Control, IP source guard, Weighted Tail Drop (WTD)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 45 cm x 24.2 cm x 4.4 cm
Weight 10.0 kgs

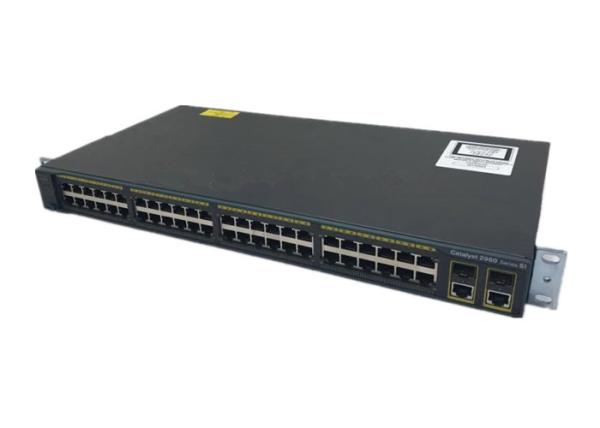

Show the appearance

Commercial 48 Port Managed Gigabit Ethernet Switch WS-C2960+48TC-S 2960 Plus Series

Table 2 Specification

WS-C2960+48TC-S Specification
Configurations
10/100 Ethernet Interfaces 48
Uplink Interfaces 2 (SFP or 1000BASE-T)
Cisco IOS Software Feature Set LAN Lite
Available PoE Power None
Hardware
Flash memory 64 MB
DRAM 128 MB
Performance and Scalability
Forwarding bandwidth 16 Gbps
Maximum active VLANs 64
VLAN IDs available 4K
Maximum transmission unit (MTU) - L3 packet 9000 bytes
Jumbo frame - Ethernet frame 9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second 10.1
Connectors and Interfaces
Ethernet Interfaces
  • 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
  • 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
  • 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
  • 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs
  • Per-port status: Link integrity, disabled, activity, speed, and full duplex
  • System status, Port Status, RPS, link duplex, and link speed
Power
  • The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
  • Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
  • The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
  • Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.

Table 3 Warranty Terms

Cisco Enhanced Limited Lifetime Hardware Warranty
Device covered Applies to all Cisco Catalyst 2960-Plus Series Switches.
Warranty duration As long as the original end user continues to own or use the product.
End-of-life policy In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance.
Effective date Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than ninety [90] days after original shipment by Cisco).
Cisco.com access Warranty allows guest access only to Cisco.com.

Our Advantage

1.100% Cisco original factory sealed clean serial.
2. Extensive Real Inventory
3. Save up 50%-92% off the Global Price list
4. Flexible payment shipment
5. Unparalleled Experience Service


Shipping


1. Fast: in 2-3 days upon receipt of payment.
2. Safe: original package with protection foam in case of equipment broken in transportation
3. Economic: Low cost express fee via DHL, Fedex, TNT,EMS,Postal etc.
4. Flexible: We also ship to your Assigned Forwarder or Pickup by your forwarder
