100 WATT Cisco 3750x Power Supply C3KX-PWR-1100WAC 3.5 X 29.8 X 8.3 Cm
100 WATT Cisco 3750x Power Supply C3KX-PWR-1100WAC 3.5 X 29.8 X 8.3 Cm
100 WATT Cisco 3750x Power Supply C3KX-PWR-1100WAC 3.5 X 29.8 X 8.3 Cm
100 WATT Cisco 3750x Power Supply C3KX-PWR-1100WAC 3.5 X 29.8 X 8.3 Cm
Specifications
Brand Name :
CISCO
Model Number :
C3KX-PWR-1100WAC
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$414/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30/unit/day
Delivery Time :
3 days
Packaging Details :
Original New Cisco Box Packing
Maximum output power :
1100 W
Weight :
1.4 kg
Dimensions :
3.5 x 29.8 x 8.3 cm
Description :
Catalyst 3K-X 1100W AC Power Supply
Warranty :
1 year
Product Status :
In stock
Input voltage range and frequency :
1100-W, 115 to 240 VAC 50 to 60 Hz
Input Voltage :
AC 115-240 V
Description


Cisco Power Supply 1100WATT AC Power Supply for 3750X Switch C3KX-PWR-1100WAC

Product Information

Cisco Catalyst 3560-X Series Power Supply - C3KX-PWR-350WAC Catalyst 3K-X 350W AC Power Supply for Cisco 3560X.

Cisco announces the end-of-sale and end-of-life dates for the Cisco Catalyst 3560-X and 3750-X Power Supplies, Cables, and Other Accessories.

Table 1 Quick Spec.

Manufacturer Cisco
Manufacturer Part CISCO C3KX-PWR-1100WAC=
Manufacturer UPC 8.82658E+11
Cost Central Item 11148446
Product Description Cisco - Power supply - hot-plug / redundant ( plug-in module ) - AC 115-240 V - 1100 Watt - for Catalyst 3560X-24, 3560X-48
Device Type Power supply - hot-plug / redundant - plug-in module
Approximate Weight 3.5 lbs
Input Voltage AC 115-240 V
Output Voltage -56 V
Power Capacity 1100 Watt
Approximate Dimensions (WxDxH) 3.3 in x 13.3 in x 1.6 in
Designed For Catalyst 3560X-24P-L, 3560X-24P-S, 3560X-24T-L, 3560X-24T-S, 3560X-48PF-L, 3560X-48PF-S, 3560X-48P-L, 3560X-48P-S, 3560X-48T-L, 3560X-48T-S
Input Voltage AC 115-240 V
Frequency Required 50 - 60 Hz
Input Connector(s) Power IEC 320 EN 60320 C14
Power Capacity 1100 Watt

Table 2 show the details of C3KX-PWR-1100WAC.

Power Specifications
Maximum output power C3KX-PWR-440WDC, PWR-C1-440WDC: 440 W
Input current C3KX-PWR-440WDC, PWR-C1-440WDC: 16 - 8 A
DC input voltage C3KX-PWR-440WDC, PWR-C1-440WDC: -36 to -72 VDC
Output ratings C3KX-PWR-440WDC, PWR-C1-440WDC: -56 V@7.86 A
Voltage range domestic C3KX-PWR-440WDC, PWR-C1-440WDC: -36 VDC (minimum) -48 VDC (nominal), -72 VDC (maximum)
Voltage range international C3KX-PWR-440WDC, PWR-C1-440WDC: -36 VDC (minimum) -60 VDC (nominal), -72 VDC (maximum)

Total input BTU1

 C3KX-PWR-440WDC, PWR-C1-440WDC: 1841 Btus per hour, 540 W
Total output BTU1 C3KX-PWR-440WDC, PWR-C1-440WDC: 1502 Btus per hour, 440 W
Wire gauge for ground connection C3KX-PWR-440WDC, PWR-C1-440WDC: 12 AWG or 8 AWG
Branch circuit protection C3KX-PWR-440WDC, PWR-C1-440WDC: 20 A


Table 3 Environmental Ranges of C3KX-PWR-1100WAC.

Operating1 temperature 23 to 113° F (-5 to 45° C)
Operating1 temperature with FIPS kit installed 23 to 104° F (-5 to 40° C)
Storage temperature -13 to 158° F (-25 to 70° C)
Relative humidity 10 to 85% (noncondensing)
Operating altitude Up to 10,000 ft (3049 m)
Storage altitude Up to 15,000 ft (4573 m), NEBS up to 13,000 ft (4000 m)

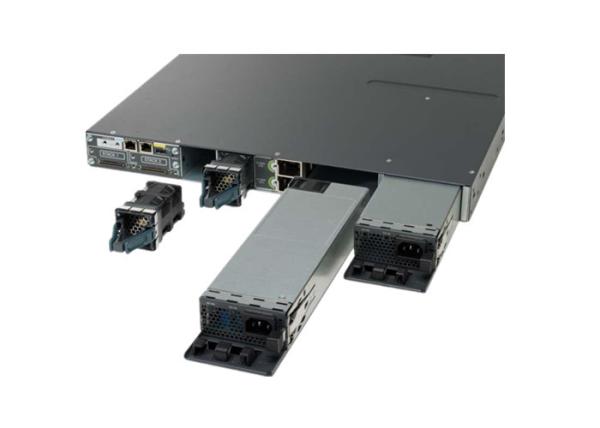

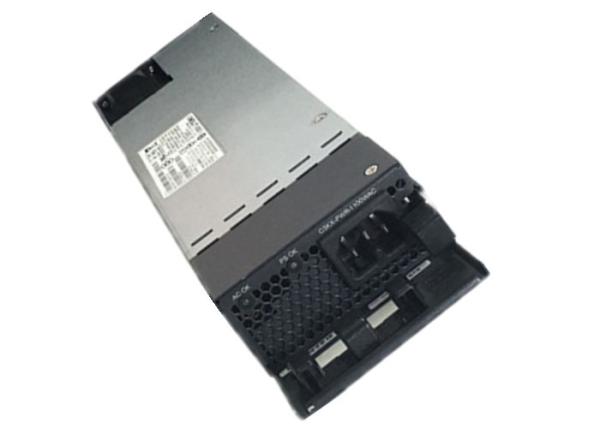

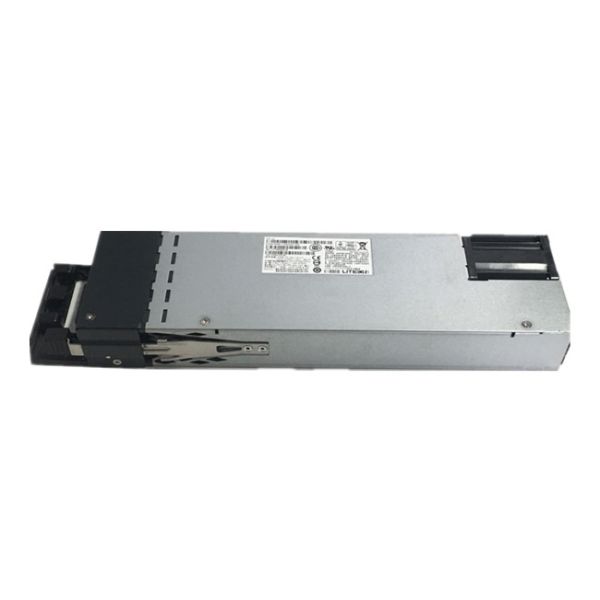

Show the appearance of C3KX-PWR-1100WAC.
100 WATT Cisco 3750x Power Supply C3KX-PWR-1100WAC 3.5 X 29.8 X 8.3 Cm
Our Advantage

1.100% Cisco original factory sealed clean serial.
2. Extensive Real Inventory
3. Save up 50%-92% off the Global Price list
4. Flexible payment shipment
5. Unparalleled Experience Service

Shipping

1. Fast: in 2-3 days upon receipt of payment.
2. Safe: original package with protection foam in case of equipment broken in transportation
3. Economic: Low cost express fee via DHL, Fedex, TNT,EMS,Postal etc.
4. Flexible: We also ship to your Assigned Forwarder or Pickup by your forwarder
