Plug In Module Cisco Asr 1000 Series Aggregation Services Routers ASR1000-RP1
Plug In Module Cisco Asr 1000 Series Aggregation Services Routers ASR1000-RP1
Specifications
Brand Name :
CISCO
Model Number :
ASR1000-RP1
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$2550/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30/unit/day
Delivery Time :
3 day
Packaging Details :
Original New Cisco Box Packing
Product Name :
ASR1000-RP1
Products Status :
In Stock
Warranty :
1 year
Enclosure Type :
Plug-in module
Type :
Wired
Application :
Enterprise
Description

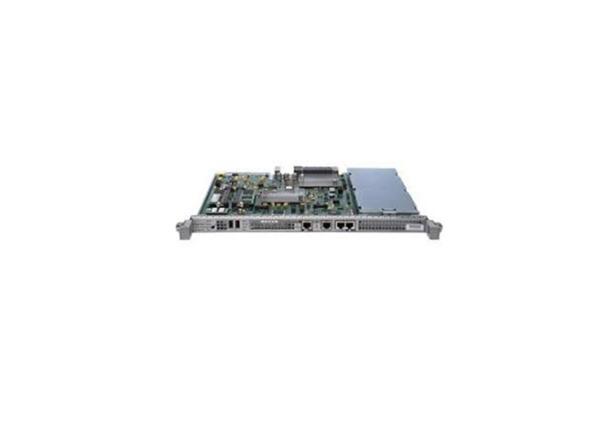

Original Gigabit Router Module ASR1000-RP1 Cisco ASR1000 Series

Product Information

The Cisco ASR 1000 Series Route Processors address the stringent route-processing requirements of carrier-grade IP and Multiprotocol Label Switching (MPLS) packet network infrastructures. They are the central control processors that run the network operating system, provide advanced routing capabilities, and also monitor and manage the other components of the Cisco ASR 1000 Series Aggregation Services Router.

Device Type Router
Enclosure Type Plug-in module
Feature VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN
Capacity IPv4 routes : 1000000
IPv6 routes : 250000
Dimensions (WxDxH) 42.8 cm x 36 cm x 2 cm
Designed For ASR 1004, 1006

More Details

Table below shows more informations.

Performance
Up to 25 Mpps
Variable forwarding performance, depending on features configured
Bandwidth
Up to 40 Gbps
For the combination of commonly used features + Firewall or NAT
Shared by all Cisco ASR 1000 SIP (ASR1000-SIP10 or ASR1000-SIP40) cards
Up to 12.9 Gbps
For plain IPsec encryption (1400-byte packets)
Scaling
Access control
Up to 4,000 unique ACLs and 100,000 ACEs per system
Broadband
Up to 64,000 sessions and 16,000 L2TP tunnels
IP
Up to:
● 4,000,000 IPv4 or 4,000,000 IPv6 routes
Multicast: 100,000 routes and 4,000 groups
QoS
Flexible number of queues per system:
● Up to 128,000 queues
● Three levels of hierarchy
8-kbps policing and queuing granularity
<100-microsecond latency for high-priority applications

Related Products

Table below describes features and benefits of the Cisco ASR 1000 Series RP1, RP2, RP3, and built-in RP of the ASR 1001, 1001-X, 1002, 1002-F, and 1002-X.

Feature Description
Support for Cisco IOS XE Software Supports a breadth of IP network services, including quality of service (QoS), MPLS, Layer 2 virtual private network (L2VPN), Layer 3 virtual private network (L3VPN), Application Visibility and Control, Performance Routing (PfR), AppNav infrastructure, Data Center Interconnect, Crypto and IPv6
High availability Provides optional redundant-processor support and dual Cisco IOS Software support for single-route- processor solutions for a highly compact, fully redundant, high-availability solution
Stratum-3 clock circuitry and BITS input ports Facilitates support of clocking for synchronous services such as SONET and SDH. BITS input ports are available on RP1, RP2 and ASR1002-X only.
Memory scalability of up to 16 GB up to 64 GB for RP3 Allows pay-as-you-grow scalability so memory can increase as you add more users or features; the scalability offered through memory upgrades includes:
Routing-table growth
Additional MPLS VPN routing and forwarding instances
Feature additions such as SBC and broadband aggregation (BBA)
Solid state drive support Allows for greater storage area for code storage, boot, configurations, billing, logs, etc.
USB compact flash support Allows for easier manageability for code storage, boot, configurations, logs, etc.
Modularity Offers maximum investment protection and flexibility by allowing customers to upgrade to future Cisco ASR1000 Series Route Processors
Note: Cisco ASR 1002,and ASR1002-F have an integrated RP1 built into the chassis that is not upgradable.
Note: Cisco ASR 1001, ASR 1001-X, and ASR 1002-X (part numbers ASR 1001, ASR 1001-X, ASR 1002-X) have an integrated RP2 built in to the chassis that is not upgradable.
